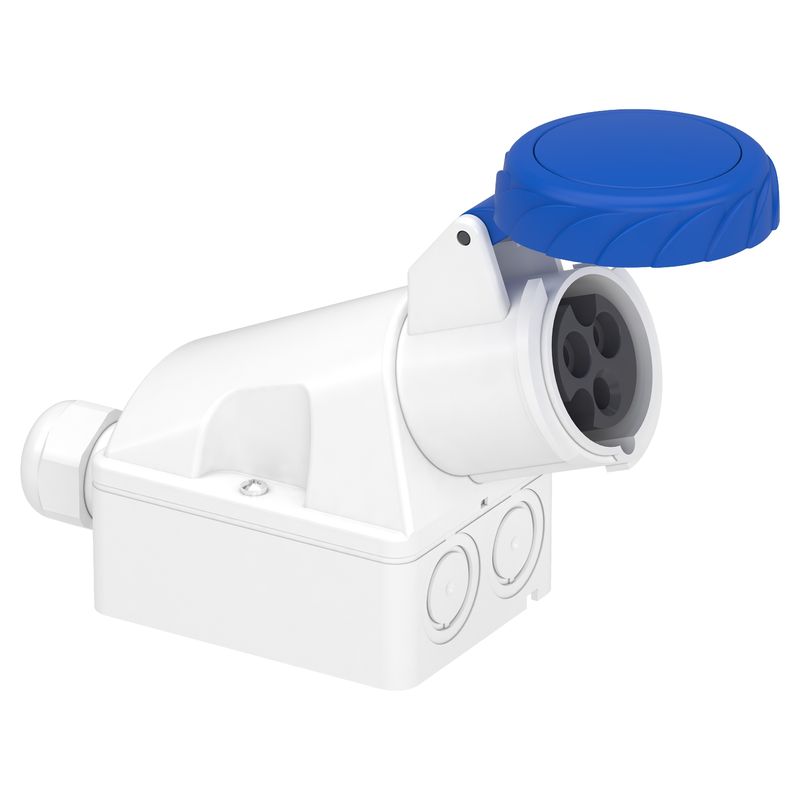

83154 | SOCKET WALL MOUNT 16A 2P-E 200-250V IP67 – Schneider Electric

Name: 83154 - PratiKa industrial socket - 16 A - 2P + E - 200...250 V AC - IP67 | Schneider Electric
Brand: Schneider Electric
SKU: 83154
Price: 3047.76 INR
Availability: BackOrder

SKU: 83154

Original price was: ₹5,644.00.Current price is: ₹3,047.76. Excl. GST

Dispatch By : 7 Weeks

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	Mureva
Product or component type	Socket
Device short name	Mureva socket
Plug, socket category	Low voltage
Poles description	2P + E
Network type	AC
Outlet standard	Industrial
Complementary
Mounting mode	Wall-mounted
Plug, socket, control station shape	Angled
[In] rated current	16 A
[Ue] rated operational voltage	200…250 V
Network frequency	50/60 Hz
Ground lug clockwise position	6 h
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Pins: stainless steel Sleeves: nickel plated brass Springs: stainless steel
Connections – terminals	Captive screws, completely loosened
Cable cross section	1…4 mm²
Cable outer diameter	8…15 mm
cable entry	Cable gland
Thread type	Pg 16
Net weight	0.324 kg
Base dimension	80 x 100 mm
Height	155 mm
Width	80 mm
Depth	126 mm
Colour	Grey (RAL 7035)
Voltage colour	Blue
Environment
Standards	EN 60309-2 EN 60309-1
IP degree of protection	IP67 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
Fire resistance	850 °C conforming to IEC 60695-2-11
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s )
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	12.500 cm
Package 1 Width	8.000 cm
Package 1 Length	15.000 cm
Package 1 Weight	277.600 g
Unit Type of Package 2	BB1
Number of Units in Package 2	4
Package 2 Height	17.000 cm
Package 2 Width	26.000 cm
Package 2 Length	27.000 cm
Package 2 Weight	1.243 kg
Unit Type of Package 3	S03
Number of Units in Package 3	8
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	2.621 kg
Contractual warranty
Warranty (in months)	18
