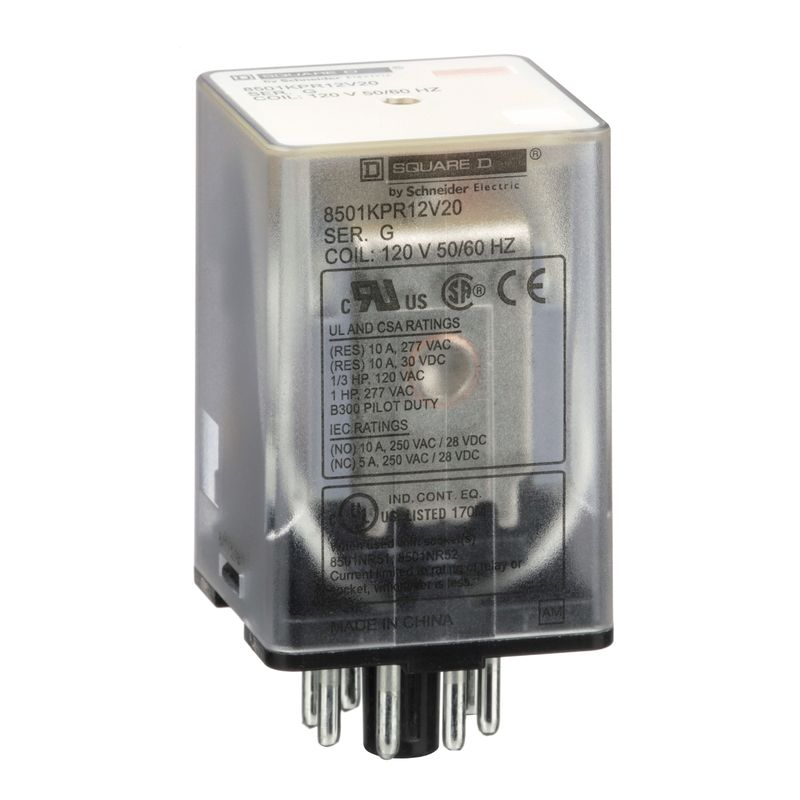

8501KPR12V20 | RELAY 2CO CYL PIN 10A 240V 120VAC COIL – Schneider Electric

Name: 8501KPR12V20 - Plug in relay, Type KP, tubular, 1 HP at 277 VAC | Schneider Electric
Brand: Schneider Electric
SKU: 8501KPR12V20
Price: 3520.84 INR
Availability: BackOrder

SKU: 8501KPR12V20

Original price was: ₹7,654.00.Current price is: ₹3,520.84. Excl. GST

Dispatch By : 5 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
product range	8501K
product type	Relay
Relay Type	General purpose
mounting type	Socket
contact composition	DPDT
[Uc] control circuit voltage	120 V AC
pilot light	No indicator
manual operator	Without test button
Complementary
horsepower rating	1 hp 277 V AC 0.33 hp 120 V AC
breaking capacity	3 A 120 V AC inductive control circuit UL 508 1.5 A 240 V AC inductive control circuit UL 508 10 A 277 V AC resistive control circuit UL 508 10 A 30 V DC resistive control circuit UL 508
maximum switching voltage	300 V AC 30 V DC
contact material	Silver alloy (AgNi)
operating time	20 ms – pick-up 20 ms – drop-out
shape of pins	Tubular
for use with	8501NR52 8501NR51
Environment
ambient temperature range – operational	-40…131 °F (-40…55 °C)
product certifications	UL Listed UL Recognized CSA CE
Height	2.66 in (67.56 mm)
Width	1.4 in (35.6 mm)
Depth	1.4 in (35.6 mm)
Ordering and shipping details
Category	US10CP221141
Discount Schedule	0CP2
GTIN	785901147329
Returnability	Yes
Country of origin	CN
Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	1.700 in (4.318 cm)
Package 1 Width	1.700 in (4.318 cm)
Package 1 Length	3.00 in (7.62 cm)
Package weight(Lbs)	4.800 oz (136.078 g)
Unit Type of Package 2	PAL
Number of Units in Package 2	75
Package 2 Height	40.0 in (101.6 cm)
Package 2 Width	36.00 in (91.44 cm)
Package 2 Length	48.00 in (121.92 cm)
Package 2 Weight	15.750 lb(US) (7.144 kg)
Unit Type of Package 3	CAR
Number of Units in Package 3	120
Package 3 Height	6.300 in (16.002 cm)
Package 3 Width	6.00 in (15.24 cm)
Package 3 Length	15.600 in (39.624 cm)
Package 3 Weight	9.850 lb(US) (4.468 kg)
Contractual warranty
Warranty (in months)	18
