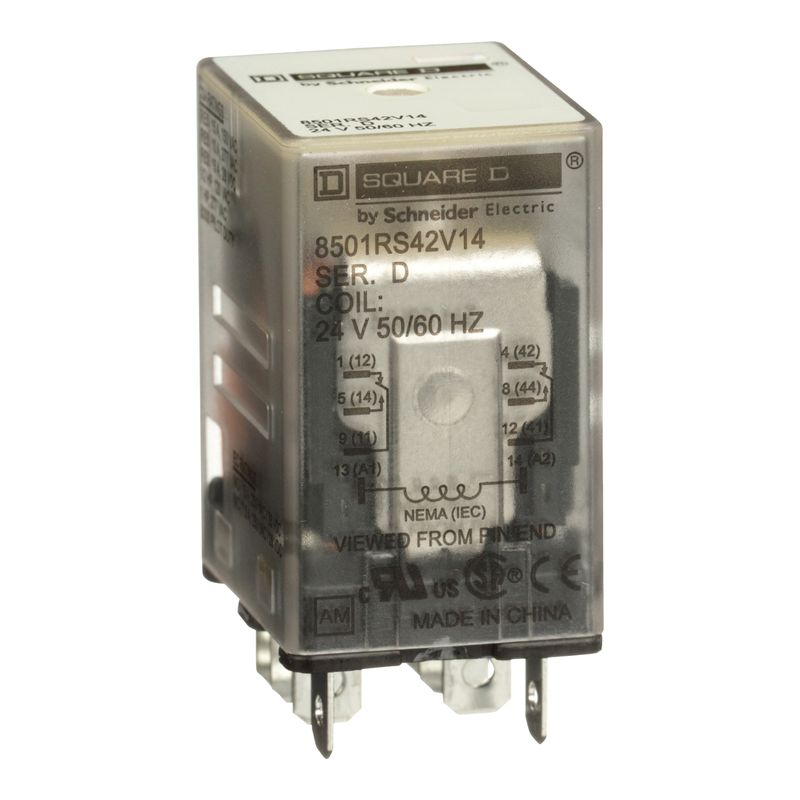

8501RS42V14 | MINIATURE RELAY 24VAC 15A SPDT – Schneider Electric

Name: 8501RS42V14 - Miniature Relay, Harmony 8501R, SPDT, 8 blades, coil | Schneider Electric
Brand: Schneider Electric
SKU: 8501RS42V14
Price: 1305.48 INR
Availability: BackOrder

SKU: 8501RS42V14

Original price was: ₹2,838.00.Current price is: ₹1,305.48. Excl. GST

Dispatch By : 29 Weeks

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
product range	8501R
product type	Miniature Relay
Relay Type	Standard
Complementary
mounting type	Socket
contact composition	DPDT
[Uc] control circuit voltage	24 V AC
pilot light	No indicator
manual operator	Without test button
horsepower rating	0.5 120 V AC 1 277 V AC
breaking capacity	3 A 120 V AC inductive control circuit UL 508 1.5 A 240 V AC inductive control circuit UL 508 15 A 120 V AC resistive control circuit UL 508 10 A 277 V AC resistive control circuit UL 508 15 A 28 V DC resistive control circuit UL 508
maximum switching voltage	300 V AC 30 V DC
contact material	Silver alloy, gold flashed
operating time	20 ms – pick-up 20 ms – drop-out
shape of pins	Spade
for use with	8501NR42
Height	1.07 in (27.3 mm)
Width	0.8 in (21 mm)
Depth	1.6 in (41.8 mm)
Environment
ambient temperature range – operational	-40…131 °F (-40…55 °C)
product certifications	UL Listed UL Recognized CSA CE
Ordering and shipping details
Category	US10CP221143
Discount Schedule	0CP2
GTIN	785901131304
Returnability	Yes
Country of origin	CN
Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	1.500 in (3.810 cm)
Package 1 Width	2.100 in (5.334 cm)
Package 1 Length	1.400 in (3.556 cm)
Package weight(Lbs)	1.440 oz (40.823 g)
Contractual warranty
Warranty (in months)	18
