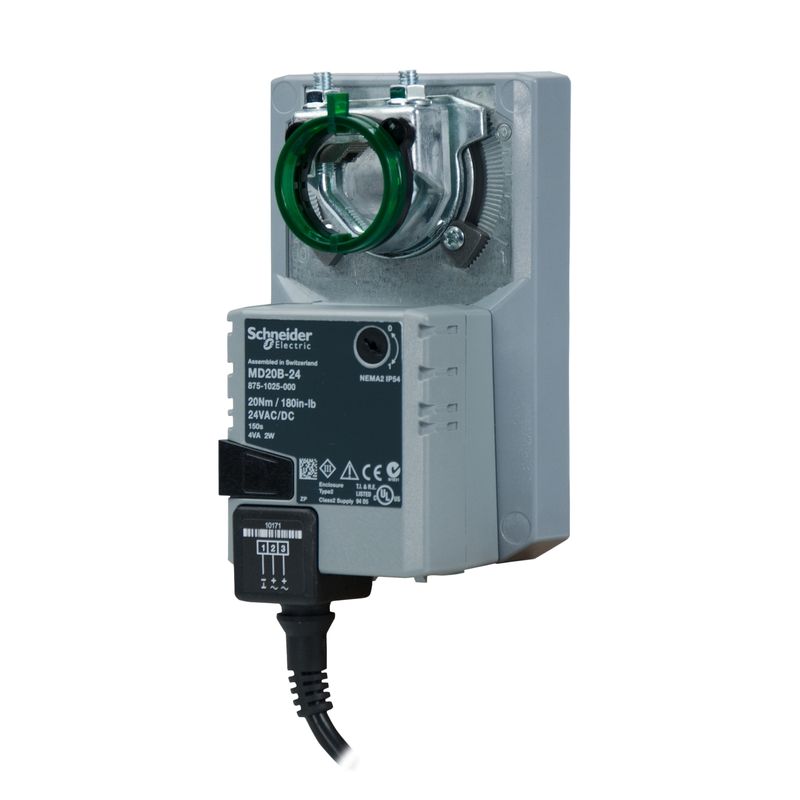

8751025000 | Actuator Damper MD20B-24 – Schneider Electric
Original price was: $335.63.$194.67Current price is: $194.67. Excl. GST
Dispatch By : 4 Weeks
Dispatch By : 4 Weeks
12
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Product or component type | Actuator |
| Actuator type | Electric |
| Actuator product series | MD |
| Actuator model | MD20B-24 |
| Product destination | dampers |
| Actuator | Rotary |
| Control type | Automatic reset |
| rated supply voltage | 24 V AC |
| Transformer rated power in VA | 4 VA |
| Power consumption in W | 2 W |
| Power consumption in VA | 2 VA AC |
| Hold-in power consumption in W | 0.2 W |
| Hold-in power consumption in VA | 4 VA AC |
| Control signal | 2-position (on/off) |
| Power loss return | Non-spring return |
| Stroke auto calibration | False |
| Electrical insulation class | Class III |
| Tightening torque | 177 lb.in 20 N.m |
| Position indicator | Visual indicator with position ring |
| Lead length | 1 m |
| Actuator rotation | 95 ° |
| Rotational range adjustment | 95° maximum (limited by an adjustable end stop) |
| Stroke running time | 150 s |
| IP degree of protection | IP54 |
| Ambient air temperature for operation | -30…50 °C |
| Relative humidity | 0…95 % RH, non-condensing |
| Ambient air temperature for storage | -40…80 °C |
| Targeted region | Europe Asia Pacific. Australia. |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27 cm |
| Package 1 Width | 12.8 cm |
| Package 1 Length | 8 cm |
| Package 1 Weight | 1.02 kg |
| Logistical informations | |
| Country of origin | SE |
| Contractual warranty | |
| Warranty (in months) | 18 |
