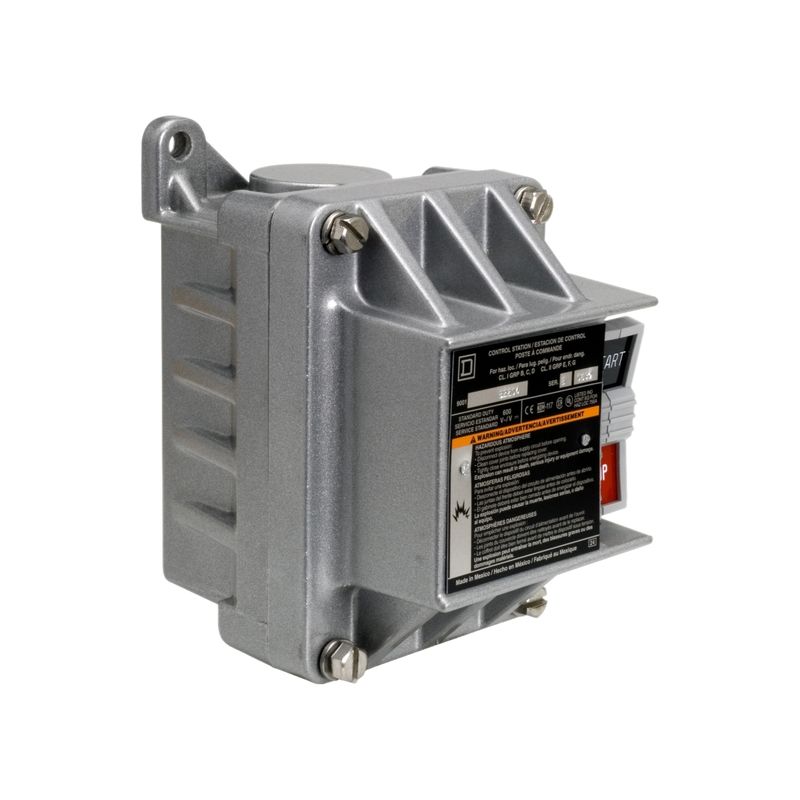

9001BR204 | CONTROL STATION 600VAC 5A T-B NEMA 7/9 - Schneider Electric - Image 1

    9001BR204 | CONTROL STATION 600VAC 5A T-B NEMA 7/9 – Schneider Electric

    SKU: 9001BR204

    Original price was: ₹64,187.00.Current price is: ₹40,437.81. Excl. GST

    Dispatch By : 5 Weeks

    Dispatch By : 5 Weeks

    12 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    Range of productHarmony 9001B
    Product or component typeComplete control station
    Device short name9001BR
    Complementary
    AC control voltage 50 HZ125…600 V
    AC control voltage 60 HZ125…600 V
    DC control voltage125…600 V
    Control station composition2 push-buttons START-STOP marking
    Contacts type and composition1 NO + 1 NC
    Number of command positions2
    Number of indicator lights0
    Connections – terminalsScrew clamp terminal
    Number of push buttons2
    [Ie] rated operational current5 A at 600 V
    Number of selector switches0
    Number of key switches0
    Device mountingSurface
    Type of installationIndoor
    Number of mushroom-shaped push-buttons0
    Emergency power offNo
    Number of contacts as normally closed contact1
    Number of contacts as normally open contact1
    Number of contacts as change-over contact0
    Housing materialMetal
    Housing colourGrey
    colour of coverGrey
    Environment
    NEMA degree of protectionNEMA 7/9
    Product certificationsCE
    CSA LR25490 class 3211 03
    UL listed file E42259 CCN NKCR
    Environmental characteristicHazardous location
    NEMA degree of protectionNEMA 7/9
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height17.018 cm
    Package 1 Width19.050 cm
    Package 1 Length20.320 cm
    Package 1 Weight1.619 kg
    Contractual warranty
    Warranty (in months)18
