9001KM5 | 30MM LIGHT MODULE TRANSF 380-400V - Schneider Electric - Image 1

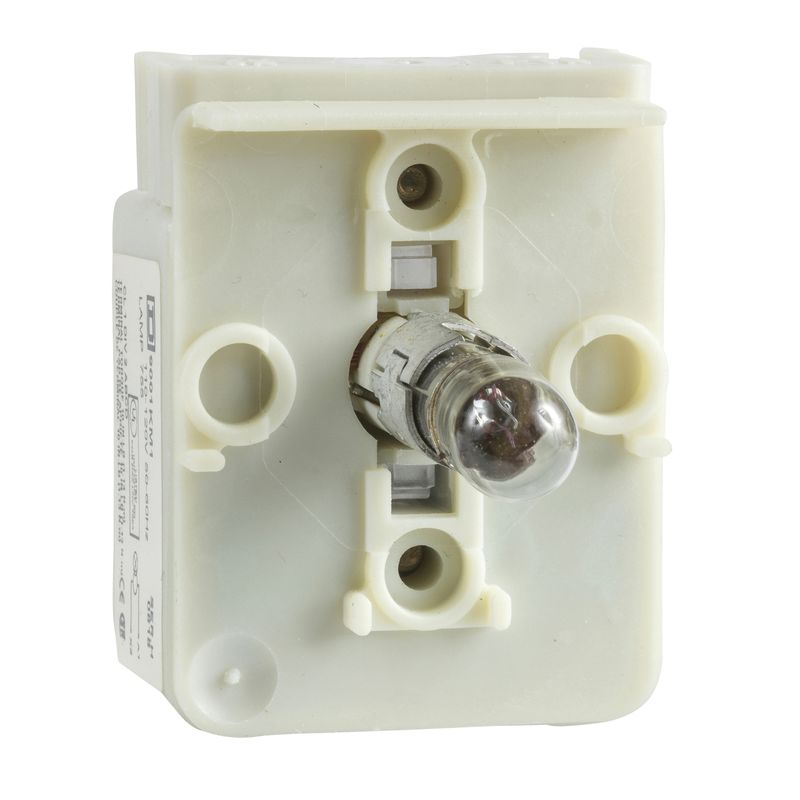

    9001KM5 | 30MM LIGHT MODULE TRANSF 380-400V – Schneider Electric

    SKU: 9001KM5

    Original price was: ₹20,511.00.Current price is: ₹12,921.93. Excl. GST

    Dispatch By : 6 Weeks

    Dispatch By : 6 Weeks

    11 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    Range of productHarmony 9001K
    Harmony 9001SK
    Product or component typeLight block
    Device short name9001K
    Bulb baseBA 9s
    Light block supplyDirect via integral transformer 6 V
    Complementary
    Net weight0.144 kg
    Light sourceIncandescent bulb
    [Us] rated supply voltage380…480 V AC/DC
    [Us] rated supply voltage380…480 V
    Light block supplyVia integral transformer
    Supply frequency50…60 Hz
    Size30 mm
    Environment
    Protective treatmentTC
    Ambient air temperature for storage-40…70 °C
    Ambient air temperature for operation-25…70 °C
    IP degree of protectionIP10 conforming to IEC 60529
    StandardsUL 508
    JIS C 852
    IEC 60947-5-1
    CSA C22.2 No 14
    IEC 60947-5-4
    IEC 60947-1
    JIS C 4520
    Product certificationsNEMA
    UL 508
    Electrical shock protection classClass II conforming to IEC 61140
    Vibration resistance7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
    Shock resistance50 gn conforming to IEC 60068-2-27
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height4.826 cm
    Package 1 Width5.842 cm
    Package 1 Length9.398 cm
    Package 1 Weight149.686 g
    Contractual warranty
    Warranty (in months)18
