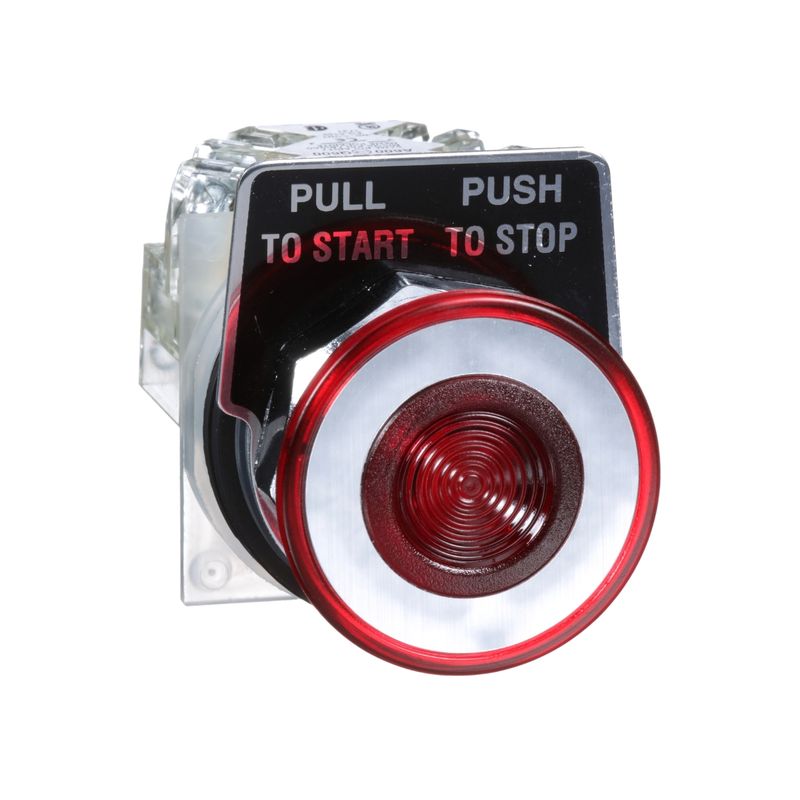

9001KR9RH13 | PB metal mushr 41mm red push 1 CO - Schneider Electric - Image 1

    9001KR9RH13 | PB metal mushr 41mm red push 1 CO – Schneider Electric

    SKU: 9001KR9RH13

    Original price was: ₹7,434.00.Current price is: ₹4,683.42. Excl. GST

    Dispatch By : 7 Weeks

    Dispatch By : 7 Weeks

    18 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    Range of productHarmony 9001K
    Product or component typePush-button
    Device short name9001K
    Type of operatorpush-pull
    Operator profileRed mushroom Ø 41 mm, unmarked
    Complementary
    Bezel materialMetal
    Mounting diameter30 mm
    CAD overall width46 mm
    CAD overall height45 mm
    CAD overall depth74 mm
    Net weight0.141 kg
    Operating positionAny position
    Shape of signaling unit headRound
    Head materialPlastic
    Operator additional informationScrew-on plastic
    Operator position information2 positions
    Contacts type and composition1 C/O
    Positive openingWithout
    Mechanical durability5000000 cycles
    Connections – terminalsScrew clamp terminals, 1 x 0.22…2 x 1.5 mm² conforming to IEC 60947-1
    Tightening torque0.8 N.m conforming to IEC 60947-1
    Shape of screw headCross slotted
    Contacts materialSilver alloy contacts
    Short-circuit protection10 A cartridge fuse conforming to IEC 60947-5-1
    [Ith] conventional free air thermal current10 A
    [Ui] rated insulation voltage250 V (pollution degree 3) conforming to IEC 60947-1
    [Uimp] rated impulse withstand voltage2.5 kV conforming to IEC 60947-1
    [Ie] rated operational current3 A at 240 V, AC-15, A600-Q600 conforming to NEMA
    0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA
    [Icm] rated short-circuit making capacity12 kA at 600 V AC-15, 7200 VA
    15 kA at 480 V AC-15, 7200 VA
    30 kA at 240 V AC-15, 7200 VA
    0.1 kA at 600 V DC-13
    0.27 kA at 250 V DC-13
    0.55 kA at 125 V DC-13
    Rated breaking capacity3 kA at 240 V AC-15, 720 VA
    6 kA at 120 V AC-15, 720 VA
    1.2 kA at 600 V AC-15, 720 VA
    1.5 kA at 480 V AC-15, 720 VA
    0.1 kA at 600 V DC-13
    0.27 kA at 250 V DC-13
    0.55 kA at 125 V DC-13
    Device presentationComplete product
    Cap/operator or lens colourRed
    Operator profileMushroom Ø 41 mm
    Type of operatorPush-pull
    Size30 mm
    Environment
    Protective treatmentTC
    Ambient air temperature for storage-40…70 °C
    Ambient air temperature for operation-25…70 °C
    Overvoltage categoryClass II conforming to IEC 61140
    IP degree of protectionIP65/IP66
    NEMA degree of protectionNEMA 1
    NEMA 12
    NEMA 13
    NEMA 2
    NEMA 3
    NEMA 3R
    NEMA 4
    NEMA 6
    StandardsIEC 60947-5-1
    IEC 60947-1
    IEC 60947-5-4
    JIS C 4520
    JIS C 852
    UL 508
    CSA C22.2 No 14
    Product certificationsUL 508
    NEMA
    Vibration resistance7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
    Shock resistance50 gn conforming to IEC 60068-2-27
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height9.144 cm
    Package 1 Width5.08 cm
    Package 1 Length6.096 cm
    Package 1 Weight145.15 g
    Unit Type of Package 2S01
    Number of Units in Package 224
    Package 2 Height15 cm
    Package 2 Width15 cm
    Package 2 Length40 cm
    Package 2 Weight3.777 kg
    Contractual warranty
    Warranty (in months)18
