9080LBA361101 | PWR DISTR BLK 600V 115A – Schneider Electric

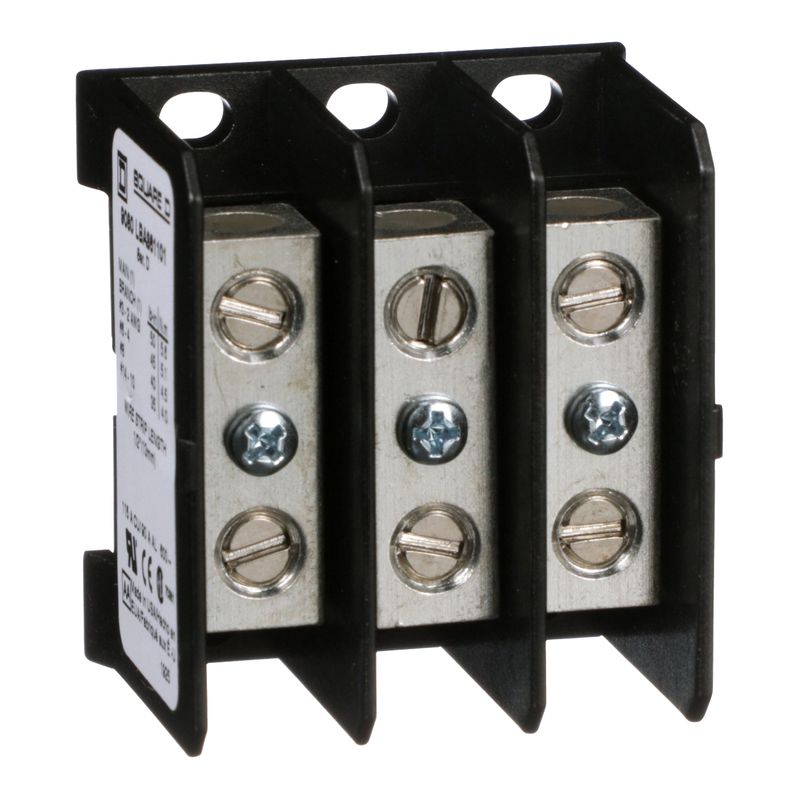

Name: 9080LBA361101 - Power distribution block, Linergy, 3 pole, 1 line, 1 load | Schneider Electric
Brand: Schneider Electric
SKU: 9080LBA361101
Price: 16.37 USD
Availability: BackOrder

SKU: 9080LBA361101

Original price was: $19.03.Current price is: $16.37. Excl. GST

Dispatch By : 15 Weeks

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	9080LB
Product	Miniature Power Distribution Block
Current Rating	115 A copper 90 A aluminium
Short Circuit Current Rating	65 kA
Complementary
Voltage Rating	600 V AC/DC
Mounting Type	Surface mount
Number of poles	3
Terminals per Pole	1 line 1 load
Wire Size	Line 1, 14 AWG…2 AWG, copper or aluminium Load 1, 14 AWG…2 AWG, copper or aluminium
Electrical Connection	Tin plated aluminium lugs
SCCR	100 kA UL 508 A
Ambient Air Temperature for Operation	-40…257 °F (-40…125 °C)
Block Material	Thermoplastic: block
Terminal Tightening Torque	Line lug 50 lbf.in (5.6 N.m) 3 AWG…2 AWG copper or aluminium Line lug 45 lbf.in (5.08 N.m) 6 AWG…4 AWG copper or aluminium Line lug 40 lbf.in (4.5 N.m) 8 AWG copper or aluminium Line lug 35 lbf.in (4.0 N.m) 12 AWG…10 AWG copper or aluminium Line lug 35 lbf.in (4.0 N.m) 14 AWG copper Load lug 50 lbf.in (5.6 N.m) 3 AWG…2 AWG copper or aluminium Load lug 45 lbf.in (5.08 N.m) 6 AWG…4 AWG copper or aluminium Load lug 40 lbf.in (4.5 N.m) 8 AWG copper or aluminium Load lug 35 lbf.in (4.0 N.m) 12 AWG…10 AWG copper or aluminium Load lug 35 lbf.in (4.0 N.m) 14 AWG copper
Wire stripping length	Line: 0.5 in (12.7 mm)
Height	2.29 in (58.17 mm)
Width	2.12 in (53.85 mm)
Depth	1.62 in (41.15 mm)
End Barrier	9080LB13
Environment
Certifications	UL recognized E60616 CCN XCFR2 CE CSA file 70361 class 6228 01
Ordering and shipping details
Category	US1CTR121254
Discount Schedule	CTR1
GTIN	785901097426
Returnability	Yes
Country of origin	US
Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	2.300 in (5.842 cm)
Package 1 Width	1.50 in (3.81 cm)
Package 1 Length	2.100 in (5.334 cm)
Package weight(Lbs)	3.52 oz (99.79 g)
Contractual warranty
Warranty (in months)	18
