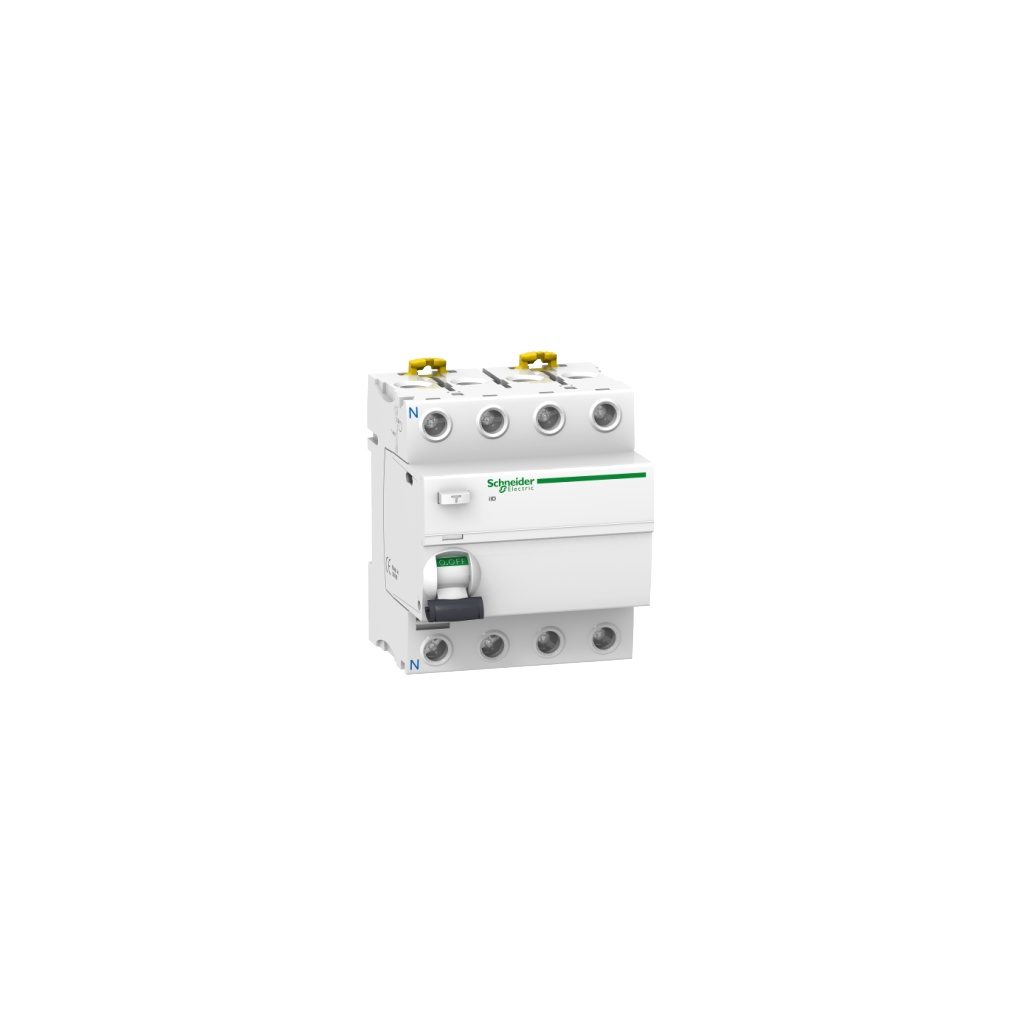

A9R12491 | Acti 9 iID – RCCB – 4P – 100A – 100mA – type AC – Schneider Electric

RCCB

Schneider Electric

Excl. GST

Add to basket

SKU: A9R12491

-60%

A9R11491 | Acti 9 iID – RCCB – 4P – 100A – 30mA – type AC – Schneider Electric

RCCB

Schneider Electric

Excl. GST

Add to basket

SKU: A9R11491

-24%

A9D31616 | A9 iDPN N Vigi C 16A 1PN 30mA AC RCBO – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: A9D31616

The Schneider Electric A9A26904 is an electrical component from the Acti9 range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include 0.1…6 A at 24…240 V, AC 50/60 Hz, IP20. Buy the A9A26904 | Acti9 A9A iOF btm wiring 0.1-6A aux online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	A9A26904
Category	Electrical Component
Main
range of product	Acti9
Product or component type	OC contact
Device short name	iOF
Signal contacts composition	1 C/O
[In] rated current	0.1…6 A at 24…240 V, AC 50/60 Hz 0.1…3 A at 415 V, AC 50/60 Hz 0.1…6 A at 24 V, DC 0.1…2 A at 48 V, DC 0.1…1.5 A at 60 V, DC 0.1…1 A at 130 V, DC
9 mm pitches	1
Standards	EN/IEC 60947-5-1 GB/T 14048.5
Product certifications	CE UKCA
Quality labels	EAC CCC CMIM
Complementary
Range compatibility	Acti9 iC60H RCBO Acti9 iC60H RCBO PoN Acti9 iC60H2 RCBO Acti9 iC60N RCBO Acti9 iKQE RCBO Acti9 iSW Acti9 iCVm40 Acti9 iCVr40 Acti9 iDDm40
[Ui] rated insulation voltage	500 V
[Uimp] rated impulse withstand voltage	4 kV
Mounting mode	Clip-on
Mounting location	Left side of circuit-breaker
Mounting support	DIN rail
Comb busbar and distribution block compatibility	Top: YES
Height	86 mm
Width	9 mm
Depth	73 mm
Product weight	32 g
Colour	White
Connections – terminals	Screw clamp terminal (bottom): 1 cable(s) 1…4 mm² – rigid Screw clamp terminal (bottom): 1 cable(s) 0.5…2.5 mm² – flexible Screw clamp terminal (bottom): 2 cable(s) 2.5 mm² – rigid Screw clamp terminal (bottom): 2 cable(s) 1.5 mm² – flexible with ferrule
Wire stripping length	10 mm
Tightening torque	1 N.m bottom
Environment
IP degree of protection	IP20
Pollution degree	3
Tropicalisation	2
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-35…70 °C
Ambient air temperature for storage	-40…85 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.100 cm
Package 1 Width	8.000 cm
Package 1 Length	9.300 cm
Package 1 Weight	40.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2	12
Package 2 Height	8.500 cm
Package 2 Width	10.000 cm
Package 2 Length	27.000 cm
Package 2 Weight	565.000 g
Unit Type of Package 3	S03
Number of Units in Package 3	120
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	6.300 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

0.1–6 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
iQuick PRD
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

A9R41225A9D31616A9D32616A9R12440A9R12240A9D34610A9R41440A9D54616A9R11491A9R41425A9R21240A9R41240A9R21463A9R44440A9R14491A9D31620A9R12491A9R21225A9R41263A9D31625A9KS15140BQA9S65140A9S65240A9S65363A9S65440A9S65463A9S65491

❓ Frequently Asked Questions

Q: What is the significance of the 0.1–6 A rating on the A9A26904?

A: The 0.1–6 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.
