A9D31616 | A9 iDPN N Vigi C 16A 1PN 30mA AC RCBO - Schneider Electric - Image 1
Click to enlarge

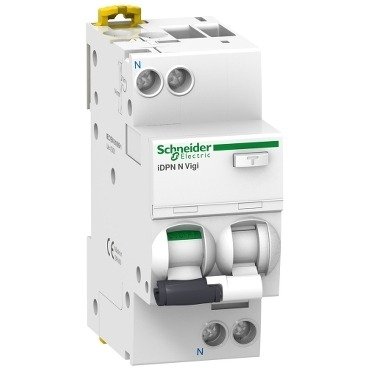

    A9D31616 | A9 iDPN N Vigi C 16A 1PN 30mA AC RCBO – Schneider Electric

    SKU: A9D31616

    Original price was: ₹13,914.00.Current price is: ₹10,574.64. Excl. GST

    Dispatch By : 6 Weeks

    Dispatch By : 6 Weeks

    12 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    Placeholder
    -27%

    A9A26960 | ACTI9 IMN 220-240VAC UNDERVOLTAGE RELEAS – Schneider Electric

    Original price was: ₹5,613.00.Current price is: ₹4,097.49. Excl. GST
    Add to basket
    SKU: A9A26960
    Placeholder
    -27%

    A9A26969 | ACTI9 IMNX 220-240VAC UNDERVOLTAGE RELEA – Schneider Electric

    Original price was: ₹18,386.00.Current price is: ₹13,421.78. Excl. GST
    Add to basket
    SKU: A9A26969
    Placeholder
    -27%

    A9A26897 | Acti9 A9A iOF+SD 24 VDC Ti24 term on top – Schneider Electric

    Original price was: ₹4,788.00.Current price is: ₹3,495.24. Excl. GST
    Add to basket
    SKU: A9A26897
    Placeholder
    -27%

    A9A26946 | ACTI9 IMX-OF 100-415VAC 110-130VDC SHUNT – Schneider Electric

    Original price was: ₹6,186.00.Current price is: ₹4,515.78. Excl. GST
    Add to basket
    SKU: A9A26946
    Placeholder
    -48%

    A9MEM1560 | PowerTag Energy F63 1PN – Schneider Electric

    Original price was: ₹13,906.00.Current price is: ₹7,231.12. Excl. GST
    Add to basket
    SKU: A9MEM1560
    Placeholder
    -27%

    A9A26976 | Acti9 TERMINAL SHIELD 36MM IC60 IID – Schneider Electric

    Original price was: ₹1,610.00.Current price is: ₹1,175.30. Excl. GST
    Add to basket
    SKU: A9A26976
    Placeholder
    -27%

    A9A26476 | ACTI9 IMX 100-415VAC 110-130VDC SHUNT RE – Schneider Electric

    Original price was: ₹8,652.00.Current price is: ₹6,315.96. Excl. GST
    Add to basket
    SKU: A9A26476
    Placeholder
    -27%

    A9A27062 | ACTI9 5X SPACER 9MM IC60 IID ICT – Schneider Electric

    Original price was: ₹1,088.00.Current price is: ₹794.24. Excl. GST
    Add to basket
    SKU: A9A27062
    Placeholder
    -27%

    A9A27005 | ACTI9 ROTARY HANDLE BLACK IC60 IID – Schneider Electric

    Original price was: ₹4,838.00.Current price is: ₹3,531.74. Excl. GST
    Add to basket
    SKU: A9A27005
    Placeholder
    -27%

    A9A26947 | ACTI9 IMX-OF 48VAC 48VDC SHUNT RELEASE W – Schneider Electric

    Original price was: ₹6,194.00.Current price is: ₹4,521.62. Excl. GST
    Add to basket
    SKU: A9A26947
    Placeholder
    -27%

    A9A26970 | ACTI9 10X PADLOCKING DEVICE IC60 IID – Schneider Electric

    Original price was: ₹4,057.00.Current price is: ₹2,961.61. Excl. GST
    Add to basket
    SKU: A9A26970
    -27%

    A9A26904 | Acti9 A9A iOF btm wiring 0.1-6A aux – Schneider Electric

    Schneider Electric
    Original price was: ₹1,653.00.Current price is: ₹1,206.69. Excl. GST
    Add to basket
    SKU: A9A26904
    Placeholder
    -27%

    A9A27008 | ACTI9 MECHANISM FOR ROTARY HANDLE IC60 I – Schneider Electric

    Original price was: ₹14,634.00.Current price is: ₹10,682.82. Excl. GST
    Add to basket
    SKU: A9A27008
    Placeholder
    -27%

    A9A26981 | Acti9 SCREW SHIELD IMulti 9 C60 IID – Schneider Electric

    Original price was: ₹5,410.00.Current price is: ₹3,949.30. Excl. GST
    Add to basket
    SKU: A9A26981
    Placeholder
    -27%

    A9A27006 | ACTI9 ROTARY HANDLE RED IC60 IID – Schneider Electric

    Original price was: ₹4,838.00.Current price is: ₹3,531.74. Excl. GST
    Add to basket
    SKU: A9A27006
    Placeholder
    -27%

    A9A26963 | ACTI9 IMNS 220-240VAC UNDERVOLTAGE RELEA – Schneider Electric

    Original price was: ₹5,442.00.Current price is: ₹3,972.66. Excl. GST
    Add to basket
    SKU: A9A26963

      The Schneider Electric A9D31616 is a rcbo from the Acti9 range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 16 A, 230…240 V AC 50 Hz, 1P + N. Buy the A9D31616 | A9 iDPN N Vigi C 16A 1PN 30mA AC RCBO online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKUA9D31616
      CategoryRCBO
      Main
      RangeActi9
      Product nameActi9 iDPN Vigi
      Product or component typeResidual current breaker with overcurrent protection (RCBO)
      Device short nameiDPN N Vigi
      Device applicationDistribution
      Poles description1P + N
      Number of protected poles1
      Neutral positionLeft
      [In] rated current16 A
      Network typeAC
      Network frequency50 Hz
      Trip unit technologyThermal-magnetic
      Curve codeC
      Earth-leakage sensitivity30 mA
      Suitability for isolationYes conforming to EN/IEC 60947-2
      Complementary
      Device location in systemOutgoer
      [Ue] rated operational voltage230…240 V AC 50 Hz
      Magnetic tripping limit5…10 x In
      Residual current tripping technologyVoltage independent
      Earth-leakage protection time delayInstantaneous
      Earth-leakage protection classType AC
      Breaking capacity6000 A Icn at 230…240 V AC 50 Hz conforming to EN/IEC 61009-2-1
      [Ics] rated service breaking capacity6000 A 100 % x Icn at 230…240 V AC 50 Hz conforming to EN/IEC 61009-2-1
      Rated breaking and making capacityIdm 6000 A at 230…240 V AC 50 Hz conforming to EN/IEC 61009-2-1
      Limitation class3 conforming to EN/IEC 61009-2-1
      [Ui] rated insulation voltage400 V AC 50 Hz
      [Uimp] rated impulse withstand voltage4 kV
      Contact position indicatorYes
      Control typeToggle
      Local signallingON, OFF, fault trip
      Mounting modeClip-on
      Mounting supportDIN rail
      Comb busbar and distribution block compatibilityTop or bottom: YES
      Connection pitch9 mm between phase and neutral
      9 mm pitches4
      Height85 mm
      Width36 mm
      Depth73 mm
      Product weight125 g
      ColourWhite
      Mechanical durability20000 cycles
      Electrical durability20000 cycles
      Locking options descriptionPadlocking device
      Connections – terminalsSingle terminal top or bottom 1…16 mm² rigid
      Single terminal top or bottom 1…10 mm² flexible
      Single terminal top or bottom 1…10 mm² flexible with ferrule
      Wire stripping length15 mm for top or bottom connection
      Tightening torque2 N.m top or bottom
      Earth-leakage protectionIntegrated
      Environment
      StandardsEN/IEC 61009-2-1
      Product certificationsVDE
      GOST
      IP degree of protectionIP20 conforming to IEC 60529
      IP40 (modular enclosure) conforming to IEC 60529
      Pollution degree3
      Overvoltage categoryIII conforming to IEC 60364
      Electromagnetic compatibility8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1
      Tropicalisation2 conforming to IEC 60068-1
      Relative humidity95 % at 55 °C
      Ambient air temperature for operation-5…60 °C
      Ambient air temperature for storage-40…85 °C
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height4.000 cm
      Package 1 Width8.300 cm
      Package 1 Length10.000 cm
      Package 1 Weight208.000 g
      Unit Type of Package 2S03
      Number of Units in Package 254
      Package 2 Height30.000 cm
      Package 2 Width30.000 cm
      Package 2 Length40.000 cm
      Package 2 Weight11.768 kg
      Unit Type of Package 3P12
      Number of Units in Package 3432
      Package 3 Height45.000 cm
      Package 3 Width80.000 cm
      Package 3 Length120.000 cm
      Package 3 Weight105.000 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • 16 A current rating with combined overload + short-circuit + earth-leakage protection in one device — complete circuit protection without a separate MCB and RCCB.
      • 30 mA individual earth-leakage protection — an earth fault on this circuit trips only this RCBO; other circuits in the board remain energised, unlike a shared RCCB which disconnects all.
      • Single DIN rail module — same 17.5mm or 1P width as a standard MCB; maximises the number of protected circuits in a fixed enclosure size.
      • Manufactured to IEC 61009 / IS 12640-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      A9A27062A9A26970A9A26976A9A26981A9A27003A9A26904A9A26897A9A26960A9A26963A9A26969A9A26476A9A26946A9A26947A9A27005A9A27006A9A27008A9MEM1560

      ❓ Frequently Asked Questions

      Q: What load can the A9D31616 protect at its rated 16 A?

      A: The A9D31616 is rated to carry and protect circuits up to 16 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 16 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

      Q: Why is the 30 mA sensitivity specified on the A9D31616 and when should you choose a different rating?

      A: 30 mA is the residual current at which the A9D31616 will trip within 300ms. A 30mA sensitivity provides additional shock protection (mandatory for socket circuits per IS 732). 100mA is used for fire protection (no shock protection). 300mA protects feeders without nuisance tripping. Choose based on the circuit’s risk profile — never use >30mA for socket outlet circuits in wet or high-risk locations.

      Q: What is the difference between an RCBO and a standard MCB — and why use the A9D31616?

      A: A standard MCB protects against overload and short-circuit only. An RCBO combines MCB overcurrent/short-circuit protection AND RCCB earth leakage detection in a single 1-module device — ideal where both forms of protection are needed in limited panel space. Choose the A9D31616 when the application specifically requires rcbo characteristics.
