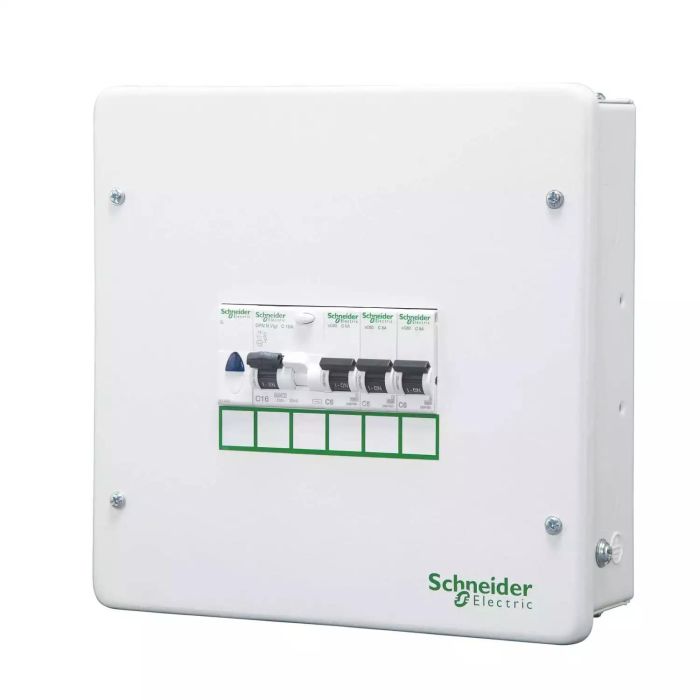

The Schneider Electric A9HSNS06 is a distribution board from the Acti9 range, engineered for safe and organised power distribution in demanding Indian and international installations. Key ratings include 1 Pole, IP30. Buy the A9HSNS06 | Acti 9 DB 6 way SPN SD online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	A9HSNS06
Category	Distribution Board
Main
Range	Acti9
Product name	SPN
Product or component type	Consumer unit
Device application	Distribution
Colour	White (RAL 9003)
Provided equipment	Grounding bar Neutral bar Busbar Neutral cable
Complementary
Enclosure mounting	Flush Surface
Protection device type	Outgoer: miniature circuit breaker (MCB) – 1P Main incomer: isolator – 2P Main incomer: miniature circuit breaker (MCB) – 2P Main incomer: residual current circuit breaker (RCCB) – 2P Main incomer: residual current circuit breaker with overcurrent protection (RCBO) – 2P
Total number of 18 mm modules	6
Number of ways	6 ways
Enclosure/cubicle description	Single door enclosure
Enclosure material	Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA front plate
Height	External: 242 mm
Width	External: 246 mm
Depth	External : 82 mm
Environment
IP degree of protection	IP30
IK degree of protection	IK08
Standards	IS 8623-1 IS 8623-3 IEC 61439-3
Product certifications	CPRI ERDA
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8 cm
Package 1 Width	25.4 cm
Package 1 Length	24.8 cm
Package 1 Weight	3.04 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

35mm DIN rail and neutral busbar pre-fitted — ready to accept MCBs, RCCBs, RCBOs, and surge protection devices directly from the box with no additional mounting hardware.
Knock-out cable entry points on top, bottom, and sides — accommodate PVC conduit, steel conduit, trunking, or direct cable entry without drilling the enclosure body.
Flame-retardant thermoplastic construction (UL 94 V-0) — self-extinguishes within 10 seconds; does not propagate flame in the event of internal fault or external fire exposure.
Manufactured to IEC 61439-3 / IS 8623 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
