A9HVN12M | Acti9 VTPN DB 12 Ways MCCB i-c 160A – Schneider Electric

Name: A9HVN12M | Acti9 VTPN DB 12 Ways MCCB i-c 160A - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: A9HVN12M
Price: 15029.43 INR
Availability: InStock

SKU: A9HVN12M

Original price was: ₹38,537.00.Current price is: ₹15,029.43. Excl. GST

In stock

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

A9N26596 VIGI XC60- earth leakage add-on block 4P 25A AC 100MA Schneider Electric pb110821 1500x1500

-60%

A9N26595 | VIGI XC60- earth leakage add-on block 4P 25A AC 30MA – Schneider Electric

Vigi Block

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26595

-60%

A9N26581 | VIGI XC60- earth leakage add-on block 2P 25A AC 30MA – Schneider Electric

Vigi Block

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26581

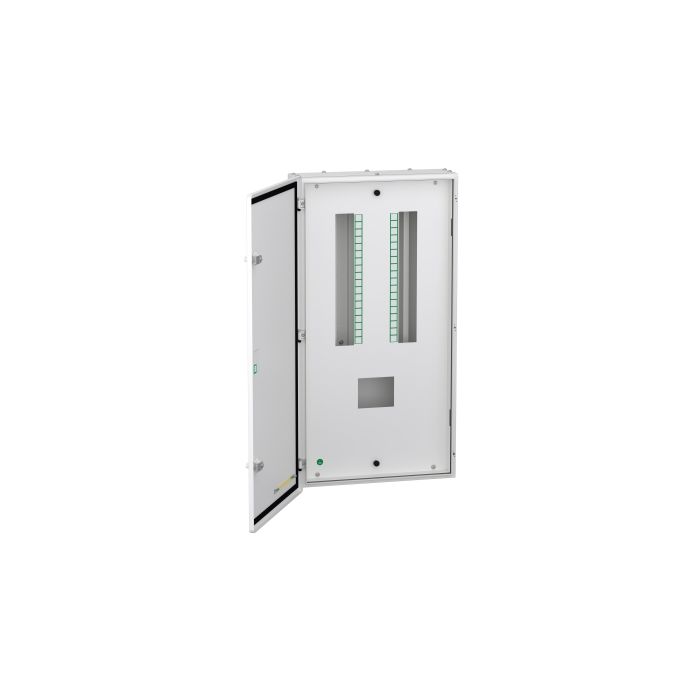

The Schneider Electric A9HVN12M is a mccb from the Acti9 range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 160 A, IP43. Buy the A9HVN12M | Acti9 VTPN DB 12 Ways MCCB i-c 160A online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	A9HVN12M
Category	MCCB
Main
Range	Acti9
Product name	VTPN
Product or component type	Consumer unit
Device application	Distribution
Colour	White (RAL 9003)
Provided equipment	Removable gland plates Removable centre plates Earthing bar Neutral bar Fishbone busbar Busbar link Cable shroud Neutral terminal block
Door type	Plain
Complementary
Enclosure mounting	Surface Flush
Protection device type	Main incomer: molded case circuit breaker (MCCB) – 3P or 4P – 160 A Outgoer: miniature circuit breaker (MCB) – 1P or 3P – 63 A
[Icw] rated short-time withstand current	25 kA for 0.5 s
[In] rated current	160 A
[Ui] rated insulation voltage	500 V
[Uimp] rated impulse withstand voltage	4 kV
Total number of 18 mm modules	36
Number of ways	12 ways
Enclosure/cubicle description	Double door enclosure
Enclosure material	Galvanized steel box Galvanized steel cable gland plate Galvanized steel mounting plate CRCA door CRCA central plate
Door opening side	Reversible
Height	External: 777 mm
Width	External: 416 mm
Depth	External : 139 mm
Product weight	20.5 kg
Environment
IP degree of protection	IP43
IK degree of protection	IK09
Standards	IS 8623-1 IS 8623-3 IEC 61439-3
Product certifications	CPRI NABL
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	15 cm
Package 1 Width	44 cm
Package 1 Length	80 cm
Package 1 Weight	21.5 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Thermal-magnetic trip unit — factory-calibrated overload and short-circuit protection; suitable for standard feeder circuits without electronic adjustment.
Manufactured to IEC 60947-2 / IS 13947-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

A9N26581A9N26595

❓ Frequently Asked Questions

Q: What load can the A9HVN12M protect at its rated 160 A?

A: The A9HVN12M is rated to carry and protect circuits up to 160 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 160 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

Q: Is the A9HVN12M suitable for use as a motor branch circuit protector (Type E coordination)?

A: MCCBs used for motor branch circuit protection must be coordinated with the downstream overload relay for Type 2 coordination (no damage to contactor or relay on short-circuit). Verify the Schneider Electric coordination table for the specific contactor-overload-MCCB combination to confirm Type 1 or Type 2 coordination is achieved.

Q: Can the A9HVN12M be motorised for remote switching and automation?

A: Yes. Schneider Electric MCCBs in this series support rotary handle adaptation and motorised operating mechanisms as accessories, enabling remote ON/OFF switching via PLC, SCADA, or BMS. Motorised MCCBs are used for automatic load management and remote trip in automated distribution systems.

Q: What trip unit type does the A9HVN12M use — thermal-magnetic or electronic?

A: Refer to the product label or datasheet for the exact trip unit specification. The trip unit determines adjustability and protection accuracy.

Q: Which Schneider Electric accessories are compatible with the A9HVN12M?

A: The Schneider Electric Acti9 series supports snap-on accessories including auxiliary contacts (OF), alarm contacts (SD), shunt trip coils (MX), undervoltage releases (MN), and comb busbars. Accessories are series-specific — always verify compatibility using the Schneider Electric product catalogue before ordering. myelectric.in can advise on the correct accessory part numbers for the A9HVN12M.
