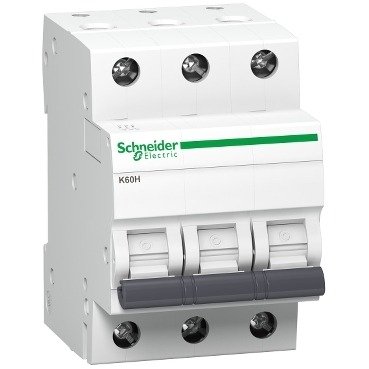

A9KF71304 | Acti 9K MCB 3P 4A C 10000A – Schneider Electric

Name: A9KF71304 | Acti 9K MCB 3P 4A C 10000A - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: A9KF71304
Price: 12.51 EUR
Availability: InStock

SKU: A9KF71304

Original price was: €22.75.Current price is: €12.51. Excl. GST

In stock

14 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric A9KF71304 is a miniature circuit breaker (mcb), engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 4 A, 3 Poles. Buy the A9KF71304 | Acti 9K MCB 3P 4A C 10000A online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Parameter	Value
Brand	Schneider Electric
Part Number / SKU	A9KF71304
Category	Miniature Circuit Breaker (MCB)
Current Rating	4 A
Poles	3 Poles
Breaking Capacity	10 kA
Rated Voltage	230/400V AC
Rated Frequency	50/60 Hz
Trip Mechanism	Thermal-magnetic (bimetal overload + electromagnetic short-circuit)
Mounting	35mm DIN rail (EN 60715)
Width	54 mm (3 × 18mm modules)
Terminal Capacity	Up to 35 mm² rigid cable
Electrical Endurance	≥ 20,000 operating cycles (per IEC 60898-1)
Pollution Degree	3 (per IEC 60664-1)
Standard	IS 8828 / IEC 60898-1 (residential) and IEC 60947-2 (industrial)
Certifications	BIS certified, CE marked, RoHS compliant

⚡ Key Features

Protects circuits at 4 A with 10 kA short-circuit breaking capacity — rated for light industrial and commercial distribution boards.
3 Poles — protects a three-phase circuit without neutral; fits standard 35mm DIN rail in distribution boards.
Thermal-magnetic trip mechanism — bimetal element trips on sustained overload, instantaneous magnetic trip on short-circuit; two independent protection functions in one compact module.
Visi-Trip indicator — handle snaps to a clearly visible mid-position on trip, allowing instant fault identification without opening the panel door.
Compatible with Acti9 comb busbar (1P, 2P, 3P, 3P+N) — parallel wiring of multiple MCBs without individual cables, cutting panel wiring time significantly.
Manufactured to IS 8828 / IEC 60898-1 (residential) and IEC 60947-2 (industrial) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What load can the A9KF71304 protect at its rated 4 A?

A: The A9KF71304 is rated to carry and protect circuits up to 4 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 4 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

Q: What does the 10 kA breaking capacity on the A9KF71304 mean in practice?

A: Breaking capacity (10 kA) is the maximum prospective short-circuit current the A9KF71304 can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 10 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

Q: Is the A9KF71304 suitable for both single-phase and three-phase systems?

A: The A9KF71304 with 3 Poles can protect three-phase circuits. Each pole simultaneously interrupts one phase — ensuring all phases are de-energised on a fault.

Q: Can the A9KF71304 be DIN rail mounted in any standard distribution board?

A: Yes. This Schneider Electric MCB uses the standard 35mm EN 60715 DIN rail and 17.5mm module width, making it compatible with all major brand distribution boards and enclosures. Terminal capacity accommodates both rigid and flexible conductors up to the rated cross-section.

Q: What happens when the A9KF71304 trips — how do I identify and reset it?

A: When the A9KF71304 trips on fault, the handle moves to a midway position (between ON and OFF), distinctly visible from a distance. To reset: (1) identify and rectify the fault, (2) push the handle fully to OFF, (3) then switch back to ON. Never force-reset without investigating the fault cause.
