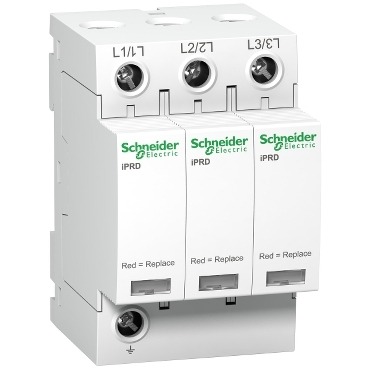

The Schneider Electric A9L08300 is a surge protection device (spd) from the IPRD range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 400 V AC, 3P, IK03. Buy the A9L08300 | IPRD 8 8 KA 350V 3P SURGE ARRESTER online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	A9L08300
Category	Surge Protection Device (SPD)
Main
Range of product	IPRD
range of product	Acti9
Product name	Acti9 iPRD
Product or component type	Surge arrester with pluggable cartridge
Device short name	iPRD8
Device application	Distribution
Standards	EN 61643-11:2012 IEC 61643-11:2011
Product certifications	CE
Quality labels	KEMA-KEUR NF
Poles description	3P
Remote signalling	Without
Surge arrester type	Electrical distribution network
Earthing system	TN-C IT 230
Complementary
Surge arrester class type	Type 2 + 3
Surge arrester technology	MOV
[Ue] rated operational voltage	400 V AC (+/- 10 %) at 50/60 Hz
Nominal discharge current	Common mode: 2.5 kA (L/PE)
Maximum discharge current	Common mode: 8 kA L/PE
[Uoc] open circuit voltage	10 kV type 3 common mode L/PE
[Uc] maximum continuous operating voltage	Common mode: 350 V L/PE
Maximum [Up] voltage protection level	Common mode <1.2 kV type 2 L/PE Common mode <1.2 kV type 3 L/PE
[Ut] temporary overvoltage	337 V L/N 5 s withstand 1200 V N/PE 200 ms safe failure mode 422 V L/PE 720 ms withstand 1455 V L/PE 200 ms safe failure mode
Disconnector device type	Associated circuit breaker iC60L 10 A curve C – Icu 25 kA Associated circuit breaker IC60N 10 A curve C – Icu 10 kA Associated circuit breaker iC60H 10 A curve C – Icu 15 kA Associated fuse gG 25 A – Icu 15 kA Associated fuse gG 80 A – Icu 50 kA
Mounting mode	Clip-on (DIN rail)
9 mm pitches	6
Height	85 mm
Width	54 mm
Depth	69 mm
Product weight	340 g
Colour	White (RAL 9003)
[Ipe] Ground residual current	0.6 mA
Connections – terminals	Tunnel type terminal (top or bottom) 2.5…25 mm² rigid Tunnel type terminal (top or bottom) 4…16 mm² flexible Tunnel type terminal (top or bottom) 4…16 mm² flexible with ferrule
Tightening torque	3.5 N.m
Compatibility code	IPRD8
Environment
IK degree of protection	IK03 conforming to IEC 62262
Relative humidity	5…95 %
Operating altitude	2000 m
Ambient air temperature for operation	-25…60 °C
Ambient air temperature for storage	-40…85 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7 cm
Package 1 Width	8 cm
Package 1 Length	9 cm
Package 1 Weight	347 g
Unit Type of Package 2	BB1
Number of Units in Package 2	4
Package 2 Height	9 cm
Package 2 Width	10 cm
Package 2 Length	28 cm
Package 2 Weight	1.449 kg
Unit Type of Package 3	S03
Number of Units in Package 3	36
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	13.585 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

350V AC maximum continuous operating voltage (Uc) — remains permanently connected to the live supply; clamping only activates during overvoltage events.
MOV (Metal Oxide Varistor) clamping technology — responds in nanoseconds (< 25ns) to clamp transient overvoltages before they reach connected sensitive electronics.
Visual end-of-life indicator — green flag (healthy) turns red when the MOV has absorbed its rated energy and must be replaced; ensures protection level is always verified.
35mm DIN rail mounting — installs inside the main distribution board at the point of entry; protects the entire downstream installation in a single device.
Manufactured to IEC 61643-11 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What does the 8 kA breaking capacity on the A9L08300 mean in practice?

A: Breaking capacity (8 kA) is the maximum prospective short-circuit current the A9L08300 can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 8 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

Q: After a short-circuit trip on the A9L08300, can it be reset and reused immediately?

A: After a short-circuit trip, do not immediately reset the A9L08300. First, identify and clear the fault. Then inspect the device — if there is visible arc damage, melted insulation, or the handle does not reset smoothly, the device must be replaced. The 8 kA rated breaking capacity is not unlimited — it is the maximum fault current the device can interrupt safely for a defined number of operations (typically 1–3 at full Icu rating). After any significant fault, factor replacement into your maintenance budget.
