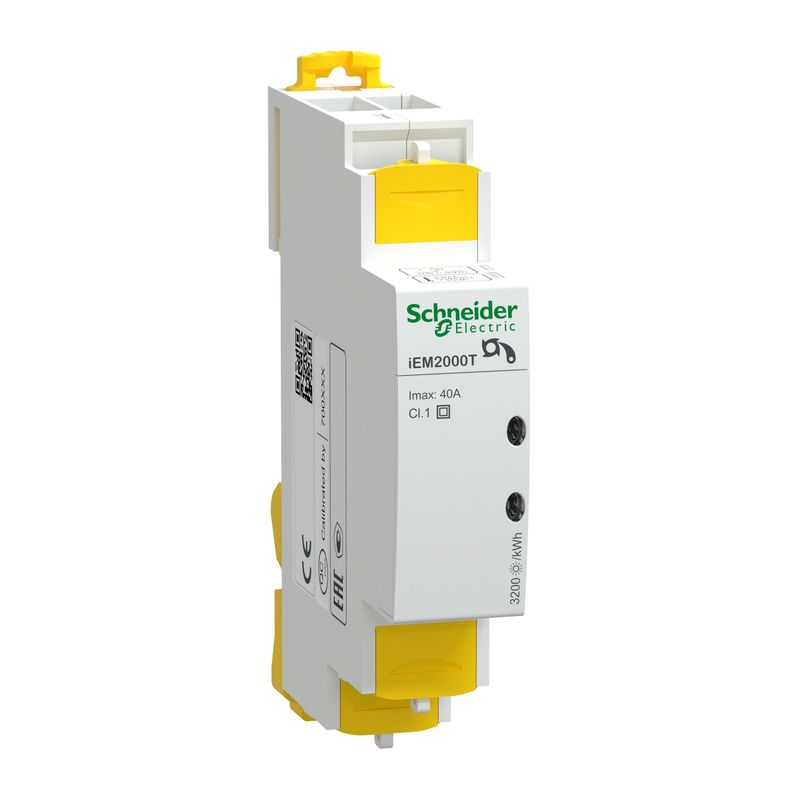

A9MEM2000T | iEM2000T 40A Cl 1 Energy meter no displa – Schneider Electric

Name: A9MEM2000T - Modular single phase power meter iEM2000T - 230V - 40A | Schneider Electric
Brand: Schneider Electric
SKU: A9MEM2000T
Price: 54.09 USD
Availability: BackOrder

SKU: A9MEM2000T

Original price was: $104.03.Current price is: $54.09. Excl. GST

Dispatch By : 16 Weeks

14 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	Acti9
family	Acti9 iEM2000
Product or component type	Energy meter
Device short name	iEM2000T
Complementary
Poles description	1P + N
Type of measurement	Active power
Device application	Sub billing
Accuracy class	Class 1 active energy conforming to IEC 62053-21
Analogue input type	Direct input
Maximum current [Imax]	40 A
[Ib] basic current	5 A
Rated current	40 A
Rated voltage	230 V +/- 20 %
Network frequency	60 Hz 50 Hz
Frequency measurement range	48…62 Hz
Technology type	Electronic
Display type	Without display
Sampling rate	32 samples/cycle
Measurement current	0.25…40 A
Display digits	0
Communication port protocol	–
Communication port support	–
Local signalling	Green indicator light: power ON Yellow indicator light: metering and activity 3200 p/kWh
Number of inputs	0
Number of outputs	1 pulse energy monitoring:
Output voltage	5…35 V DC@20 mA
Impulse duration	120 ms
Maximum power consumption in VA	10 VA at 240 V AC
Mounting mode	Clip-on
Mounting support	DIN rail
Connections – terminals	Power circuit: tunnel type terminals (bottom) 1 10 mm² cable(s) Remote transfer: tunnel type terminals (top) 1 4 mm² cable(s)
Tightening torque	Power circuit: 1.2 N.m Remote transfer: 0.8 N.m
Standards	IEC 61557-12 IEC 62053-21
Product certifications	CE
Environment
IP degree of protection	IP40 front panel: conforming to IEC 60529 IP20 casing:
Ambient air temperature for operation	-25…65 °C
Ambient air temperature for storage	-40…70 °C
Operating altitude	< 2000 m
Relative humidity	0…95 % at 55 °C
Colour	White
9 mm pitches	2
Width	18 mm
Height	96.5 mm
Depth	69 mm
Net weight	0.073 kg
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.500 cm
Package 1 Width	3.300 cm
Package 1 Length	10.000 cm
Package 1 Weight	110.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	38
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.982 kg
Contractual warranty
Warranty (in months)	18
