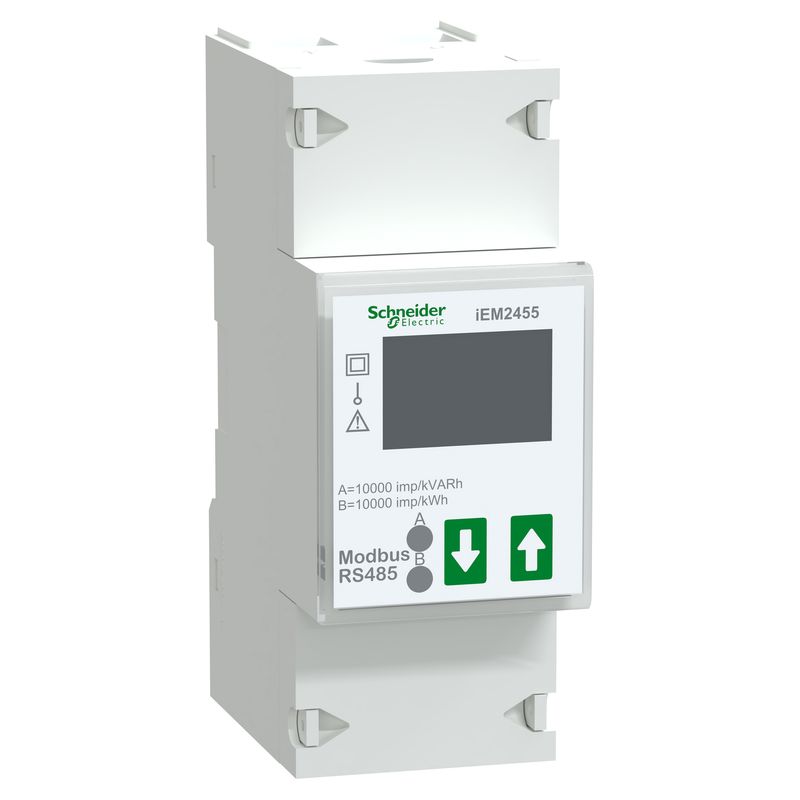

A9MEM2455 | iEM2455 100A Cl 1 MID Energy meter RS485 – Schneider Electric

Name: A9MEM2455 - Modular single phase power meter iEM2455 - 230V - 100A with | Schneider Electric
Brand: Schneider Electric
SKU: A9MEM2455
Price: 10116.08 INR
Availability: BackOrder

SKU: A9MEM2455

Original price was: ₹19,454.00.Current price is: ₹10,116.08. Excl. GST

Dispatch By : 7 Weeks

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	Acti9
family	Acti9 iEM2000
Product or component type	Energy meter
Device short name	iEM2455
Complementary
Poles description	1P + N
Type of measurement	Active and reactive energy Active and reactive power Apparent power Power factor Current Voltage Frequency
Metering type	Active and reactive energy
Device application	Sub billing Multi-tariff
Accuracy class	Class 1 active energy conforming to IEC 62053-21 Class 2 reactive energy conforming to IEC 62053-23 Class B active energy conforming to EN 50470-1 Class B active energy conforming to EN 50470-3
Analogue input type	Direct input
Rated current	100 A
Rated voltage	230 V
Network frequency	50 Hz 60 Hz
Frequency measurement range	45…66 Hz
Technology type	Electronic
Display type	LCD display
Sampling rate	32 samples/cycle
Measurement current	0.25…100 A
Display digits	7
Maximum value measured	99999.99 kWh 999999.9 kWh
Information displayed	Tariff (2)
Communication port protocol	Modbus RTU at 1200…38400 bauds even/odd or none
Communication port support	Screw terminals: RS485
Local signalling	Red LED: metering and activity 10000, 2000, 1000, 100, 10, 1, 0.1 or 0.01 imp/kWh
Impulse duration	5…32 ms
[Us] rated supply voltage	195…253 V AC 50 Hz
Maximum power consumption in VA	10 VA at 240 V AC
Maximum power consumption in W	1 W per phase
[Uimp] rated impulse withstand voltage	6 kV 1.2/50 µs
Mounting mode	Clip-on
Mounting support	DIN rail
Connections – terminals	Power circuit: screw clamp terminals (bottom) 25 mm² cable(s) Communication: screw clamp terminals (top) 2.5 mm² cable(s)
Standards	IEC 62052-11 IEC 62053-21 IEC 62053-23 IEC 62052-31
Product certifications	MID conforming to EN 50470-1 MID conforming to EN 50470-3 CE
Environment
IP degree of protection	IP51 front panel: conforming to IEC 60529 IP20 casing:
Pollution degree	2
Ambient air temperature for operation	-40…70 °C
Ambient air temperature for storage	-40…80 °C
Operating altitude	<= 2000 m
Relative humidity	0…75 % operation 0…95 % storage
Colour	White
9 mm pitches	4
Width	35.8 mm
Height	96.7 mm
Depth	63 mm
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.600 cm
Package 1 Width	4.000 cm
Package 1 Length	10.000 cm
Package 1 Weight	191.200 g
Unit Type of Package 2	BB1
Number of Units in Package 2	5
Package 2 Height	7.700 cm
Package 2 Width	11.000 cm
Package 2 Length	22.000 cm
Package 2 Weight	1.001 kg
Unit Type of Package 3	S03
Number of Units in Package 3	30
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	6.136 kg
Contractual warranty
Warranty (in months)	18
