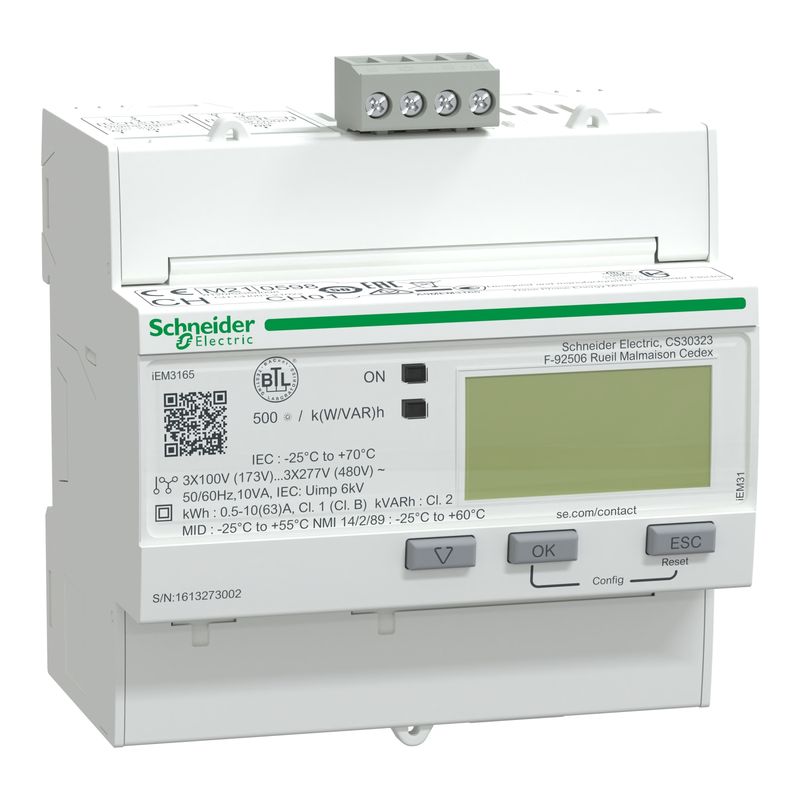

A9MEM3165 | iEM3165 63A Cl 1 MID Energy meter BACnet - Schneider Electric - Image 1

    A9MEM3165 | iEM3165 63A Cl 1 MID Energy meter BACnet – Schneider Electric

    SKU: A9MEM3165

    Original price was: ₹27,707.00.Current price is: ₹14,407.64. Excl. GST

    Dispatch By : 8 Weeks

    Dispatch By : 8 Weeks

    19 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    RangeActi9
    range of productActi9 iEM3000
    Product or component typeEnergy meter
    Device short nameiEM3165
    Market segmentBuildings small building cost management: billing: main incomer
    Buildings small building cost management: billing: sub feeder
    Buildings small building cost management: billing: panelboard
    Buildings medium building cost management: billing: main incomer
    Buildings medium building cost management: billing: sub feeder
    Buildings medium building cost management: billing: panelboard
    Buildings large building cost management: billing: main incomer
    Buildings large building cost management: billing: sub feeder
    Buildings large building cost management: billing: panelboard
    Buildings multi-site cost management: billing: main incomer
    Buildings multi-site cost management: billing: sub feeder
    Buildings multi-site cost management: billing: panelboard
    Data center cost management: billing
    Healthcare cost management: billing
    Industry cost management: billing
    Buildings small building cost management: cost allocation: main incomer
    Buildings small building cost management: cost allocation: sub feeder
    Buildings small building cost management: cost allocation: panelboard
    Buildings medium building cost management: cost allocation: main incomer
    Buildings medium building cost management: cost allocation: sub feeder
    Buildings medium building cost management: cost allocation: panelboard
    Buildings large building cost management: cost allocation: main incomer
    Buildings large building cost management: cost allocation: sub feeder
    Buildings large building cost management: cost allocation: panelboard
    Buildings multi-site cost management: cost allocation: main incomer
    Buildings multi-site cost management: cost allocation: sub feeder
    Buildings multi-site cost management: cost allocation: panelboard
    Data center cost management: cost allocation
    Healthcare cost management: cost allocation
    Industry cost management: cost allocation
    Complementary
    Poles description1P + N
    3P + N
    3P
    Type of measurementActive and reactive energy
    Active and reactive power
    Current
    Voltage
    Metering typeActive, reactive, apparent energy (signed, four quadrant)
    Device applicationMulti-tariff
    Partial meter
    Sub billing
    Accuracy classClass 1 active energy conforming to IEC 62053-21
    Class 1 active energy conforming to IEC 61557-12
    Class B active energy conforming to EN 50470-3
    input typeDirect connection
    [In] rated current63 A
    Rated voltage100…277 V
    173…480 V
    Network frequency60 Hz
    50 Hz
    Technology typeElectronic
    Display typeLCD display
    Sampling rate32 samples/cycle
    Measurement current0…63 A
    Maximum value measured99999999.9 kWh
    tariff inputTariff (4)
    Communication port protocolBACnet at 9.6, 19.2, 38.4, 57.6, 76.8 kbauds, insulation 4000 V
    Communication port supportScrew terminal block: RS485
    Local signallingGreen indicator light: power ON
    Yellow flashing LED: accuracy checking
    alarm: overload
    Number of inputs1 digital 0…5 V/11…40 V 24 V DC
    Number of outputs1 digital (static)
    Output voltage5…40 V DC@50 mA
    Mounting modeClip-on
    Mounting supportDIN rail
    Connections – terminalsScrew terminals 16 mm² cable(s)
    Overvoltage categoryIII
    StandardsBS EN 61557-12:2021
    IEC 61557-12:2021
    EN 61557-12:2021
    BS EN 61326-1
    IEC 61326-1
    EN 61326-1
    BS EN 62052-11:2020
    IEC 62052-11:2020
    EN 62052-11:2020
    BS EN 62053-21
    IEC 62053-21
    EN 62053-21
    BS EN 62052-23
    IEC 62053-23:2020
    EN 62052-23
    BS EN 62052-31:2015
    IEC 62052-31:2015
    EN 62052-31:2015
    BS EN 61010-1:2010
    EN 61010-1:2010
    IEC 61010-1:2010
    UL 61010-1:2010
    BS EN 61010-2-30
    IEC 61010-2-30
    EN 61010-2-30
    UL 61010-2-30
    BS EN 50470-3
    EN 50470-3
    BS EN 50470-1
    EN 50470-1
    ANSI C12.16
    Product certificationsCE conforming to IEC 61010-1 (safety)
    CE conforming to EN 61557-12 (power monitor)
    CE conforming to EN/IEC 61326-1 (EMC)
    UKCA conforming to BS EN 61010-1 (safety)
    UKCA conforming to BS EN 61557-12 (power monitor)
    UKCA conforming to BS EN 61326-1 (EMC)
    CULus conforming to UL 61010-1 (safety)
    CULus conforming to EN 61010-1 (safety)
    EAC conforming to EN 50470-3 (sub-meter)
    RCM conforming to EN 62052 (sub-meter)
    KZ conforming to EN 50470-3 (sub-meter)
    METAS conforming to EN 50470-1 (sub-meter)
    MID conforming to EN 50470-3 (sub-meter)
    MID conforming to EN 50470-1 (sub-meter)
    NMI conforming to NMI M 6-1
    Compatibility codeIEM3165
    Environment
    IP degree of protectionIP40 front panel: conforming to IEC 60529
    IP20 body: conforming to IEC 60529
    Pollution degree2
    Relative humidity5…95 % at 50 °C
    Ambient air temperature for operation-25…55 °C – MID
    -25…70 °C – IEC
    -25…60 °C – IEC
    Ambient air temperature for storage-40…85 °C
    Operating altitude< 3000 m
    ColourWhite
    9 mm pitches10
    Width90 mm
    Height95 mm
    Depth69 mm
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height8.700 cm
    Package 1 Width9.400 cm
    Package 1 Length10.600 cm
    Package 1 Weight458.000 g
    Unit Type of Package 2S03
    Number of Units in Package 230
    Package 2 Height30.000 cm
    Package 2 Width30.000 cm
    Package 2 Length40.000 cm
    Package 2 Weight14.306 kg
    Unit Type of Package 3P12
    Number of Units in Package 3720
    Package 3 Height110.000 cm
    Package 3 Width80.000 cm
    Package 3 Length120.000 cm
    Package 3 Weight352.344 kg
    Contractual warranty
    Warranty (in months)18
