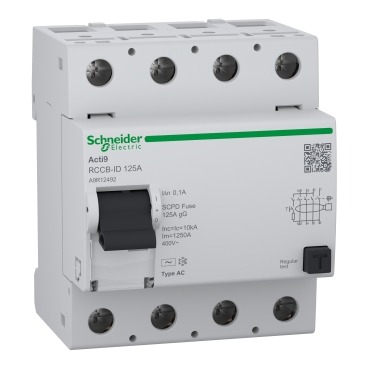

A9R12492 | Acti9 RCCB-ID 4P 125A 100mA AC RCCB – Schneider Electric

Name: A9R12492 | Acti9 RCCB-ID 4P 125A 100mA AC RCCB - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: A9R12492
Price: 66133.68 INR
Availability: InStock

SKU: A9R12492

Original price was: ₹87,018.00.Current price is: ₹66,133.68. Excl. GST

In stock

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric A9R12492 is a rccb, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 125 A, 4 Poles. Buy the A9R12492 | Acti9 RCCB-ID 4P 125A 100mA AC RCCB online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Parameter	Value
Brand	Schneider Electric
Part Number / SKU	A9R12492
Category	RCCB
Series / Model	Acti9
Current Rating	125 A
Poles	4 Poles
Sensitivity	100 mA
Rated Voltage	415V AC (3-phase 4-wire)
Rated Frequency	50 Hz
Max Break Time	≤ 300 ms at rated IΔn (per IEC 61008-1)
RCD Type	Type AC (sinusoidal AC sensitive)
Protection Function	Earth leakage only — pair with upstream MCB for overcurrent
Mounting	35mm DIN rail (EN 60715)
Test Facility	Built-in test button (monthly test per IS 12640)
Standard	IS 8828, IEC 60898-1, IEC 61008, IEC 60947-2
Certifications	BIS certified, CE marked, RoHS compliant

⚡ Key Features

100 mA sensitivity — intermediate sensitivity — used for fire protection and equipment earth-fault monitoring where a 30mA device would nuisance-trip.
125 A rated load current — the RCCB carries this full circuit current continuously while monitoring the live-neutral balance for any earth leakage.
4 Poles — for three-phase four-wire (TN-S/TT) installations; all four conductors pass through the toroidal CT for complete leakage detection.
Earth-leakage protection only — no overload or short-circuit protection; install in series with an appropriately rated MCB for full circuit protection.
Mandatory test button — simulate a leakage fault to verify the trip mechanism without live fault conditions; test monthly per IS 12640 recommendation.
Type AC — designed for purely sinusoidal AC residual currents on standard residential and commercial circuits.
Manufactured to IEC 61008 / IS 12640-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.

❓ Frequently Asked Questions

Q: What is the significance of the 125 A rating on the A9R12492?

A: The 125 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: Why is the 100 mA sensitivity specified on the A9R12492 and when should you choose a different rating?

A: 100 mA is the residual current at which the A9R12492 will trip within 300ms. A 30mA sensitivity provides additional shock protection (mandatory for socket circuits per IS 732). 100mA is used for fire protection (no shock protection). 300mA protects feeders without nuisance tripping. Choose based on the circuit’s risk profile — never use >30mA for socket outlet circuits in wet or high-risk locations.

Q: Will the A9R12492 trip on earth faults from variable frequency drives (VFDs)?

A: VFDs, LED drivers, and switched-mode power supplies generate high-frequency leakage currents that can cause nuisance tripping in standard Type AC RCCBs. If your installation includes VFDs, use a Type A (for pulsating DC components) or Type F/B RCCB. The A9R12492 specification (AC or A type) determines suitability — check the product marking.

Q: How many downstream circuits can be protected under the A9R12492 without nuisance tripping?

A: Downstream MCBs or RCBOs can be connected below the A9R12492, but the total standing leakage current of all connected circuits must not exceed 30–50% of the RCCB’s rated sensitivity — typically 9–15mA for a 30mA device. Each appliance with a filter (computers, VFDs, LED drivers) contributes 0.5–3mA of standing leakage, so limit the count of such loads per RCCB to prevent cumulative leakage causing nuisance tripping.

Q: Which Schneider Electric accessories are compatible with the A9R12492?

A: The Schneider Electric Acti9 series supports snap-on accessories including auxiliary contacts (OF), alarm contacts (SD), shunt trip coils (MX), undervoltage releases (MN), and comb busbars. Accessories are series-specific — always verify compatibility using the Schneider Electric product catalogue before ordering. myelectric.in can advise on the correct accessory part numbers for the A9R12492.
