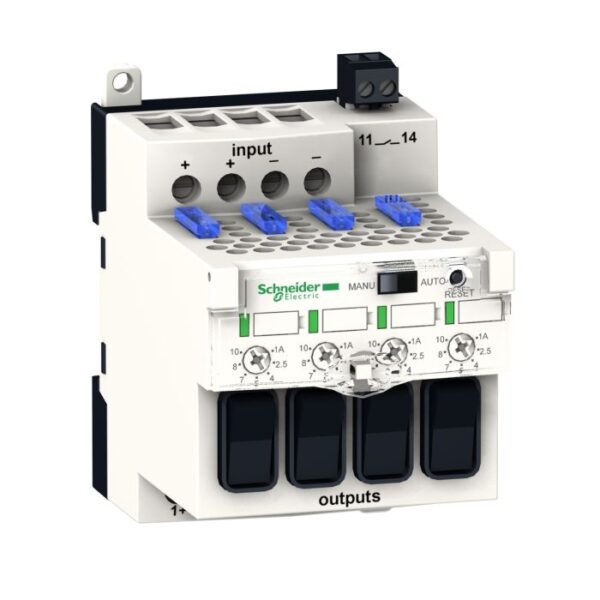

ABL8PRP24100 | Modicon Power Supply,Selectivity Mod.Univ – Schneider Electric

Name: ABL8PRP24100 | Modicon Power Supply,Selectivity Mod.Univ - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: ABL8PRP24100
Price: 25493.76 INR
Availability: BackOrder

SKU: ABL8PRP24100

Original price was: ₹39,834.00.Current price is: ₹25,493.76. Excl. GST

Dispatch By : 14 Weeks

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the Schneider Electric ABL8PRP24100 dc power supply / smps from the Phaseo range delivers dependable performance for stable DC control power. Key ratings include IP20. myelectric.in stocks the ABL8PRP24100 | Modicon Power Supply,Selectivity Mod.Univ for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	ABL8PRP24100
Category	DC Power Supply / SMPS
Main
Range of product	Phaseo
Product or component type	Electronic protection module
Input voltage	24…28.8 V DC
Output voltage	(Uin-0.3) V DC
Maximum output current	10 A per channel, rating: 1/2.5/4/5/7/8/10
Complementary
Capacitive load max	2200 µF
Input voltage limits	19…32 V
Input current	40 A
Number of output channels	4
Output protection type	Against overload, protection technology: 1.3 x In Against short-circuits, protection technology: automatic reset Line protection, protection technology: 1 x 15 A integrated fuse per channel
Complementary function	2-pole breaking by channel
Breaking capacity	1000 A at 32 V DC by fuse
Connections – terminals	For input connection: screw type terminals, connection capacity: 4 x 0.5…4 x 10 mm² AWG 20…AWG 8 For diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² AWG 14 For output connection: screw type terminals, connection capacity: 8 x 0.5…8 x 4 mm² AWG 20…AWG 10
Fixing mode	By clips on 35 mm symmetrical DIN rail, operating position: vertical On panel
Operating altitude	2000 m
Marking	CE
Name of test	Electrostatic discharges conforming to IEC 61000-4-2 Emission conforming to IEC 61000-6-3 Induced electromagnetic field conforming to IEC 61000-4-6 level 3 Radiated electromagnetic field conforming to IEC 61000-4-3 level 3 Rapid transient conforming to IEC 61000-4-4 level 3 Surge conforming to IEC 61000-4-5 level 2 Conducted/radiated emissions conforming to EN 55022 class B Emission conforming to EN 50081-1
Local signalling	1 LED per channel (green/red) for channel status 1 relay for channel status
Product weight	0.47 kg
Environment
Product certifications	RCM EAC
Standards	UL 508 CSA C22.2 No 60950-1
Ambient air temperature for operation	-25…60 °C
Ambient air temperature for storage	-40…85 °C
Environmental characteristic	EMC conforming to IEC 61000-6-3 EMC conforming to IEC 61000-6-2 Safety conforming to IEC 60950-1 Safety conforming to EN/IEC 61204-3
IP degree of protection	IP20 conforming to IEC 60529
Dielectric strength	500 V between input and ground 500 V between output and ground
Overvoltage category	Class II conforming to VDE 0106-1
Relative humidity	0…90 % during operation 0…95 % during storage
Vibration resistance	2 gn (f= 11.9…150 Hz) conforming to IEC 61131-2 3.5 mm (f= 3…11.9 Hz) conforming to IEC 61131-2
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	13.800 cm
Package 1 Width	10.000 cm
Package 1 Length	13.500 cm
Package 1 Weight	570.000 g
Unit Type of Package 2	S04
Number of Units in Package 2	20
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	12.490 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Electronic short-circuit and overload protection — output current-limits on fault and self-recovers automatically on fault clearance; no fuses to replace after a wiring short.
35mm DIN rail mounting (EN 60715) — snaps into the control panel rail alongside MCBs and terminal blocks; no separate bracket or drilling required.
Schneider Electric ABL8 series regulated power supply — designed for industrial control panel duty with built-in overvoltage protection on the output.
Manufactured to IEC 61204 (LV power supplies) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: Can multiple ABL8PRP24100 units be connected in parallel to increase output current?

A: Standard SMPS units like the ABL8PRP24100 are not designed for direct parallel operation without active current-sharing circuitry. Connecting outputs in parallel without current sharing causes one unit to carry the full load while the other idles — leading to premature failure. For higher current requirements, use a single higher-rated PSU or use Schneider Electric-specified redundancy modules that manage load sharing and provide N+1 fault tolerance for critical applications.
