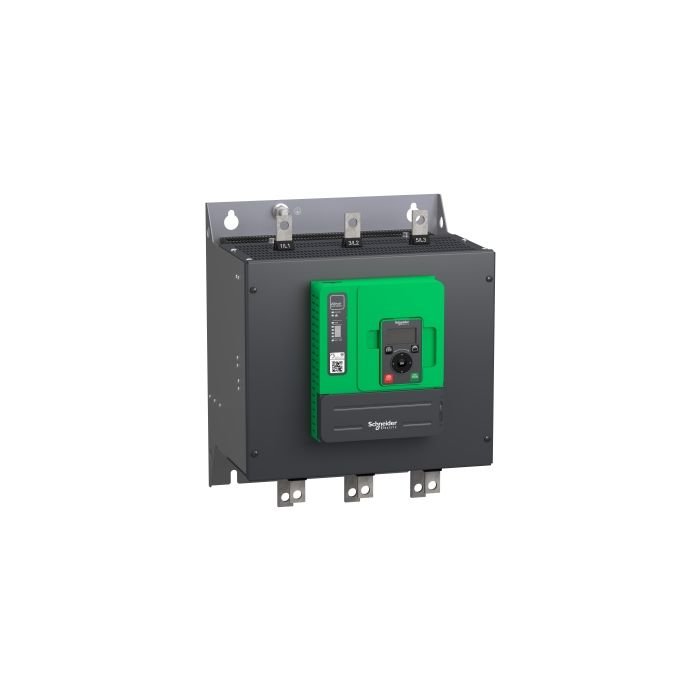

ATS480C32Y | Soft starter ATS480 320A 208 to 690V – Schneider Electric

Name: ATS480C32Y Soft Starter | 320A 208-690V | Schneider Electric
Brand: Schneider Electric
SKU: ATS480C32Y
Price: 150490.50 INR
Availability: BackOrder

SKU: ATS480C32Y

Original price was: ₹401,308.00.Current price is: ₹150,490.50. Excl. GST

Dispatch By : 2 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-52%

VW3A1111 | GRAPHIC DISPLAY TERMINAL – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VW3A1111

-52%

VW3A3607 | ELECTRONIC OPTION CARD PROFIBUS – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: VW3A3607

-52%

VW3A3608 | ELECTRONIC OPTION CARD CANOPEN 2XRJ45 AT – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: VW3A3608

-52%

VW3A3618 | ELECTRONIC OPTION CARD CANOPEN SUBD9 ATV – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: VW3A3618

-47%

VW3A1112 | DOOR MOUNTING KIT FOR GRAPHIC KEYPAD – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VW3A1112

-64%

VW3A3628 | ELECTRONIC OPTION CARD CANOPEN CONNECTOR – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: VW3A3628

The Schneider Electric ATS480C32Y is a soft starter from the Altivar Soft Starter ATS480 range, engineered for motor control and switching in demanding Indian and international installations. Key ratings include Normal duty: 320.0 A, 208–690V AC, IP00. Buy the ATS480C32Y | Soft starter ATS480 320A 208 to 690V online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	ATS480C32Y
Category	Soft Starter
Main
Range of product	Altivar Soft Starter ATS480
Product or component type	Soft starter
Product destination	Asynchronous motors
Product specific application	Process and infrastructures
Device short name	ATS480
Network number of phases	3 phases
Utilisation category	AC-3A AC-53A
Ue power supply voltage	208…690 V – 15…10 %
power supply frequency	50…60 Hz – 20…20 %
[Ie] rated operational current	Normal duty: 320.0 A (at <40 °C)
rated current in heavy duty	250.0 A at 40 °C for heavy duty
Torque control	True
IP degree of protection	IP00
Motor power kW	90.0 kW at 230 V in the motor supply line normal duty 75.0 kW at 230 V in the motor supply line heavy duty 160.0 kW at 400 V in the motor supply line normal duty 132.0 kW at 400 V in the motor supply line heavy duty 160.0 kW at 440 V in the motor supply line normal duty 132.0 kW at 440 V in the motor supply line heavy duty 220.0 kW at 500 V in the motor supply line normal duty 160.0 kW at 500 V in the motor supply line heavy duty 220.0 kW at 525 V in the motor supply line normal duty 160.0 kW at 525 V in the motor supply line heavy duty 250.0 kW at 660 V in the motor supply line normal duty 220.0 kW at 660 V in the motor supply line heavy duty 315.0 kW at 690 V in the motor supply line normal duty 250.0 kW at 690 V in the motor supply line heavy duty 160.0 kW at 230 V to the motor delta terminals normal duty 132.0 kW at 230 V to the motor delta terminals heavy duty 250.0 kW at 400 V to the motor delta terminals normal duty 220.0 kW at 400 V to the motor delta terminals heavy duty
Motor power hp	100.0 hp at 208 V normal duty 75.0 hp at 208 V heavy duty 125.0 hp at 230 V normal duty 100.0 hp at 230 V heavy duty 250.0 hp at 460 V normal duty 200.0 hp at 460 V heavy duty 300.0 hp at 575 V normal duty 250.0 hp at 575 V heavy duty
Option card	Communication module for Profibus DP V1 Communication module for Modbus TCP/EtherNet/IP Communication module for CANopen daisy chain Communication module for CANopen Sub-D Communication module for CANopen open style Communication module for PROFINET
Complementary
Device connection	In the motor supply line To the motor delta terminals
[Us] control circuit voltage	110…230 V AC 50/60 Hz – 15…10 %
Apparent power	0.106 kVA
Integrated motor overload protection	True
motor thermal protection class	Class 10E
Protection type	Phase failure: line Integrated thermal protection: motor Thermal protection: starter Current overload: motor Underload: motor Excessive starting time, locked rotor: motor Motor phase loss: motor Line supply phase loss: line Line supply phase loss: motor Thermal protection: motor
current limiting %In (5 x Ie maximum)	150…700 %
Rated current pwr loss specification	320.0 A
Power loss static current independent	25.0 W
Power loss per device current dependent	882.0 W
Standards	IEC 60947-4-2 UL 60947-4-2 IEC 60664-1
Product certifications	CE cULus CCC UKCA RCM EAC DNV ABS BV CCS
Marking	CE CCC UKCA EAC RCM CULus
[Uc] control circuit voltage	24 V DC
Discrete input number	4
Discrete input type	(STOP) logic inputs, 3500 Ohm (RUN) logic inputs, 3500 Ohm (DI3) programmable as logic input, 3500 Ohm (DI4) programmable as logic input, 3500 Ohm
Input compatibility	STOP: discrete input level 1 PLC conforming to IEC 61131-2 RUN: discrete input level 1 PLC conforming to IEC 61131-2 DI3: discrete input level 1 PLC conforming to IEC 61131-2 DI4: discrete input level 1 PLC conforming to IEC 61131-2
Discrete input logic	Programmable digital input at State 0: < 5 V
Relay output number	3
Relay output type	Relay outputs R1A 1 NO Relay outputs R1B 1 NO Relay outputs RIC NO/NC programmable
Minimum switching current	100 mA at 12 V DC for relay outputs
Maximum switching current	Relay outputs 2 A at 250 V AC Relay outputs 2 A at 30 V DC Relay outputs
Discrete output number	2
Discrete output type	(DQ1) programmable digital output <= 30 V (DQ2) programmable digital output <= 30 V
Output compatibility	Open collector level 1 PLC conforming to IEC 65A-68
Analogue input number	1
Analogue input type	AI1/PTC PTC/Pt 100 temperature probe PTC2 PTC/Pt 100 temperature probe PTC3 PTC/Pt 100 temperature probe
Analogue output number	1
Analogue output type	Current output AQ1: 0…20 mA or 0…10 V, impedance <500 Ohm
Communication port protocol	Modbus serial
Connector type	1 RJ45
Communication data link	Serial
Physical interface	2-wire RS 485
Transmission rate	1200…256000 bit/s
Transmission frame	RTU
Data format	8 bits, configurable odd, even or no parity
Type of polarization	No impedance for Modbus serial
Number of addresses	0…227 for Modbus serial
Method of access	Slave Modbus serial
Function available	External bypass control Pre-heating Smoke extraction Multi-motor cascade Second motor set User management Ports and services hardening Security event logging Cybersecure firmware update Single direction
Display screen available	True
Operating position	Vertical +/- 10 degree
Height	380.0 mm
Width	320.0 mm
Depth	277.0 mm
Product weight	18.2 kg
Environment
Electromagnetic compatibility	Conducted and radiated emissions level A conforming to IEC 60947-4-2 Conducted and radiated emissions with bypass level B conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-11 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Voltage/current impulse level 3 conforming to IEC 61000-4-5
Pollution degree	Level 3
[Uimp] rated impulse withstand voltage	6 kV
[Ui] rated insulation voltage	690 V
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3
Relative humidity	0…95 % without condensation or dripping water conforming to IEC 60068-2-3
Ambient air temperature for operation	40…60 °C (with current derating of 2 % per °C) -15…40 °C (without derating)
Ambient air temperature for storage	-25…70 °C
Operating altitude	<= 1000 m without derating > 1000…4000 m with current derating 1 % per 100 m
Maximum deflection under vibratory load (during operation)	1.5 mm at 2…13 Hz
Maximum deflection under vibratory load (during storage)	1.75 mm at 2…9 Hz
Maximum deflection under vibratory load (during transport)	1.75 mm at 2…9 Hz
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13…200 Hz
Maximum acceleration under vibratory load (during storage)	15 m/s² at 200…500 Hz 10 m/s² at 9…200 Hz
Maximum acceleration under vibratory load (during transport)	15 m/s² at 200…500 Hz 10 m/s² at 9…200 Hz
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under shock load (during storage)	100 m/s² at 11 ms
Maximum acceleration under shock load (during transport)	100 m/s² at 11 ms
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	50.000 cm
Package 1 Width	40.000 cm
Package 1 Length	60.100 cm
Package 1 Weight	26.500 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

320 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
208–690V AC operating voltage — compatible with standard LV distribution voltages used in Indian industrial installations.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

VW3A3720VW3A3607VW3A3628VW3A3608VW3A3618VW3A1111VW3A1112VW3A1114VW3A1104R10VW3A1104R30VW3A1104R50VW3A1104R100VW3A1105LA9F703VZ3V484

❓ Frequently Asked Questions

Q: What is the significance of the 320 A rating on the ATS480C32Y?

A: The 320 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.
