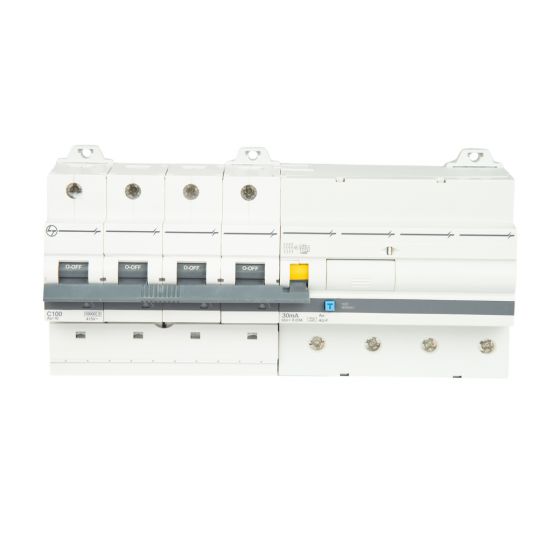

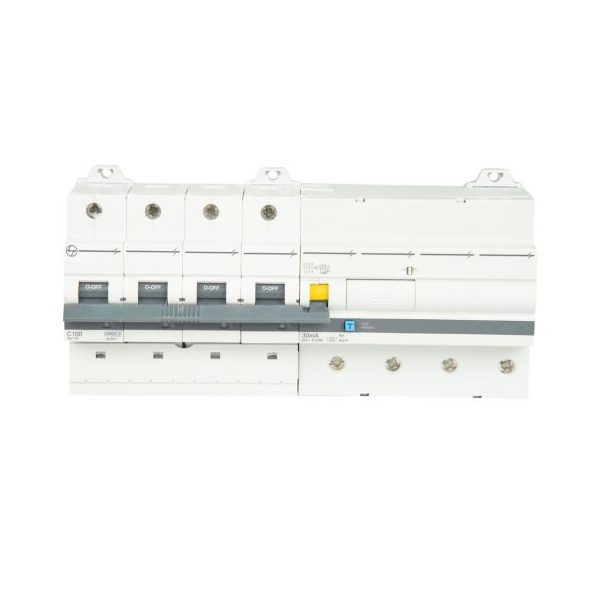

L&T AU RCBO 80A FP 415V AC 10kA 30mA C Curve (AUF3C408003)
Key Features:
- Current Rating: 80A
- Poles: 4 Pole (3 Phase + Neutral)
- Voltage Rating: 415V AC
- Breaking Capacity: 10kA
- Sensitivity: 30mA (Earth Leakage Protection)
- Trip Curve: C Curve (Moderate Inrush Current Handling)
- Mounting Type: DIN Rail Mountable
- Standards: IEC/EN 61009-1, IS/IEC 61009-1
- Brand: L&T (Larsen & Toubro)
- Model: AUF3C408003
Product Overview:
The L&T AU Series RCBO combines overcurrent protection (MCB) and earth leakage protection (RCCB) in a single device. This 80A, 4P (3P+N) RCBO offers reliable protection against short circuits, overloads, and earth faults, making it ideal for industrial and commercial electrical installations.
Applications:
- Industrial Control Panels
- Commercial Buildings
- HVAC Systems
- Motor Protection Circuits
- Electrical Distribution Boards
Technical Specifications:
| Parameter | Specification |
|---|---|
| Type | RCBO (Residual Current Breaker with Overcurrent) |
| Rated Current | 80A |
| Number of Poles | 4 Pole (3P+N) |
| Rated Voltage | 415V AC |
| Breaking Capacity | 10,000A (10kA) |
| Residual Current | 30mA |
| Trip Characteristic | C Curve (5-10 In) |
| Operating Temperature | -5°C to +40°C |
| Termination | Screw Type |
| Standards Compliance | IEC/EN 61009-1, IS/IEC 61009-1 |
Why Choose This RCBO?
- Integrated protection against overload, short circuit and earth leakage
- High breaking capacity for enhanced safety
- Compact design saves space in distribution boards
- Reliable performance from L&T, a trusted brand in electrical protection
- Easy DIN rail mounting for quick installation
Package Contents:
- 1 x L&T AU Series RCBO (AUF3C408003)
