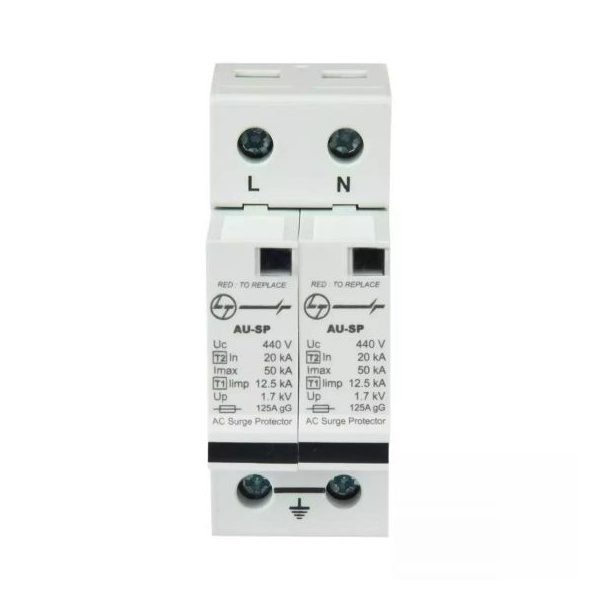

L&T AU SPD Iimp 12.5kA; Imax 50kA 1P+N 240V Type 1+2 (AUSP121PN50)
Key Features:
- Type: Type 1+2 Surge Protection Device (SPD)
- Rated Voltage: 240V AC
- Nominal Discharge Current (In): 12.5kA (Iimp)
- Maximum Discharge Current (Imax): 50kA
- Pole Configuration: 1P+N (Single Phase + Neutral)
- Protection Level: High protection against lightning & surges
- Brand: L&T (Larsen & Toubro)
- Model: AUSP121PN50
- Standards: Complies with IEC 61643-11
- Mounting: DIN Rail Mountable
- Visual Indication: Status indicator for fault detection
Applications:
- Residential & commercial electrical installations
- Protection against lightning strikes & transient overvoltages
- Ideal for main distribution boards (MDBs)
Technical Specifications:
| Voltage Protection Level (Up) | ≤ 1.5kV |
| Response Time | < 25ns |
| Operating Temperature | -40°C to +80°C |
| Connection | Screw Terminal |
| Housing Material | Flame Retardant Thermoplastic |
Why Choose This SPD?
- Dual protection (Type 1+2) for comprehensive surge suppression
- High 50kA discharge capacity for robust performance
- Reliable L&T brand quality with long service life
- Easy DIN rail installation with compact design
Package Includes:
- 1 x L&T AUSP121PN50 SPD Unit
- Installation Manual
