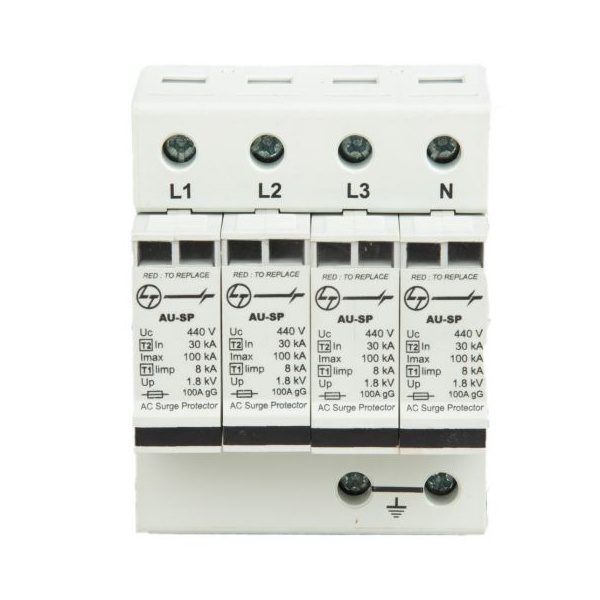

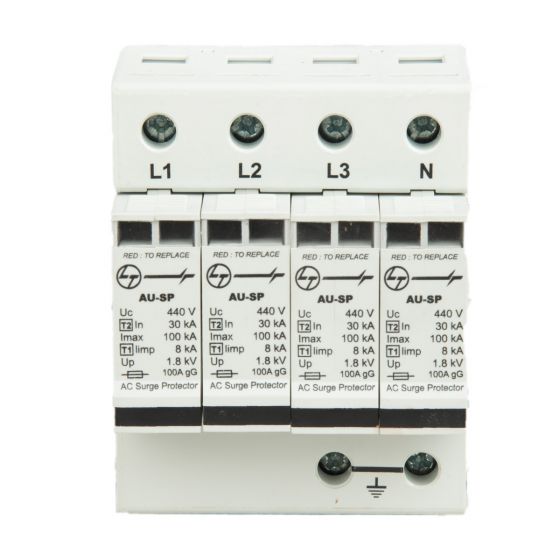

L&T AU SPD Iimp 8kA; Imax 100kA 3P+N 400V AC Type 1+2 (AUSP123PN100)
Key Features:
- Type: Type 1+2 Combined Surge Protection Device (SPD)
- Rated Voltage: 400V AC
- Maximum Discharge Current (Imax): 100kA
- Impulse Current (Iimp): 8kA (10/350μs)
- Poles: 3P+N (3 Phase + Neutral)
- Protection Level: High protection against direct and indirect lightning strikes
- Brand: Larsen & Toubro (L&T)
- Model: AUSP123PN100
- Mounting: DIN Rail Mountable
- Standards: IEC 61643-11, IS/IEC 62305
- Visual Indication: Status indicator for fault detection
Applications:
- Industrial power distribution panels
- Commercial buildings and data centers
- Residential complexes with high surge protection needs
- Telecommunication and electrical substations
Why Choose This SPD?
- Robust protection against lightning and transient overvoltages
- High durability and reliability from L&T, a trusted brand
- Easy installation and maintenance
- Compliant with international safety standards
Technical Specifications:
| Parameter | Value |
|---|---|
| Rated Voltage (Un) | 400V AC |
| Maximum Continuous Operating Voltage (Uc) | 440V AC |
| Nominal Discharge Current (In) | 20kA (8/20μs) |
| Impulse Current (Iimp) | 8kA (10/350μs) |
| Maximum Discharge Current (Imax) | 100kA (8/20μs) |
| Voltage Protection Level (Up) | ≤ 2.5kV |
| Response Time | < 25ns |
| Operating Temperature | -40°C to +80°C |
Installation & Safety:
Ensure installation by a certified electrician for optimal performance. Follow L&T’s guidelines and local electrical codes for proper wiring and earthing.
Warranty & Support:
This product comes with a manufacturer warranty. For technical support or queries, contact our team at support@myelectric.in.
“`
