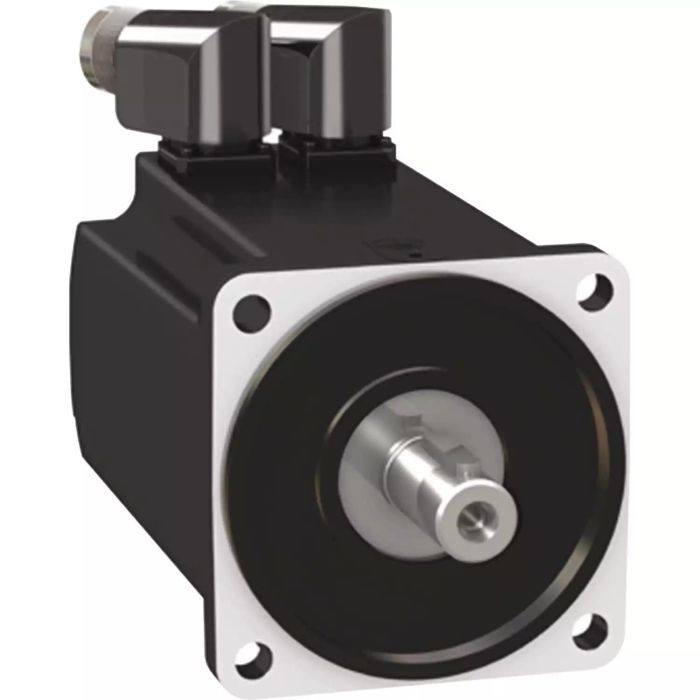

BMH1002P16F2A | Motor 100Mm Iec 6,2Nm Ip54 2060W Key – Schneider Electric

Name: BMH1002P16F2A | Motor 100Mm Iec 6,2Nm Ip54 2060W Key - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: BMH1002P16F2A
Price: 83447.22 INR
Availability: BackOrder

SKU: BMH1002P16F2A

Original price was: ₹181,407.00.Current price is: ₹83,447.22. Excl. GST

Dispatch By : 3 Weeks

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-64%

VW3M8102R50 | Encoder Cable M23-Rj45, 5M – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VW3M8102R50

-64%

VW3M5101R50 | Bsh Motor Cable 1,5Ã‚Â² 5M – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VW3M5101R50

Sourced through authorised channels, the Schneider Electric BMH1002P16F2A electrical component delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include IP54 standard. myelectric.in stocks the BMH1002P16F2A | Motor 100Mm Iec 6,2Nm Ip54 2060W Key for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	BMH1002P16F2A
Category	Electrical Component
Main
Device short name	BMH
Product or component type	Servo motor
Maximum mechanical speed	6000 rpm
Continuous stall torque	6.2 N.m for LXM32.D18N4 at 6 A, 400 V, three phase 6.2 N.m for LXM32.D18N4 at 6 A, 480 V, three phase
Peak stall torque	18.4 N.m for LXM32.D18N4 at 6 A, 400 V, three phase 18.4 N.m for LXM32.D18N4 at 6 A, 480 V, three phase
Nominal output power	1600 W for LXM32.D18N4 at 6 A, 400 V, three phase 1600 W for LXM32.D18N4 at 6 A, 480 V, three phase
Nominal torque	3.9 N.m for LXM32.D18N4 at 6 A, 400 V, three phase 3.9 N.m for LXM32.D18N4 at 6 A, 480 V, three phase
Nominal speed	4000 rpm for LXM32.D18N4 at 6 A, 400 V, three phase 4000 rpm for LXM32.D18N4 at 6 A, 480 V, three phase
Product compatibility	LXM32.D18N4 at 400…480 V three phase
Shaft end	Keyed
IP degree of protection	IP54 standard
Speed feedback resolution	32768 points/turn
Holding brake	With
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors
Complementary
Range compatibility	Lexium 32
[Us] rated supply voltage	480 V
Network number of phases	Three phase
Continuous stall current	5.04 A
Continuous power	2.36 W
Maximum current Irms	17.5 A for LXM32.D18N4
Maximum permanent current	18.23 A
Second shaft	Without second shaft end
Shaft diameter	19 mm
Shaft length	40 mm
Key width	30 mm
Feedback type	Single turn SinCos Hiperface
Holding torque	5.5 N.m holding brake
Motor flange size	100 mm
Number of motor stacks	2
Torque constant	1.19 N.m/A at 120 °C
Back emf constant	77 V/krpm at 120 °C
Number of motor poles	5.0
Rotor inertia	6.77 kg.cm²
Stator resistance	1.51 Ohm at 20 °C
Stator inductance	4.12 mH at 20 °C
Stator electrical time constant	5 ms at 20 °C
Maximum radial force Fr	990 N at 1000 rpm 790 N at 2000 rpm 690 N at 3000 rpm 620 N at 4000 rpm 580 N at 5000 rpm
Maximum axial force Fa	0.2 x Fr
Brake pull-in power	12 W
Type of cooling	Natural convection
Length	202.3 mm
Centring collar diameter	95 mm
Centring collar depth	3.5 mm
Number of mounting holes	4
Mounting holes diameter	9 mm
Circle diameter of the mounting holes	115 mm
Product weight	6.4 kg
Sizing reference	BMH1002P
Network number of phases	3
Accuracy error [angular]	4.8 °
Temperature copper hot	135 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	17.5 A
Inertia	0.49 kg.cm² of brake 6.279 kg.cm² of motor
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	22.000 cm
Package 1 Width	20.000 cm
Package 1 Length	40.000 cm
Package 1 Weight	6.780 kg
Unit Type of Package 2	P06
Number of Units in Package 2	18
Package 2 Height	140.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	130.000 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

IP54 enclosure rating — confirmed ingress protection against dust and moisture for the installation environment.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

VW3M8223R30VW3M3302VW3M8502R03VW3M3401VW3M3402VW3M3403VW3M3501VW3M8801R30VW3M8802R15VW3M5101R100VW3M5101R150VW3M5101R200VW3M5101R250VW3M5101R30VW3M5101R50VW3M5101R500VW3M5101R750VW3M8102R100VW3M8102R150VW3M8102R200VW3M8102R250VW3M8102R30VW3M8102R50VW3M8102R500VW3M8102R750VW3A7604R07VW3A7604R30VW3A7704VW3A7705

❓ Frequently Asked Questions

Q: What environments is the IP54 rating on the BMH1002P16F2A suitable for?

A: IP54 means the enclosure is dust-protected (limited ingress) (first digit: 5) and protected against water splash from all directions (second digit: 4). This makes the BMH1002P16F2A suitable for indoor-outdoor transitional areas, splash-prone locations. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.
