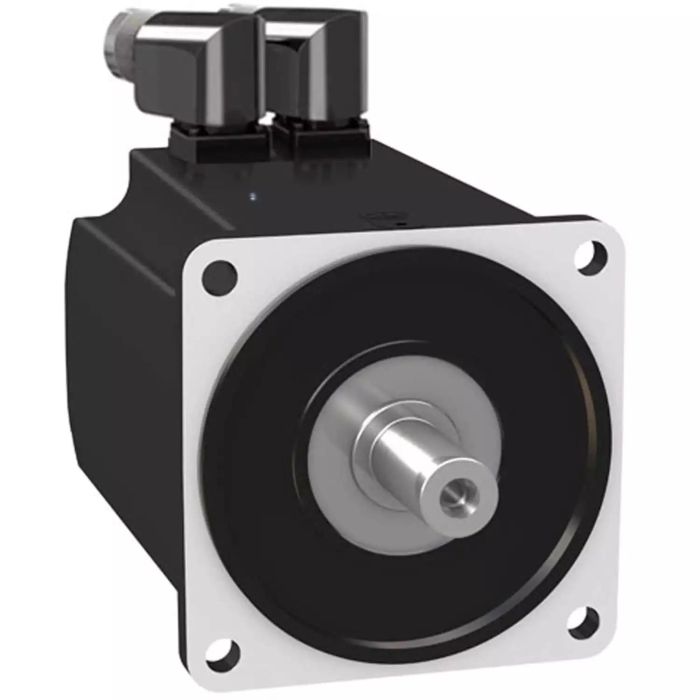

BMH1402P16A2A | Motor 140Mm Iec 18,5Nm Ip54 3900W Key – Schneider Electric

Name: Schneider Electric BMH1402P16A2A 140mm Motor 3900W
Brand: Schneider Electric
SKU: BMH1402P16A2A
Price: 104501.42 INR
Availability: BackOrder

SKU: BMH1402P16A2A

Original price was: ₹227,177.00.Current price is: ₹104,501.42. Excl. GST

Dispatch By : 3 Weeks

12 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-64%

VW3M8102R50 | Encoder Cable M23-Rj45, 5M – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VW3M8102R50

-64%

VW3M5101R50 | Bsh Motor Cable 1,5Ã‚Â² 5M – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VW3M5101R50

The Schneider Electric BMH1402P16A2A is an electrical component, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include IP54 standard. Buy the BMH1402P16A2A | Motor 140Mm Iec 18,5Nm Ip54 3900W Key online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	BMH1402P16A2A
Category	Electrical Component
Main
Device short name	BMH
Product or component type	Servo motor
Maximum mechanical speed	4000 rpm
Continuous stall torque	18.5 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 18.5 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
Peak stall torque	50.3 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 50.3 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
Nominal output power	3500 W for LXM32.D72N4 at 24 A, 400 V, three phase 3500 W for LXM32.D72N4 at 24 A, 480 V, three phase
Nominal torque	12.2 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 12.2 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
Nominal speed	3000 rpm for LXM32.D72N4 at 24 A, 400 V, three phase 3000 rpm for LXM32.D72N4 at 24 A, 480 V, three phase
Product compatibility	LXM32.D72N4 at 400…480 V three phase
Shaft end	Keyed
IP degree of protection	IP54 standard
Speed feedback resolution	32768 points/turn
Holding brake	Without
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors
Complementary
Range compatibility	Lexium 32
[Us] rated supply voltage	480 V
Network number of phases	Three phase
Continuous stall current	16.83 A
Continuous power	4.44 W
Maximum current Irms	46.22 A for LXM32.D72N4
Maximum permanent current	57.4 A
Second shaft	Without second shaft end
Shaft diameter	24 mm
Shaft length	50 mm
Key width	40 mm
Feedback type	Single turn SinCos Hiperface
Motor flange size	140 mm
Number of motor stacks	2
Torque constant	1.24 N.m/A at 120 °C
Back emf constant	70.7 V/krpm at 120 °C
Number of motor poles	5.0
Rotor inertia	32 kg.cm²
Stator resistance	0.23 Ohm at 20 °C
Stator inductance	2.6 mH at 20 °C
Stator electrical time constant	13 ms at 20 °C
Maximum radial force Fr	2240 N at 1000 rpm 1780 N at 2000 rpm 1550 N at 3000 rpm
Maximum axial force Fa	0.2 x Fr
Type of cooling	Natural convection
Length	192 mm
Centring collar diameter	130 mm
Centring collar depth	3.5 mm
Number of mounting holes	4
Mounting holes diameter	11 mm
Circle diameter of the mounting holes	165 mm
Product weight	12 kg
Sizing reference	BMH1402P
Network number of phases	3
Accuracy error [angular]	4.8 °
Temperature copper hot	135 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	46.22 A
Inertia	0.0 kg.cm² of brake 32.003 kg.cm² of motor
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	26.000 cm
Package 1 Width	20.000 cm
Package 1 Length	59.500 cm
Package 1 Weight	13.515 kg
Unit Type of Package 2	P06
Number of Units in Package 2	12
Package 2 Height	105.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	171.000 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

IP54 enclosure rating — confirmed ingress protection against dust and moisture for the installation environment.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

VW3M8223R30VW3M3302VW3M8502R03VW3M3401VW3M3402VW3M3403VW3M3501VW3M8801R30VW3M8802R15VW3M5101R100VW3M5101R150VW3M5101R200VW3M5101R250VW3M5101R30VW3M5101R50VW3M5101R500VW3M5101R750VW3M8102R100VW3M8102R150VW3M8102R200VW3M8102R250VW3M8102R30VW3M8102R50VW3M8102R500VW3M8102R750VW3A7604R07VW3A7604R30VW3A7704VW3A7705

❓ Frequently Asked Questions

Q: What environments is the IP54 rating on the BMH1402P16A2A suitable for?

A: IP54 means the enclosure is dust-protected (limited ingress) (first digit: 5) and protected against water splash from all directions (second digit: 4). This makes the BMH1402P16A2A suitable for indoor-outdoor transitional areas, splash-prone locations. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.
