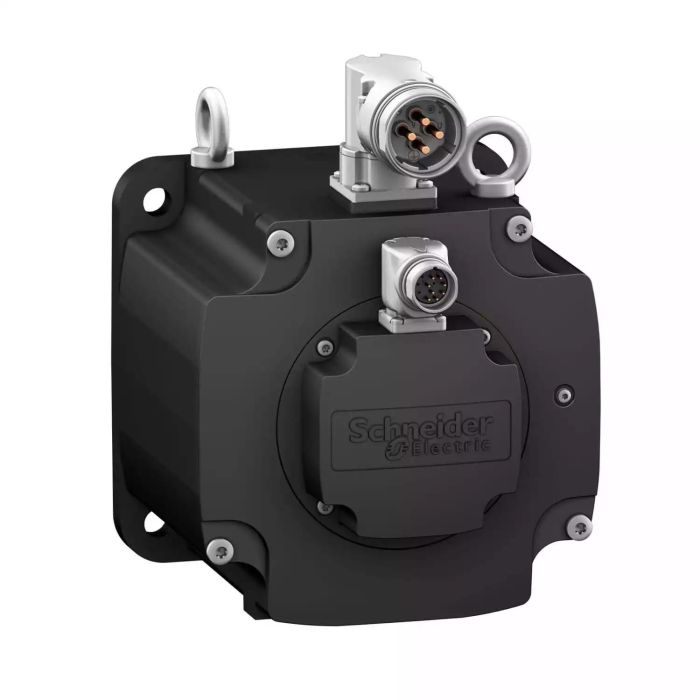

BMH1901P31A2A | MOTOR 190MM IEC 30NM IP65/67 5.2KW KEY – Schneider Electric

Name: Schneider Electric BMH1901P31A2A IEC Motor 5.2KW 30Nm
Brand: Schneider Electric
SKU: BMH1901P31A2A
Price: 198715.40 INR
Availability: BackOrder

SKU: BMH1901P31A2A

Original price was: ₹431,990.00.Current price is: ₹198,715.40. Excl. GST

Dispatch By : 3 Weeks

14 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-64%

VW3M8102R50 | Encoder Cable M23-Rj45, 5M – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VW3M8102R50

Looking for the BMH1901P31A2A | MOTOR 190MM IEC 30NM IP65/67 5.2KW KEY? This genuine Schneider Electric electrical component is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include IP65 standard. Order part number BMH1901P31A2A from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	BMH1901P31A2A
Category	Electrical Component
Main
Device short name	BMH
Product or component type	Servo motor
Maximum mechanical speed	4000 rpm
Continuous stall torque	30 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 30 N.m for LXM32.D72N4 at 24 A, 480 V, three phase 30 N.m for LXM32MD85N4 at 32 A, 400 V, three phase 30 N.m for LXM32MD85N4 at 32 A, 480 V, three phase 30 N.m for LXM32MC10N4 at 40 A, 400 V, three phase 30 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Peak stall torque	77.7 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 77.7 N.m for LXM32.D72N4 at 24 A, 480 V, three phase 86.6 N.m for LXM32MD85N4 at 32 A, 400 V, three phase 86.6 N.m for LXM32MD85N4 at 32 A, 480 V, three phase 89.7 N.m for LXM32MC10N4 at 40 A, 400 V, three phase 89.7 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal output power	4800 W for LXM32.D72N4 at 24 A, 400 V, three phase 4800 W for LXM32.D72N4 at 24 A, 480 V, three phase 5180 W for LXM32MD85N4 at 32 A, 400 V, three phase 5180 W for LXM32MD85N4 at 32 A, 480 V, three phase 5180 W for LXM32MC10N4 at 40 A, 400 V, three phase 5180 W for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal torque	18.4 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 18.4 N.m for LXM32.D72N4 at 24 A, 480 V, three phase 16.5 N.m for LXM32MD85N4 at 32 A, 400 V, three phase 16.5 N.m for LXM32MD85N4 at 32 A, 480 V, three phase 16.5 N.m for LXM32MC10N4 at 40 A, 400 V, three phase 16.5 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal speed	2500 rpm for LXM32.D72N4 at 24 A, 400 V, three phase 2500 rpm for LXM32.D72N4 at 24 A, 480 V, three phase 3000 rpm for LXM32MD85N4 at 32 A, 400 V, three phase 3000 rpm for LXM32MD85N4 at 32 A, 480 V, three phase 3000 rpm for LXM32MC10N4 at 40 A, 400 V, three phase 3000 rpm for LXM32MC10N4 at 40 A, 480 V, three phase
Product compatibility	LXM32.D72N4 at 400…480 V three phase
Shaft end	Keyed
IP degree of protection	IP65 standard IP67 with IP67 kit
Speed feedback resolution	131072 points/turn
Holding brake	Without
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors
Complementary
Range compatibility	Lexium 32
[Us] rated supply voltage	480 V
Network number of phases	Three phase
Continuous stall current	23.2 A
Continuous power	5.24 W
Maximum current Irms	89.61 A for LXM32.D72N4
Maximum permanent current	89.6 A
Second shaft	Without second shaft end
Shaft diameter	38 mm
Shaft length	80 mm
Key width	70 mm
Feedback type	Single turn SinCos Hiperface
Motor flange size	190 mm
Number of motor stacks	1
Torque constant	1.3 N.m/A at 120 °C
Back emf constant	87.6 V/krpm at 120 °C
Number of motor poles	5.0
Rotor inertia	67.7 kg.cm²
Stator resistance	0.24 Ohm at 20 °C
Stator inductance	2.54 mH at 20 °C
Stator electrical time constant	21.2 ms at 20 °C
Maximum radial force Fr	3730 N at 1000 rpm
Maximum axial force Fa	0.2 x Fr
Type of cooling	Natural convection
Length	190 mm
Centring collar diameter	180 mm
Centring collar depth	4 mm
Number of mounting holes	4
Mounting holes diameter	14 mm
Circle diameter of the mounting holes	215 mm
Product weight	19 kg
Sizing reference	BMH1901P
Network number of phases	3
Accuracy error [angular]	1.4 °
Temperature copper hot	135 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	89.61 A
Inertia	0.0 kg.cm² of brake 67.72 kg.cm² of motor
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	30.0 cm
Package 1 Width	40.0 cm
Package 1 Length	79.5 cm
Package 1 Weight	19.5 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

IP65 enclosure rating — confirmed ingress protection against dust and moisture for the installation environment.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

VW3M8223R30VW3M3302VW3M8502R03VW3M3401VW3M3402VW3M3403VW3M3501VW3M8801R30VW3M8802R15VW3M5103R100VW3M5103R150VW3M5103R200VW3M5103R250VW3M5103R30VW3M5103R50VW3M5103R500VW3M5105R100VW3M5105R150VW3M5105R250VW3M5105R50VW3M8102R100VW3M8102R150VW3M8102R200VW3M8102R250VW3M8102R30VW3M8102R50VW3M8102R500VW3M8102R750VW3A7604R07VW3A7604R30VW3A7704VW3A7705

❓ Frequently Asked Questions

Q: What environments is the IP65 rating on the BMH1901P31A2A suitable for?

A: IP65 means the enclosure is dust-tight (complete protection) (first digit: 6) and protected against water protection (second digit: 5). This makes the BMH1901P31A2A suitable for indoor-outdoor transitional areas, splash-prone locations. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.
