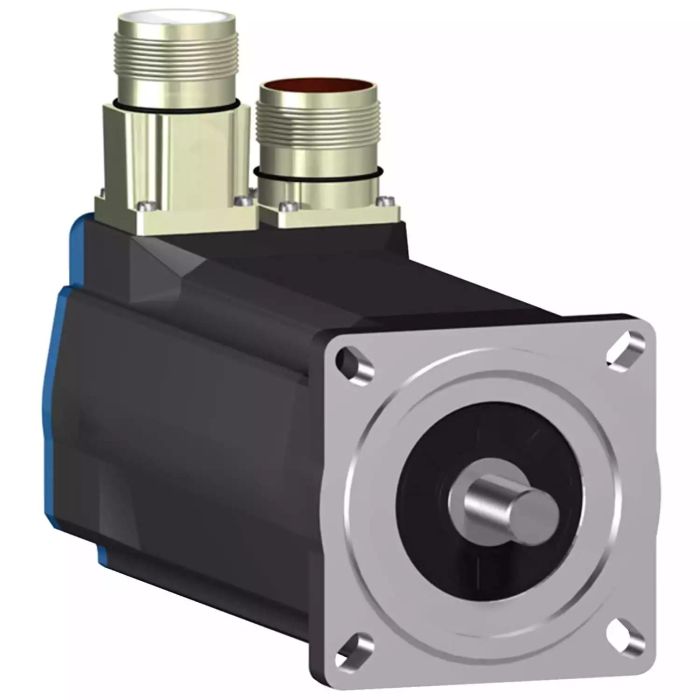

BSH0703P11A2A | Bsh Motor Iec 70Mm 2,8 Nm With Key Ip50 – Schneider Electric

Name: BSH0703P11A2A | Bsh Motor Iec 70Mm 2,8 Nm With Key Ip50 - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: BSH0703P11A2A
Price: 80361.08 INR
Availability: BackOrder

SKU: BSH0703P11A2A

Original price was: ₹174,698.00.Current price is: ₹80,361.08. Excl. GST

Dispatch By : 3 Weeks

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the BSH0703P11A2A | Bsh Motor Iec 70Mm 2,8 Nm With Key Ip50? This genuine Schneider Electric electrical component is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include IP50 standard. Order part number BSH0703P11A2A from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	BSH0703P11A2A
Category	Electrical Component
Main
Device short name	BSH
Product or component type	Servo motor
Maximum mechanical speed	8000 rpm
Continuous stall torque	2.83 N.m for LXM15LD21M3, 230 V, single phase 1.1 N.m for LXM15LU60N4, 480 V, three phase 1.1 N.m for LXM15LU60N4, 400 V, three phase 1.5 N.m for LXM15LU60N4, 230 V, three phase 2.23 N.m for LXM15LD13M3, 230 V, three phase 2.4 N.m for LXM15LD10N4, 230 V, three phase 2.4 N.m for LXM15LD10N4, 400 V, three phase 2.4 N.m for LXM15LD10N4, 480 V, three phase 2.83 N.m for LXM15LD17N4, 230 V, three phase 2.83 N.m for LXM15LD17N4, 400 V, three phase 2.83 N.m for LXM15LD17N4, 480 V, three phase 2.83 N.m for LXM15LD21M3, 230 V, three phase 2.8 N.m for LXM05AD17M2, 200…240 V, single phase 2.8 N.m for LXM05AD17M3X, 200…240 V, three phase 2.8 N.m for LXM05AD22N4, 380…480 V, three phase 2.8 N.m for LXM05AD28M2, 200…240 V, single phase 2.8 N.m for LXM05BD17M2, 200…240 V, single phase 2.8 N.m for LXM05BD17M3X at 6 A, 200…240 V, three phase 2.8 N.m for LXM05BD22N4 at 6 A, 380…480 V, three phase 2.8 N.m for LXM05BD28M2, 200…240 V, single phase 2.8 N.m for LXM05CD17M2, 200…240 V, single phase 2.8 N.m for LXM05CD17M3X, 200…240 V, three phase 2.8 N.m for LXM05CD22N4, 380…480 V, three phase 2.8 N.m for LXM05CD28M2, 200…240 V, single phase 3.1 N.m for LXM32.D18N4 at 6 A, 400 V, three phase 3.1 N.m for LXM32.D18N4 at 6 A, 480 V, three phase
Peak stall torque	5.99 N.m for LXM15LD21M3, 230 V, single phase 7.16 N.m for LXM05AD17M2, 200…240 V, single phase 10.3 N.m for LXM05AD28M2, 200…240 V, single phase 7.16 N.m for LXM05BD17M2, 200…240 V, single phase 10.3 N.m for LXM05BD28M2, 200…240 V, single phase 7.16 N.m for LXM05CD17M2, 200…240 V, single phase 10.3 N.m for LXM05CD28M2, 200…240 V, single phase 3.3 N.m for LXM15LU60N4, 480 V, three phase 3.3 N.m for LXM15LU60N4, 400 V, three phase 3.3 N.m for LXM15LU60N4, 230 V, three phase 6 N.m for LXM15LD13M3, 230 V, three phase 5.3 N.m for LXM15LD10N4, 230 V, three phase 5.3 N.m for LXM15LD10N4, 400 V, three phase 5.3 N.m for LXM15LD10N4, 480 V, three phase 7.71 N.m for LXM15LD17N4, 230 V, three phase 7.71 N.m for LXM15LD17N4, 400 V, three phase 7.71 N.m for LXM15LD17N4, 480 V, three phase 9.28 N.m for LXM15LD21M3 at 6 A, 230 V, three phase 7.16 N.m for LXM05AD17M3X at 6 A, 200…240 V, three phase 8.75 N.m for LXM05AD22N4, 380…480 V, three phase 7.16 N.m for LXM05BD17M3X, 200…240 V, three phase 8.75 N.m for LXM05BD22N4, 380…480 V, three phase 7.16 N.m for LXM05CD17M3X, 200…240 V, three phase 8.75 N.m for LXM05CD22N4, 380…480 V, three phase 11.3 N.m for LXM32.D18N4 at 6 A, 400 V, three phase 11.3 N.m for LXM32.D18N4 at 6 A, 480 V, three phase
Nominal output power	750 W for LXM05AD17M2, 200…240 V, single phase 750 W for LXM05AD28M2, 200…240 V, single phase 750 W for LXM05BD17M2, 200…240 V, single phase 750 W for LXM05BD28M2, 200…240 V, single phase 750 W for LXM05CD17M2, 200…240 V, single phase 750 W for LXM05CD28M2, 200…240 V, single phase 750 W for LXM15LD21M3, 230 V, single phase 1250 W for LXM15LD10N4, 400 V, three phase 1300 W for LXM15LD17N4, 400 V, three phase 1400 W for LXM15LD17N4, 480 V, three phase 1500 W for LXM15LD10N4, 480 V, three phase 350 W for LXM15LU60N4, 230 V, three phase 700 W for LXM15LD13M3, 230 V, three phase 700 W for LXM15LU60N4, 400 V, three phase 750 W for LXM05AD17M3X, 200…240 V, three phase 750 W for LXM05AD22N4, 380…480 V, three phase 750 W for LXM05BD17M3X, 200…240 V, three phase 750 W for LXM05BD22N4 at 6 A, 380…480 V, three phase 750 W for LXM05CD17M3X at 6 A, 200…240 V, three phase 750 W for LXM05CD22N4, 380…480 V, three phase 750 W for LXM15LD10N4, 230 V, three phase 750 W for LXM15LD17N4, 230 V, three phase 750 W for LXM15LD21M3, 230 V, three phase 950 W for LXM15LU60N4, 480 V, three phase 1300 W for LXM32.D18N4 at 6 A, 400 V, three phase 1300 W for LXM32.D18N4 at 6 A, 480 V, three phase
Nominal torque	2.4 N.m for LXM05AD17M2, 200…240 V, single phase 2.4 N.m for LXM05AD28M2, 200…240 V, single phase 2.4 N.m for LXM05BD17M2, 200…240 V, single phase 2.4 N.m for LXM05BD28M2, 200…240 V, single phase 2.4 N.m for LXM05CD17M2, 200…240 V, single phase 2.4 N.m for LXM05CD28M2, 200…240 V, single phase 2.4 N.m for LXM15LD21M3, 230 V, single phase 1.12 N.m for LXM15LU60N4, 230 V, three phase 1.12 N.m for LXM15LU60N4, 400 V, three phase 1.12 N.m for LXM15LU60N4, 480 V, three phase 1.8 N.m for LXM15LD10N4, 480 V, three phase 1.96 N.m for LXM15LD17N4, 480 V, three phase 2 N.m for LXM15LD10N4, 400 V, three phase 2 N.m for LXM15LD17N4, 400 V, three phase 2.23 N.m for LXM15LD13M3, 230 V, three phase 2.4 N.m for LXM05AD17M3X, 200…240 V, three phase 2.4 N.m for LXM05AD22N4, 380…480 V, three phase 2.4 N.m for LXM05BD17M3X at 6 A, 200…240 V, three phase 2.4 N.m for LXM05BD22N4 at 6 A, 380…480 V, three phase 2.4 N.m for LXM05CD17M3X, 200…240 V, three phase 2.4 N.m for LXM05CD22N4, 380…480 V, three phase 2.4 N.m for LXM15LD10N4, 230 V, three phase 2.4 N.m for LXM15LD17N4, 230 V, three phase 2.4 N.m for LXM15LD21M3, 230 V, three phase 2.44 N.m for LXM32.D18N4 at 6 A, 400 V, three phase 2.44 N.m for LXM32.D18N4 at 6 A, 480 V, three phase
Nominal speed	3000 rpm for LXM15LD13M3, 230 V, three phase 3000 rpm for LXM05AD17M2, 200…240 V, single phase 3000 rpm for LXM05BD17M2, 200…240 V, single phase 3000 rpm for LXM05CD17M2, 200…240 V, single phase 3000 rpm for LXM05AD17M3X, 200…240 V, three phase 3000 rpm for LXM05BD17M3X, 200…240 V, three phase 3000 rpm for LXM05CD17M3X, 200…240 V, three phase 3000 rpm for LXM15LU60N4, 230 V, three phase 8000 rpm for LXM15LD10N4, 480 V, three phase 8000 rpm for LXM15LU60N4, 480 V, three phase 3000 rpm for LXM15LD10N4, 230 V, three phase 6000 rpm for LXM15LD10N4, 400 V, three phase 3000 rpm for LXM05AD28M2, 200…240 V, single phase 3000 rpm for LXM05BD28M2, 200…240 V, single phase 3000 rpm for LXM05CD28M2, 200…240 V, single phase 3000 rpm for LXM15LD21M3, 230 V, single phase 3000 rpm for LXM05AD22N4, 380…480 V, three phase 3000 rpm for LXM05BD22N4 at 6 A, 380…480 V, three phase 3000 rpm for LXM05CD22N4 at 6 A, 380…480 V, three phase 3000 rpm for LXM15LD17N4, 230 V, three phase 3000 rpm for LXM15LD21M3, 230 V, three phase 6000 rpm for LXM15LD17N4, 400 V, three phase 6000 rpm for LXM15LU60N4, 400 V, three phase 7000 rpm for LXM15LD17N4, 480 V, three phase 5000 rpm for LXM32.D18N4 at 6 A, 400 V, three phase 5000 rpm for LXM32.D18N4 at 6 A, 480 V, three phase
Product compatibility	LXM05AD17M2 at 200…240 V single phase LXM05AD28M2 at 200…240 V single phase LXM05BD17M2 at 200…240 V single phase LXM05BD28M2 at 200…240 V single phase LXM05CD17M2 at 200…240 V single phase LXM05CD28M2 at 200…240 V single phase LXM15LD21M3 at 230 V single phase LXM15LU60N4 at 230 V three phase LXM15LD13M3 at 230 V three phase LXM15LU60N4 at 400 V three phase LXM15LU60N4 at 480 V three phase LXM15LD10N4 at 400 V three phase LXM05AD17M3X at 200…240 V three phase LXM05BD17M3X at 200…240 V three phase LXM05CD17M3X at 200…240 V three phase LXM15LD10N4 at 230 V three phase LXM15LD10N4 at 480 V three phase LXM15LD21M3 at 230 V three phase LXM15LD17N4 at 230 V three phase LXM05AD22N4 at 380…480 V three phase LXM05BD22N4 at 380…480 V three phase LXM05CD22N4 at 380…480 V three phase LXM15LD17N4 at 400 V three phase LXM15LD17N4 at 480 V three phase LXM32.D18N4 at 400 V three phase LXM32.D18N4 at 480 V three phase
Shaft end	Keyed
IP degree of protection	IP50 standard
Speed feedback resolution	131072 points/turn
Holding brake	Without
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors
Complementary
Range compatibility	Lexium 15 Lexium 05 Lexium 32
supply voltage max	480 V
Network number of phases	Three phase
Continuous stall current	4.1 A
maximum continuous power	1.7 W
Maximum current Irms	15.2 A for LXM15LD13M3 15.2 A for LXM15LD21M3 15.2 A for LXM15LD17N4 15.2 A for LXM15LU60N4 15.2 A for LXM15LD10N4 17 A for LXM05AD17M2 17 A for LXM05AD28M2 17 A for LXM05AD17M3X 17 A for LXM05AD22N4 17 A for LXM05BD17M2 17 A for LXM05BD28M2 17 A for LXM05BD17M3X 17 A for LXM05BD22N4 17 A for LXM05CD17M2 17 A for LXM05CD28M2 17 A for LXM05CD17M3X 17 A for LXM05CD22N4 17 A for LXM32.D18N4
Maximum permanent current	17 A
Switching frequency	8 kHz
Second shaft	Without second shaft end
Shaft diameter	14 mm
Shaft length	30 mm
Key width	20 mm
Feedback type	Single turn SinCos Hiperface
Motor flange size	70 mm
Number of motor stacks	3
Torque constant	0.78 N.m/A at 120 °C
Back emf constant	49 V/krpm at 120 °C
Number of motor poles	3.0
Rotor inertia	0.58 kg.cm²
Stator resistance	2.7 Ohm at 20 °C
Stator inductance	7.3 mH at 20 °C
Stator electrical time constant	4.82 ms at 20 °C
Maximum radial force Fr	400 N at 6000 rpm 430 N at 5000 rpm 460 N at 4000 rpm 510 N at 3000 rpm 580 N at 2000 rpm 730 N at 1000 rpm
Maximum axial force Fa	0.2 x Fr
Type of cooling	Natural convection
Length	220 mm
Centring collar diameter	60 mm
Centring collar depth	2.5 mm
Number of mounting holes	4
Mounting holes diameter	5.5 mm
Circle diameter of the mounting holes	82 mm
Product weight	3.62 kg
Sizing reference	BSH0703P
Network number of phases	3
Accuracy error [angular]	1.4 °
Temperature copper hot	120 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	17.0 A
Inertia	0.0 kg.cm² of brake 0.58 kg.cm² of motor
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.000 cm
Package 1 Width	18.600 cm
Package 1 Length	39.000 cm
Package 1 Weight	4.044 kg
Unit Type of Package 2	P06
Number of Units in Package 2	24
Package 2 Height	59.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	105.556 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

IP50 enclosure rating — confirmed ingress protection against dust and moisture for the installation environment.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What environments is the IP50 rating on the BSH0703P11A2A suitable for?

A: IP50 means the enclosure is dust-protected (limited ingress) (first digit: 5) and protected against water protection (second digit: 0). This makes the BSH0703P11A2A suitable for dry indoor environments with occasional dust. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.
