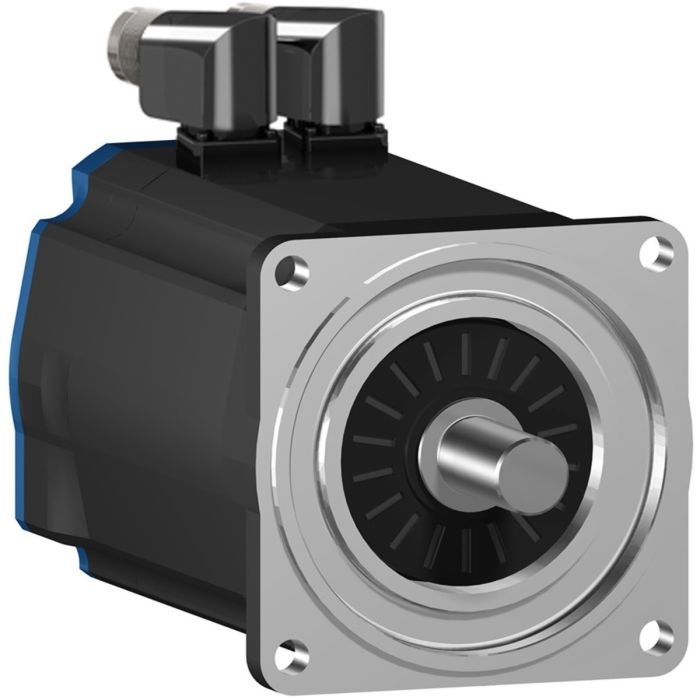

BSH1002P11A2A | Bsh Motor Iec 100Mm 5,5 Nm With Key Ip40 – Schneider Electric

Name: BSH1002P11A2A | Bsh Motor Iec 100Mm 5,5 Nm With Key Ip40 - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: BSH1002P11A2A
Price: 96778.02 INR
Availability: BackOrder

SKU: BSH1002P11A2A

Original price was: ₹210,387.00.Current price is: ₹96,778.02. Excl. GST

Dispatch By : 3 Weeks

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-64%

VW3M5101R50 | Bsh Motor Cable 1,5Ã‚Â² 5M – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VW3M5101R50

-64%

VW3M8102R50 | Encoder Cable M23-Rj45, 5M – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VW3M8102R50

Sourced through authorised channels, the Schneider Electric BSH1002P11A2A electrical component delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include IP50 standard. myelectric.in stocks the BSH1002P11A2A | Bsh Motor Iec 100Mm 5,5 Nm With Key Ip40 for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	BSH1002P11A2A
Category	Electrical Component
Main
Device short name	BSH
Product or component type	Servo motor
Maximum mechanical speed	6000 rpm
Continuous stall torque	4.5 N.m for LXM15LD21M3, 230 V, single phase 3.4 N.m for LXM15LD13M3, 230 V, three phase 3.4 N.m for LXM15LD10N4, 230 V, three phase 3.4 N.m for LXM15LD10N4, 400 V, three phase 3.4 N.m for LXM15LD10N4, 480 V, three phase 5.8 N.m for LXM15LD17N4, 400 V, three phase 5.8 N.m for LXM15LD17N4, 480 V, three phase 5.8 N.m for LXM15LD21M3, 230 V, three phase 5.5 N.m for LXM05AD17M3X, 200…240 V, three phase 5.5 N.m for LXM05AD22N4 at 6 A, 380…480 V, three phase 5.5 N.m for LXM05AD28M2 at 6 A, 200…240 V, single phase 5.5 N.m for LXM05BD17M3X, 200…240 V, three phase 5.5 N.m for LXM05BD22N4, 380…480 V, three phase 5.5 N.m for LXM05BD28M2, 200…240 V, single phase 5.5 N.m for LXM05CD17M3X, 200…240 V, three phase 5.5 N.m for LXM05CD22N4, 380…480 V, three phase 5.5 N.m for LXM05CD28M2, 200…240 V, single phase 5.8 N.m for LXM32.D18N4 at 6 A, 400 V, three phase 5.8 N.m for LXM32.D18N4 at 6 A, 480 V, three phase
Peak stall torque	9.39 N.m for LXM15LD21M3, 230 V, single phase 5.6 N.m for LXM15LD13M3, 230 V, three phase 8 N.m for LXM15LD10N4, 230 V, three phase 8 N.m for LXM15LD10N4, 400 V, three phase 8 N.m for LXM15LD10N4, 480 V, three phase 12.13 N.m for LXM15LD17N4, 400 V, three phase 12.13 N.m for LXM15LD17N4, 480 V, three phase 14.79 N.m for LXM15LD21M3, 230 V, three phase 11.23 N.m for LXM05AD17M3X, 200…240 V, three phase 13.92 N.m for LXM05AD22N4 at 6 A, 380…480 V, three phase 16 N.m for LXM05AD28M2 at 6 A, 200…240 V, single phase 11.23 N.m for LXM05BD17M3X, 200…240 V, three phase 13.92 N.m for LXM05BD22N4, 380…480 V, three phase 16 N.m for LXM05BD28M2, 200…240 V, single phase 11.23 N.m for LXM05CD17M3X, 200…240 V, three phase 13.92 N.m for LXM05CD22N4, 380…480 V, three phase 16 N.m for LXM05CD28M2, 200…240 V, single phase 18.3 N.m for LXM32.D18N4 at 6 A, 400 V, three phase 18.3 N.m for LXM32.D18N4 at 6 A, 480 V, three phase
Nominal output power	950 W for LXM15LD21M3, 230 V, single phase 950 W for LXM15LD21M3, 230 V, three phase 780 W for LXM05AD28M2, 200…240 V, single phase 780 W for LXM05BD28M2, 200…240 V, single phase 780 W for LXM05CD28M2, 200…240 V, single phase 1400 W for LXM05AD22N4, 380…480 V, three phase 1400 W for LXM05BD22N4, 380…480 V, three phase 1400 W for LXM05CD22N4, 380…480 V, three phase 1600 W for LXM15LD10N4, 400 V, three phase 1700 W for LXM15LD17N4 at 6 A, 400 V, three phase 1950 W for LXM15LD17N4 at 6 A, 480 V, three phase 2150 W for LXM15LD10N4, 480 V, three phase 780 W for LXM05AD17M3X, 200…240 V, three phase 780 W for LXM05BD17M3X, 200…240 V, three phase 780 W for LXM05CD17M3X, 200…240 V, three phase 840 W for LXM15LD13M3, 230 V, three phase 890 W for LXM15LD10N4, 230 V, three phase 1700 W for LXM32.D18N4 at 6 A, 400 V, three phase 1700 W for LXM32.D18N4 at 6 A, 480 V, three phase
Nominal torque	4.5 N.m for LXM15LD21M3, 230 V, single phase 4.96 N.m for LXM05AD28M2, 200…240 V, single phase 4.96 N.m for LXM05BD28M2, 200…240 V, single phase 4.96 N.m for LXM05CD28M2, 200…240 V, single phase 3.4 N.m for LXM15LD10N4, 230 V, three phase 3.4 N.m for LXM15LD10N4, 400 V, three phase 3.4 N.m for LXM15LD10N4, 480 V, three phase 3.4 N.m for LXM15LD13M3, 230 V, three phase 3.7 N.m for LXM15LD17N4, 480 V, three phase 4 N.m for LXM15LD17N4 at 6 A, 400 V, three phase 4.4 N.m for LXM05AD22N4 at 6 A, 380…480 V, three phase 4.4 N.m for LXM05BD22N4, 380…480 V, three phase 4.4 N.m for LXM05CD22N4, 380…480 V, three phase 4.96 N.m for LXM05AD17M3X, 200…240 V, three phase 4.96 N.m for LXM05BD17M3X, 200…240 V, three phase 4.96 N.m for LXM05CD17M3X, 200…240 V, three phase 5.8 N.m for LXM15LD21M3, 230 V, three phase 4 N.m for LXM32.D18N4 at 6 A, 400 V, three phase 4 N.m for LXM32.D18N4 at 6 A, 480 V, three phase
Nominal speed	3000 rpm for LXM05AD22N4, 380…480 V, three phase 3000 rpm for LXM05BD22N4 at 6 A, 380…480 V, three phase 3000 rpm for LXM05CD22N4, 380…480 V, three phase 1500 rpm for LXM05AD17M3X, 200…240 V, three phase 1500 rpm for LXM05BD17M3X, 200…240 V, three phase 1500 rpm for LXM05CD17M3X, 200…240 V, three phase 4500 rpm for LXM15LD10N4, 400 V, three phase 6000 rpm for LXM15LD10N4, 480 V, three phase 4000 rpm for LXM32.D18N4 at 6 A, 400 V, three phase 4000 rpm for LXM32.D18N4 at 6 A, 480 V, three phase 1500 rpm for LXM05AD28M2, 200…240 V, single phase 1500 rpm for LXM05BD28M2, 200…240 V, single phase 1500 rpm for LXM05CD28M2, 200…240 V, single phase 2000 rpm for LXM15LD21M3, 230 V, single phase 2000 rpm for LXM15LD21M3, 230 V, three phase 2500 rpm for LXM15LD10N4, 230 V, three phase 2500 rpm for LXM15LD13M3, 230 V, three phase 4000 rpm for LXM15LD17N4, 400 V, three phase 5000 rpm for LXM15LD17N4 at 6 A, 480 V, three phase
Product compatibility	LXM05AD28M2 at 200…240 V single phase LXM05BD28M2 at 200…240 V single phase LXM05CD28M2 at 200…240 V single phase LXM15LD21M3 at 230 V single phase LXM15LD13M3 at 230 V three phase LXM15LD10N4 at 400 V three phase LXM05AD17M3X at 200…240 V three phase LXM05BD17M3X at 200…240 V three phase LXM05CD17M3X at 200…240 V three phase LXM15LD10N4 at 230 V three phase LXM15LD10N4 at 480 V three phase LXM15LD21M3 at 230 V three phase LXM05AD22N4 at 380…480 V three phase LXM05BD22N4 at 380…480 V three phase LXM05CD22N4 at 380…480 V three phase LXM15LD17N4 at 400 V three phase LXM15LD17N4 at 480 V three phase LXM32.D18N4 at 400 V three phase LXM32.D18N4 at 480 V three phase
Shaft end	Keyed
IP degree of protection	IP50 standard
Speed feedback resolution	131072 points/turn
Holding brake	Without
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors
Complementary
Range compatibility	Lexium 15 Lexium 32 Lexium 05
supply voltage max	480 V
Network number of phases	Three phase
Continuous stall current	4.8 A
maximum continuous power	2.51 W
Maximum current Irms	17.1 A for LXM15LD13M3 17.1 A for LXM15LD21M3 17.1 A for LXM15LD10N4 17.1 A for LXM15LD17N4 17.1 A for LXM05AD28M2 17.1 A for LXM05AD17M3X 17.1 A for LXM05AD22N4 17.1 A for LXM05BD28M2 17.1 A for LXM05BD17M3X 17.1 A for LXM05BD22N4 17.1 A for LXM05CD28M2 17.1 A for LXM05CD17M3X 17.1 A for LXM05CD22N4 17.1 A for LXM32.D18N4
Maximum permanent current	17.1 A
Switching frequency	8 kHz
Second shaft	Without second shaft end
Shaft diameter	19 mm
Shaft length	40 mm
Key width	30 mm
Feedback type	Single turn SinCos Hiperface
Motor flange size	100 mm
Number of motor stacks	2
Torque constant	1.21 N.m/A at 120 °C
Back emf constant	77 V/krpm at 120 °C
Number of motor poles	4.0
Rotor inertia	2.31 kg.cm²
Stator resistance	2.4 Ohm at 20 °C
Stator inductance	6.75 mH at 20 °C
Stator electrical time constant	5.29 ms at 20 °C
Maximum radial force Fr	620 N at 4000 rpm 690 N at 3000 rpm 790 N at 2000 rpm 990 N at 1000 rpm
Maximum axial force Fa	0.2 x Fr
Type of cooling	Natural convection
Length	204.5 mm
Centring collar diameter	95 mm
Centring collar depth	3.5 mm
Number of mounting holes	4
Mounting holes diameter	9 mm
Circle diameter of the mounting holes	115 mm
Product weight	5.9 kg
Sizing reference	BSH1002P
Network number of phases	3
Accuracy error [angular]	1.4 °
Temperature copper hot	120 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	17.1 A
Inertia	0.0 kg.cm² of brake 2.31 kg.cm² of motor
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	22 cm
Package 1 Width	19.5 cm
Package 1 Length	57 cm
Package 1 Weight	6.722 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

IP40 enclosure rating — confirmed ingress protection against dust and moisture for the installation environment.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

VW3M8223R30VW3M3302VW3M8502R03VW3M3401VW3M3402VW3M3403VW3M3501VW3M8801R30VW3M8802R15VW3M5101R100VW3M5101R150VW3M5101R200VW3M5101R250VW3M5101R30VW3M5101R50VW3M5101R500VW3M5101R750VW3M8102R100VW3M8102R150VW3M8102R200VW3M8102R250VW3M8102R30VW3M8102R50VW3M8102R500VW3M8102R750VW3A7604R07VW3A7604R30VW3A7704VW3A7705

❓ Frequently Asked Questions

Q: What environments is the IP40 rating on the BSH1002P11A2A suitable for?

A: IP40 means the enclosure is solid particle protection (first digit: 4) and protected against water protection (second digit: 0). This makes the BSH1002P11A2A suitable for dry indoor environments with occasional dust. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.
