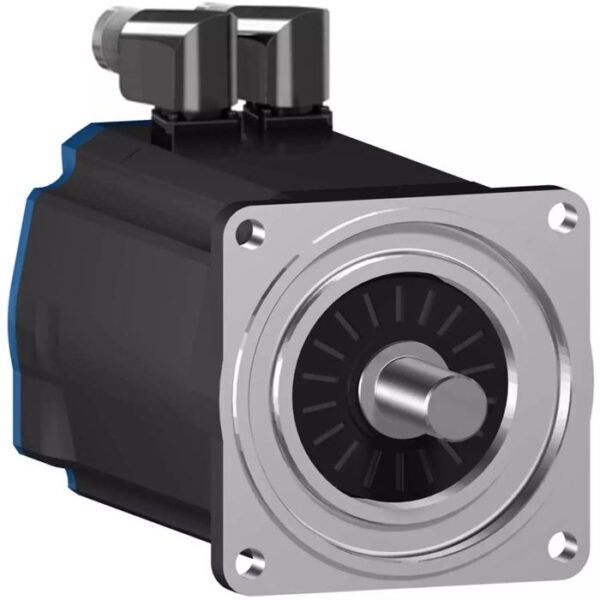

BSH1004P11A2A | Bsh Motor Iec 100Mm 9,3 Nm With Key Ip50 – Schneider Electric

Name: Schneider Electric BSH1004P11A2A IEC 100mm Motor 9.3 Nm
Brand: Schneider Electric
SKU: BSH1004P11A2A
Price: 114290.68 INR
Availability: BackOrder

SKU: BSH1004P11A2A

Original price was: ₹248,458.00.Current price is: ₹114,290.68. Excl. GST

Dispatch By : 3 Weeks

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-64%

VW3M8102R50 | Encoder Cable M23-Rj45, 5M – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VW3M8102R50

Looking for the BSH1004P11A2A | Bsh Motor Iec 100Mm 9,3 Nm With Key Ip50? This genuine Schneider Electric electrical component is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include IP50 standard. Order part number BSH1004P11A2A from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	BSH1004P11A2A
Category	Electrical Component
Main
Device short name	BSH
Product or component type	Servo motor
Maximum mechanical speed	6000 rpm
Continuous stall torque	8 N.m for LXM32.D30N4 at 10 A, 400 V, three phase 8 N.m for LXM32.D30N4 at 10 A, 480 V, three phase 9.31 N.m for LXM15MD40N4, 400 V, three phase 9.31 N.m for LXM15MD40N4, 480 V, three phase 9.31 N.m for LXM15MD28M3, 230 V, three phase 9.31 N.m for LXM15MD28N4, 230 V, three phase 9.31 N.m for LXM15MD28N4, 400 V, three phase 9.31 N.m for LXM15MD28N4, 480 V, three phase 9.31 N.m for LXM15MD40N4, 230 V, three phase 9.31 N.m for LXM05AD34N4, 380…480 V, three phase 9.31 N.m for LXM05AD42M3X at 10 A, 200…240 V, three phase 9.31 N.m for LXM05AD57N4, 380…480 V, three phase 9.31 N.m for LXM05BD34N4, 380…480 V, three phase 9.31 N.m for LXM05BD42M3X, 200…240 V, three phase 9.31 N.m for LXM05BD57N4, 380…480 V, three phase 9.31 N.m for LXM05CD34N4, 380…480 V, three phase 9.31 N.m for LXM05CD42M3X, 200…240 V, three phase 9.31 N.m for LXM05CD57N4, 380…480 V, three phase
Peak stall torque	37.9 N.m for LXM32.D30N4 at 10 A, 400 V, three phase 37.9 N.m for LXM32.D30N4 at 10 A, 480 V, three phase 25.7 N.m for LXM15MD28M3, 230 V, three phase 25.7 N.m for LXM15MD28N4, 230 V, three phase 25.7 N.m for LXM15MD28N4, 400 V, three phase 25.7 N.m for LXM15MD28N4, 480 V, three phase 33.83 N.m for LXM15MD40N4, 230 V, three phase 33.83 N.m for LXM15MD40N4, 400 V, three phase 33.83 N.m for LXM15MD40N4, 480 V, three phase 23.47 N.m for LXM05AD34N4, 380…480 V, three phase 35.7 N.m for LXM05AD42M3X at 10 A, 200…240 V, three phase 35.7 N.m for LXM05AD57N4, 380…480 V, three phase 23.47 N.m for LXM05BD34N4, 380…480 V, three phase 35.7 N.m for LXM05BD42M3X, 200…240 V, three phase 35.7 N.m for LXM05BD57N4, 380…480 V, three phase 23.47 N.m for LXM05CD34N4, 380…480 V, three phase 35.7 N.m for LXM05CD42M3X, 200…240 V, three phase 35.7 N.m for LXM05CD57N4, 380…480 V, three phase
Nominal output power	2600 W for LXM32.D30N4 at 10 A, 480 V, three phase 2100 W for LXM32.D30N4 at 10 A, 400 V, three phase 1300 W for LXM05AD42M3X, 200…240 V, three phase 1300 W for LXM05BD42M3X, 200…240 V, three phase 1300 W for LXM05CD42M3X, 200…240 V, three phase 1300 W for LXM15MD28M3, 230 V, three phase 1300 W for LXM15MD28N4, 230 V, three phase 1300 W for LXM15MD40N4, 230 V, three phase 2200 W for LXM05AD34N4, 380…480 V, three phase 2200 W for LXM05AD57N4, 380…480 V, three phase 2200 W for LXM05BD34N4 at 10 A, 380…480 V, three phase 2200 W for LXM05BD57N4, 380…480 V, three phase 2200 W for LXM05CD34N4, 380…480 V, three phase 2200 W for LXM05CD57N4, 380…480 V, three phase 2200 W for LXM15MD28N4, 400 V, three phase 2300 W for LXM15MD40N4, 400 V, three phase 2400 W for LXM15MD40N4, 480 V, three phase 2700 W for LXM15MD28N4, 480 V, three phase
Nominal torque	8.3 N.m for LXM32.D30N4 at 10 A, 400 V, three phase 8.3 N.m for LXM32.D30N4 at 10 A, 480 V, three phase 6.5 N.m for LXM15MD28N4, 480 V, three phase 6.69 N.m for LXM15MD40N4, 480 V, three phase 7 N.m for LXM15MD28N4, 400 V, three phase 7.1 N.m for LXM05AD34N4, 380…480 V, three phase 7.1 N.m for LXM05AD57N4, 380…480 V, three phase 7.1 N.m for LXM05BD34N4, 380…480 V, three phase 7.1 N.m for LXM05BD57N4, 380…480 V, three phase 7.1 N.m for LXM05CD34N4, 380…480 V, three phase 7.1 N.m for LXM05CD57N4 at 10 A, 380…480 V, three phase 7.17 N.m for LXM15MD40N4, 400 V, three phase 8.18 N.m for LXM15MD40N4, 230 V, three phase 8.22 N.m for LXM05AD42M3X, 200…240 V, three phase 8.22 N.m for LXM05BD42M3X, 200…240 V, three phase 8.22 N.m for LXM05CD42M3X, 200…240 V, three phase 8.22 N.m for LXM15LD28M3, 230 V, three phase 8.22 N.m for LXM15MD28N4, 230 V, three phase
Nominal speed	2500 rpm for LXM32.D30N4 at 10 A, 400 V, three phase 3000 rpm for LXM32.D30N4 at 10 A, 480 V, three phase 1500 rpm for LXM05AD42M3X, 200…240 V, three phase 1500 rpm for LXM05BD42M3X, 200…240 V, three phase 1500 rpm for LXM05CD42M3X, 200…240 V, three phase 3000 rpm for LXM05AD34N4, 380…480 V, three phase 3000 rpm for LXM05BD34N4, 380…480 V, three phase 3000 rpm for LXM05CD34N4, 380…480 V, three phase 1500 rpm for LXM15MD28M3, 230 V, three phase 1500 rpm for LXM15MD28N4, 230 V, three phase 1500 rpm for LXM15MD40N4 at 10 A, 230 V, three phase 3000 rpm for LXM05AD57N4, 380…480 V, three phase 3000 rpm for LXM05BD57N4, 380…480 V, three phase 3000 rpm for LXM05CD57N4, 380…480 V, three phase 3000 rpm for LXM15MD28N4, 400 V, three phase 3000 rpm for LXM15MD40N4, 400 V, three phase 3500 rpm for LXM15MD40N4, 480 V, three phase 4000 rpm for LXM15MD28N4, 480 V, three phase
Product compatibility	LXM05AD42M3X at 200…240 V three phase LXM05BD42M3X at 200…240 V three phase LXM05CD42M3X at 200…240 V three phase LXM05AD34N4 at 380…480 V three phase LXM05BD34N4 at 380…480 V three phase LXM05CD34N4 at 380…480 V three phase LXM15MD28N4 at 400 V three phase LXM15MD28N4 at 480 V three phase LXM15MD40N4 at 400 V three phase LXM15MD40N4 at 480 V three phase LXM32.D30N4 at 400 V three phase LXM32.D30N4 at 480 V three phase LXM05AD57N4 at 380…480 V three phase LXM05BD57N4 at 380…480 V three phase LXM05CD57N4 at 380…480 V three phase LXM15MD28M3 at 230 V three phase LXM15MD28N4 at 230 V three phase LXM15MD40N4 at 230 V three phase
Shaft end	Keyed
IP degree of protection	IP50 standard
Speed feedback resolution	131072 points/turn
Holding brake	Without
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors
Complementary
Range compatibility	Lexium 15 Lexium 32 Lexium 05
supply voltage max	480 V
Network number of phases	Three phase
Continuous stall current	6.2 A
maximum continuous power	3.64 W
Maximum current Irms	34.8 A for LXM15LD28M3 34.8 A for LXM15MD28N4 34.8 A for LXM15MD40N4 32.3 A for LXM05AD42M3X 32.3 A for LXM05AD34N4 32.3 A for LXM05AD57N4 32.3 A for LXM05BD42M3X 32.3 A for LXM05BD34N4 32.3 A for LXM05BD57N4 32.3 A for LXM05CD42M3X 32.3 A for LXM05CD34N4 32.3 A for LXM05CD57N4 30 A for LXM32.D30N4
Maximum permanent current	32.3 A
Switching frequency	8 kHz
Second shaft	Without second shaft end
Shaft diameter	24 mm
Shaft length	50 mm
Key width	40 mm
Feedback type	Single turn SinCos Hiperface
Motor flange size	100 mm
Number of motor stacks	4
Torque constant	1.62 N.m/A at 120 °C
Back emf constant	103 V/krpm at 120 °C
Number of motor poles	4.0
Rotor inertia	4.22 kg.cm²
Stator resistance	1.81 Ohm at 20 °C
Stator inductance	6.5 mH at 20 °C
Stator electrical time constant	6.52 ms at 20 °C
Maximum radial force Fr	1070 N at 1000 rpm 740 N at 3000 rpm 850 N at 2000 rpm
Maximum axial force Fa	0.2 x Fr
Type of cooling	Natural convection
Length	276.5 mm
Centring collar diameter	95 mm
Centring collar depth	3.5 mm
Number of mounting holes	4
Mounting holes diameter	9 mm
Circle diameter of the mounting holes	115 mm
Product weight	9.5 kg
Sizing reference	BSH1004P
Network number of phases	3
Accuracy error [angular]	1.4 °
Temperature copper hot	120 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	32.3 A
Inertia	0.0 kg.cm² of brake 4.22 kg.cm² of motor
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	20.000 cm
Package 1 Width	26.000 cm
Package 1 Length	60.000 cm
Package 1 Weight	10.571 kg
Unit Type of Package 2	P06
Number of Units in Package 2	8
Package 2 Height	75.000 cm
Package 2 Width	80.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	90.500 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

IP50 enclosure rating — confirmed ingress protection against dust and moisture for the installation environment.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

VW3M8223R30VW3M3302VW3M8502R03VW3M3401VW3M3402VW3M3403VW3M3501VW3M8801R30VW3M8802R15VW3M8102R100VW3M8102R150VW3M8102R200VW3M8102R250VW3M8102R30VW3M8102R50VW3M8102R500VW3M8102R750VW3A7604R07VW3A7604R30VW3A7704VW3A7705

❓ Frequently Asked Questions

Q: What environments is the IP50 rating on the BSH1004P11A2A suitable for?

A: IP50 means the enclosure is dust-protected (limited ingress) (first digit: 5) and protected against water protection (second digit: 0). This makes the BSH1004P11A2A suitable for dry indoor environments with occasional dust. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.
