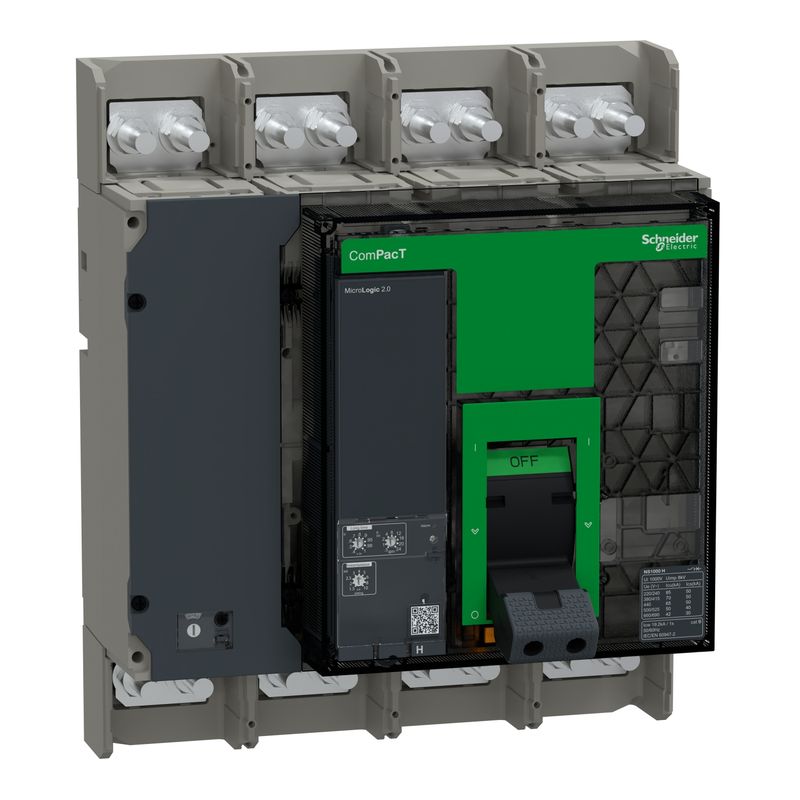

C100H420FM | NS1000H 70kA 4P 1000A FXD Man. 2.0 - Schneider Electric - Image 1

    C100H420FM | NS1000H 70kA 4P 1000A FXD Man. 2.0 – Schneider Electric

    SKU: C100H420FM

    Original price was: ₹248,700.00.Current price is: ₹119,376.00. Excl. GST

    Dispatch By : 5 Weeks

    Dispatch By : 5 Weeks

    14 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    RangeComPacT
    Product nameComPacT NS new generation
    Range of productComPacT NS630b…1600 new generation
    Product or component typeCircuit breaker
    Device applicationDistribution
    Number of poles4P
    Protected poles description4D
    Neutral positionLeft
    [In] rated current1000 A at 50 °C
    [Ue] rated operational voltage690 V AC 50/60 Hz
    Network typeAC
    Network frequency50/60 Hz
    Suitability for isolationYes conforming to EN/IEC 60947-2
    Utilisation categoryCategory B
    Breaking capacity85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
    70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
    65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
    50 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
    42 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
    Breaking capacity codeH 70 kA 415 V AC
    Trip unit nameMicroLogic 2.0
    Trip unit technologyElectronic
    Trip unit protection functionsLI
    Control typeManually operated
    Mounting modeFixed
    Complementary
    [Ui] rated insulation voltage800 V AC 50/60 Hz conforming to IEC 60947-2
    [Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947-2
    [Ics] rated service breaking capacity52 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
    52 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
    48 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
    37 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
    31 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
    [Icw] rated short-time withstand current19.2 kA 1 s conforming to IEC 60947-2
    Mechanical durability10000 cycles
    Electrical durability2000 cycles at 690 V In
    4000 cycles at 690 V In/2
    5000 cycles at 440 V In
    6000 cycles at 440 V In/2
    Power losses22 W
    Mounting supportBackplate
    Upside connectionFront
    Downside connectionFront
    Connection pitch70 mm
    Protection typeL : for overload protection (long time)
    I : for instantaneous short-circuit protection
    Trip unit rating1000 A at 50 °C
    Long-time pick-up adjustment type Ir (thermal protection)Adjustable 9 settings
    [Ir] long-time protection pick-up adjustment range0.4…1 x In
    Long-time protection delay adjustment type trAdjustable 9 settings
    [tr] long-time delay adjustment range12.5…600 s at 1.5 x Ir
    0.5…24 s at 6 x Ir
    0.7…16.6 s at 7.2 x Ir
    Thermal memory20 mn
    Instantaneous protection pick-up adjustment type IiAdjustable
    [Ii] instantaneous protection pick-up adjustment range1.5…10 x Ir
    Earth-leakage protectionWithout
    Neutral protection settingNo protection (3D)
    0.5 x Ir (3D + N/2)
    1 x Ir (4D)
    Zone selective interlocking ZSIWithout
    Auxiliary contact composition1 NO/NC
    Local signalling4 LEDs (red) for fault indication
    1 LED (yellow) for overload
    Width (W)280 mm
    Height (H)327 mm
    Depth (D)147 mm
    Net weight18 kg
    Environment
    StandardsEN/IEC 60947-2
    Product certificationsIECEE CB Scheme
    Overvoltage categoryIII
    Electrical shock protection classClass II on front face
    Pollution degree3 conforming to IEC 60947
    IP degree of protectionIP40 conforming to IEC 60529
    IK degree of protectionIK07 conforming to EN 50102
    Ambient air temperature for operation-25…70 °C
    Ambient air temperature for storage-50…85 °C
    Relative humidity0…95 %
    Operating altitude0…2000 m without derating
    2000 m…5000 m with derating
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height30.000 cm
    Package 1 Width40.000 cm
    Package 1 Length60.000 cm
    Package 1 Weight16.460 kg
    Contractual warranty
    Warranty (in months)18
