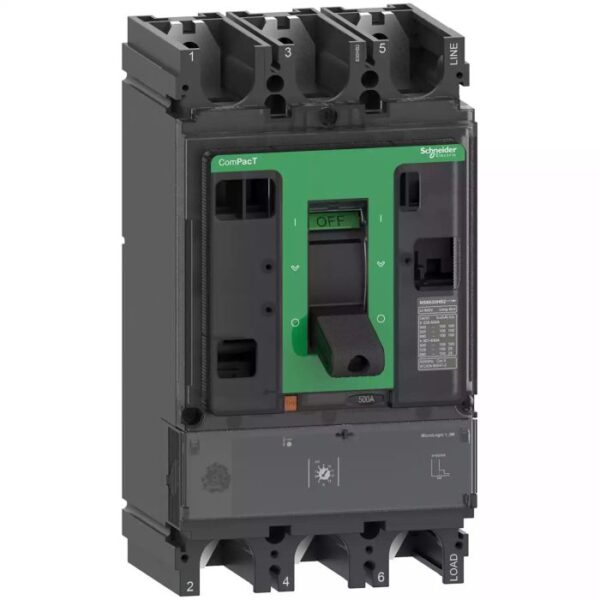

Schneider Electric NSX400F 36kA AC 3P3D 320A MCCB
Product Code: C40F31M320
Key Features:
- Model: NSX400F
- Breaking Capacity: 36kA at 415V AC
- Poles: 3P3D (3 Poles, 3 Protected)
- Rated Current: 320A
- Trip Unit: Micrologic 1.3M (Overload & Short Circuit Protection)
- Mounting: Fixed Type
- Standards: IEC 60947-2, CE Certified
Product Overview:
The Schneider Electric NSX400F Molded Case Circuit Breaker offers superior protection for your electrical installations. With a high breaking capacity of 36kA, this 320A breaker is designed for commercial and industrial applications where reliable circuit protection is critical.
The Micrologic 1.3M electronic trip unit provides precise overload and short-circuit protection, ensuring equipment safety and minimizing downtime. The compact design allows for space-efficient panel installation while maintaining Schneider Electric’s renowned quality and durability.
Applications:
- Industrial power distribution
- Commercial buildings
- Data centers
- Infrastructure projects
- HVAC systems
Technical Specifications:
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Product Range | Compact NSX |
| Rated Voltage | 415V AC |
| Tripping Curve | Fixed (Micrologic 1.3M) |
| Termination | Screw Clamp |
| Operating Temperature | -25°C to +70°C |
Why Choose This Product?
- High performance protection with Micrologic trip unit
- Compact design saves panel space
- Easy installation and maintenance
- Schneider Electric reliability and global support
- Energy efficient operation
Note: For optimal performance, pair with appropriate Schneider Electric accessories and follow local electrical codes during installation.
