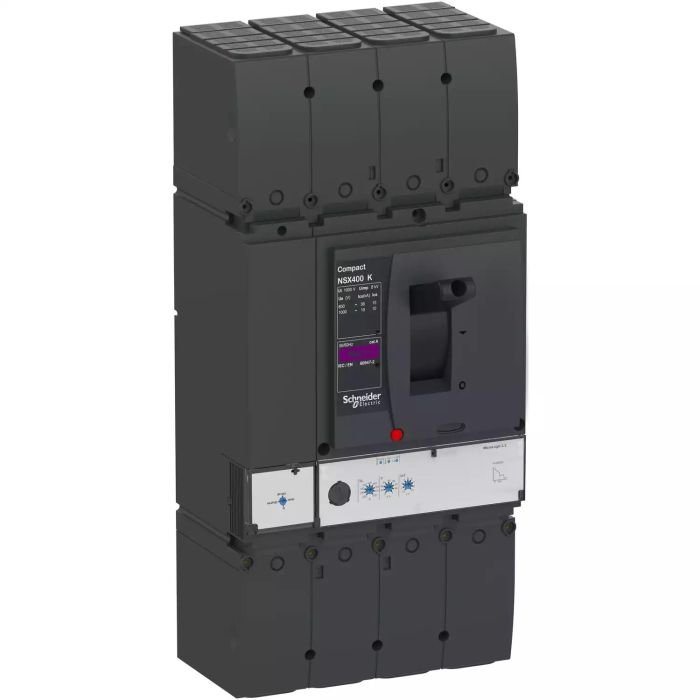

Schneider Electric NSX400K 10kA AC 4P4D 250A 2.3 Circuit Breaker
Product Code: C40K42D250
Key Features:
- Current Rating: 250A
- Breaking Capacity: 10kA at 415V AC
- Number of Poles: 4P4D (4 Poles with 4 protected poles)
- Tripping Unit: Micrologic 2.3 electronic trip unit
- Mounting: Fixed type
- Standards: IEC 60947-2 compliant
- Application: Protection of circuits against overloads and short-circuits
Product Description:
The Schneider Electric NSX400K is a high-performance molded case circuit breaker designed for commercial and industrial applications. With its 10kA breaking capacity and Micrologic 2.3 trip unit, it provides reliable protection for your electrical installations.
The 4-pole configuration makes it ideal for three-phase systems with neutral protection. The Micrologic 2.3 electronic trip unit offers precise protection with adjustable overload and short-circuit settings, ensuring optimal equipment protection while minimizing nuisance tripping.
Technical Specifications:
| Brand | Schneider Electric |
| Model | NSX400K |
| Rated Current | 250A |
| Breaking Capacity | 10kA at 415V AC |
| Number of Poles | 4P4D |
| Trip Unit | Micrologic 2.3 |
| Mounting Type | Fixed |
| Standards | IEC 60947-2 |
Typical Applications:
- Industrial power distribution
- Commercial buildings
- Data centers
- HVAC systems
- Motor protection
- Panelboards and switchboards
