C63H31M500 NSX630H 70kA AC 3P3D 500A 1.3M Schneider Electric c63h31m500
Click to enlarge

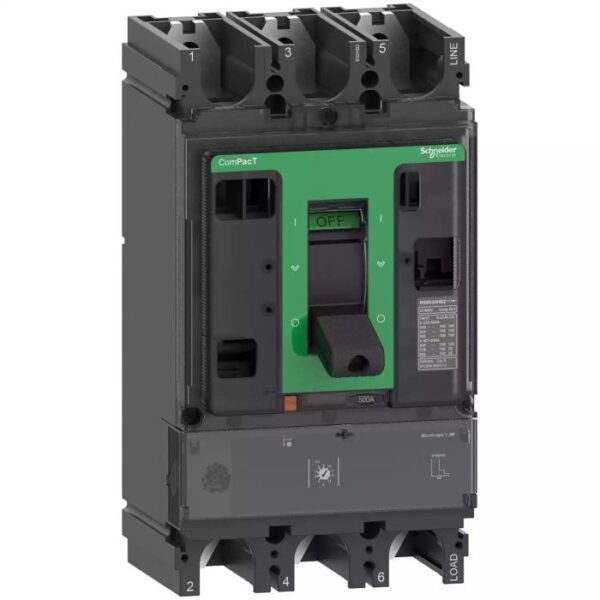

C63H31M500 | NSX630H 70kA AC 3P3D 500A 1.3M – Schneider Electric

SKU: C63H31M500

Original price was: ₹133,730.00.Current price is: ₹64,190.40. Excl. GST

Dispatch By : 6 Weeks

Dispatch By : 6 Weeks

My Electric Support Online · Mon–Sat 9am–6pm IST
Product enquiry
Order on WhatsApp SKU: C63H31M500

Same-day dispatch · GST invoice available

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

LV429387 MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50 60 Hz, 20
-48%

LV429387 | MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50/60 Hz, 208 to 277 VAC 60 Hz – Schneider Electric

Schneider Electric
Original price was: ₹4,740.00.Current price is: ₹2,464.80. Excl. GST
Add to basket
SKU: LV429387
-46%

LV432614T | INTERLOCKING 400-630 FOR TOGGLE – Schneider Electric

Schneider Electric
Original price was: ₹23,240.00.Current price is: ₹12,549.60. Excl. GST
Add to basket
SKU: LV432614T
Placeholder
-46%

LV432631 | FIXED LOCKING DEVICE FOR 3 PADLOCKS – Schneider Electric

Original price was: ₹1,860.00.Current price is: ₹1,004.40. Excl. GST
Add to basket
SKU: LV432631
-46%

LV429454 | Wireless auxiliary contact NSX – Schneider Electric

Schneider Electric
Original price was: ₹6,670.00.Current price is: ₹3,601.80. Excl. GST
Add to basket
SKU: LV429454
LV432464 Vigi 200-440V 3P for NSX400 630 Schneider Electric lv
-45%

LV432464 | Vigi 200-440V 3P for NSX400/630 – Schneider Electric

Schneider Electric
Original price was: ₹111,930.00.Current price is: ₹61,561.50. Excl. GST
Add to basket
SKU: LV432464
-46%

LV432591 | 1 3P SHORT TERMINAL SHIELD. – Schneider Electric

Schneider Electric
Original price was: ₹1,170.00.Current price is: ₹631.80. Excl. GST
Add to basket
SKU: LV432591
-50%

LV429408 | MN 380-415V50/60HZ 440-480V60HZ UVR – Schneider Electric

Schneider Electric
Original price was: ₹5,880.00.Current price is: ₹2,969.40. Excl. GST
Add to basket
SKU: LV429408
LV432641 motor mechanism, MT 400-630, Compact NSX400 630, PowerPact Multistandard L, 220 to 240 VAC 50 60 Hz, 208 to 277 VAC
-48%

LV432641 | motor mechanism, MT 400-630, Compact NSX400/630, PowerPact Multistandard L, 220 to 240 VAC 50/60 Hz, 208 to 277 VAC 60 Hz – Schneider Electric

Schneider Electric
Original price was: ₹78,730.00.Current price is: ₹40,939.60. Excl. GST
Add to basket
SKU: LV432641
-46%

LV432593 | 1 3P LONG TERMINAL SHIELD – Schneider Electric

Schneider Electric
Original price was: ₹4,150.00.Current price is: ₹2,241.00. Excl. GST
Add to basket
SKU: LV432593
-46%

LV432598T | ROTARY HANDLE EXT 400-630 BLK – Schneider Electric

Schneider Electric
Original price was: ₹5,870.00.Current price is: ₹3,169.80. Excl. GST
Add to basket
SKU: LV432598T
29450 standard auxiliary contact, circuit breaker status OF-SD-SDE-SDV, 1 single contact Schneider Electric 29450 main image
-48%

29450 | standard auxiliary contact, circuit breaker status OF-SD-SDE-SDV, 1 single contact – Schneider Electric

Schneider Electric
Original price was: ₹1,640.00.Current price is: ₹852.80. Excl. GST
Add to basket
SKU: 29450
LV429388 MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 380 to 415 VAC 50 60 Hz, 44
-48%

LV429388 | MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 380 to 415 VAC 50/60 Hz, 440 to 480 VAC 60 Hz – Schneider Electric

Schneider Electric
Original price was: ₹4,740.00.Current price is: ₹2,464.80. Excl. GST
Add to basket
SKU: LV429388
-46%

LV432597T | ROTARY HANDLE DIR 400-630 BLK – Schneider Electric

Schneider Electric
Original price was: ₹3,620.00.Current price is: ₹1,954.80. Excl. GST
Add to basket
SKU: LV432597T
LV432570 interphase barriers, Compact NSX 400 630, EasyPact CVS 400 630, set of 6 parts Schneider Electric odalv432570 1500x1
-46%

LV432570 | interphase barriers, Compact NSX 400/630, EasyPact CVS 400/630, set of 6 parts – Schneider Electric

Schneider Electric
Original price was: ₹1,550.00.Current price is: ₹837.00. Excl. GST
Add to basket
SKU: LV432570
-46%

LV432513 | TORQUE LIMITING SCREWS (SET OF 12) – Schneider Electric

Schneider Electric
Original price was: ₹5,770.00.Current price is: ₹3,115.80. Excl. GST
Add to basket
SKU: LV432513
-46%

LV432621T | INTERLOCKING 400-630 FOR DIR ROT-HANDLE – Schneider Electric

Schneider Electric
Original price was: ₹23,240.00.Current price is: ₹12,549.60. Excl. GST
Add to basket
SKU: LV432621T
LV429407 MN undervoltage release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50 60 Hz,
-48%

LV429407 | MN undervoltage release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50/60 Hz, 208 to 277 VAC 60 Hz – Schneider Electric

Schneider Electric
Original price was: ₹5,880.00.Current price is: ₹3,057.60. Excl. GST
Add to basket
SKU: LV429407
LV432538 COMPACT PLUG IN BASE KIT 3P Schneider Electric lv
-46%

LV432538 | COMPACT PLUG IN BASE KIT 3P – Schneider Electric

Schneider Electric
Original price was: ₹47,930.00.Current price is: ₹25,882.20. Excl. GST
Add to basket
SKU: LV432538

    The Schneider Electric C63H31M500 is a mccb from the ComPacT range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 500 A at 65 °C, 690 V AC 50/60 Hz, 3P. Buy the C63H31M500 | NSX630H 70kA AC 3P3D 500A 1.3M online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKUC63H31M500
    CategoryMCCB
    Main
    RangeComPacT
    Product nameComPacT NSX
    Device short nameNSX630H
    Product or component typeCircuit breaker
    Device applicationMotor protection
    Poles description3P
    Protected poles description3D
    [In] rated current500 A at 65 °C
    [Ue] rated operational voltage690 V AC 50/60 Hz
    Network typeAC
    Network frequency50/60 Hz
    Suitability for isolationYes conforming to EN/IEC 60947-2
    Utilisation categoryCategory A
    Breaking capacity100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
    70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
    65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
    50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
    35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
    20 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
    85 kA Icu at 240 V AC 50/60 Hz conforming to UL 60947-4-1
    65 kA Icu at 480 V AC 50/60 Hz conforming to UL 60947-4-1
    20 kA Icu at 600 V AC 50/60 Hz conforming to UL 60947-4-1
    Breaking capacity codeH 70 kA 415 V AC
    Trip unit nameMicroLogic 1.3 M
    Trip unit technologyElectronic
    Trip unit protection functionsSI
    Control typeToggle
    Circuit breaker mounting modeFixed
    Complementary
    [Ui] rated insulation voltage800 V AC 50/60 Hz
    [Uimp] rated impulse withstand voltage8 kV
    [Ics] rated service breaking capacity100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
    70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
    65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
    50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
    11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
    10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
    Mechanical durability15000 cycles
    Electrical durability8000 cycles at 440 V In/2
    4000 cycles at 440 V In
    6000 cycles at 690 V In/2
    2000 cycles at 690 V In
    Power dissipation per pole25 W
    Mounting supportBackplate
    Mounting positionHorizontal and vertical
    Flat on the back
    Upside connectionFront
    Downside connectionFront
    Connection pitch45 mm
    Protection typeS : for short time short-circuit protection
    I : for instantaneous short-circuit protection
    Trip unit rating500 A at 65 °C
    Short-time protection pick-up adjustment type IsdAdjustable 9 settings
    [Isd] Short-time protection pick-up adjustment range2500 A
    3000 A
    3500 A
    4000 A
    4500 A
    5000 A
    5500 A
    6000 A
    6500 A
    Short-time protection delay adjustment type tsdFixed
    Instantaneous protection pick-up adjustment type IiFixed
    [Ii] instantaneous protection pick-up adjustment range6500 A
    Earth-leakage protectionWithout
    Zone selective interlocking ZSIWithout
    Number of slots6 slot(s)
    Local signallingFlashing LED (green) for ready to operate
    Width (W)140 mm
    Height (H)255 mm
    Depth (D)110 mm
    Product weight6.2 kg
    Environment
    StandardsEN/IEC 60947-2
    Overvoltage categoryIII
    Electrical shock protection classClass II on front face
    Pollution degree3 conforming to IEC 60664-1
    IP degree of protectionIP40 conforming to IEC 60529
    IK degree of protectionIK07 conforming to IEC 62262
    Ambient air temperature for operation-25…70 °C
    Ambient air temperature for storage-50…85 °C
    Relative humidity0…95 %
    Operating altitude0…2000 m without derating
    2000 m…5000 m with derating
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height15.000 cm
    Package 1 Width16.000 cm
    Package 1 Length29.000 cm
    Package 1 Weight5.764 kg
    Unit Type of Package 2S04
    Number of Units in Package 22
    Package 2 Height30.000 cm
    Package 2 Width40.000 cm
    Package 2 Length60.000 cm
    Package 2 Weight12.178 kg
    Unit Type of Package 3P12
    Number of Units in Package 38
    Package 3 Height45.000 cm
    Package 3 Width80.000 cm
    Package 3 Length120.000 cm
    Package 3 Weight60.712 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • 630 A frame rating — handles the full rated current continuously; designed for feeder and sub-distribution protection where fault levels exceed MCB capability.
    • Performance level H — breaking capacity 70 kA (high breaking capacity, for MV/LV transformer secondaries and large industrial plants).
    • Thermal-magnetic trip unit — factory-calibrated overload and short-circuit protection; suitable for standard feeder circuits without electronic adjustment.
    • CompacT NSX form factor — 70mm wide per pole; designed for high-density LV switchboards with up to 3 units per standard 250mm busbar bay.
    • Rotary handle with padlocking points — LOTO compliant; handle locks in OFF position with up to 3 padlocks, preventing accidental energisation during maintenance.
    • Manufactured to IEC 60947-2 / IS 13947-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    LV432614TLV432621TLV432631LV432593LV432591LV432570LV4324642945029452LV429387LV429388LV429407LV429408LV432597TLV432598TLV432641LV432538LV429454LV432513

    ❓ Frequently Asked Questions

    Q: What load can the C63H31M500 protect at its rated 630 A?

    A: The C63H31M500 is rated to carry and protect circuits up to 630 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 630 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

    Q: What does the 70 kA breaking capacity on the C63H31M500 mean in practice?

    A: Breaking capacity (70 kA) is the maximum prospective short-circuit current the C63H31M500 can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 70 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

    Q: Can the C63H31M500 be motorised for remote switching and automation?

    A: Yes. Schneider Electric MCCBs in this series support rotary handle adaptation and motorised operating mechanisms as accessories, enabling remote ON/OFF switching via PLC, SCADA, or BMS. Motorised MCCBs are used for automatic load management and remote trip in automated distribution systems.

    Q: What trip unit type does the C63H31M500 use — thermal-magnetic or electronic?

    A: Refer to the product label or datasheet for the exact trip unit specification. The trip unit determines adjustability and protection accuracy.

    Q: Is the C63H31M500 suitable for use as a motor branch circuit protector (Type E coordination)?

    A: MCCBs used for motor branch circuit protection must be coordinated with the downstream overload relay for Type 2 coordination (no damage to contactor or relay on short-circuit). Verify the Schneider Electric coordination table for the specific contactor-overload-MCCB combination to confirm Type 1 or Type 2 coordination is achieved.

    Customer Reviews

    Related Products

    Solar Controller for 415V Induction motor pumps,10HP,Without RMU L T CS91466PO1O newbradd 7

    Solar Controller for 415V Induction motor pumps,3HP,Without RMU | L&T – CS91463PO1O

    Lauritz Knudsen (L&T)
    Read more
    SKU: CS91463PO1O
    MU-G10HN, 10HP, 20-32A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application L T CS92

    MU-G7.5,7.5HP,13-22A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application | L&T – CS92103SODO

    Lauritz Knudsen (L&T)
    ₹12,550.00 Excl. GST
    Add to basket
    SKU: CS92103SODO
    XB5AR31N Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO Schneider Electric xb5
    -46%

    XB5AR31N | Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO – Schneider Electric

    Schneider Electric
    Original price was: ₹675.00.Current price is: ₹364.50. Excl. GST
    Add to basket
    SKU: XB5AR31N
    ZB2BW36C Ø 22 mm fixing hole push button head with blue lamp Schneider Electric zb2bw36c
    -35%

    ZB2BW36C | Ø 22 mm fixing hole – push button head with blue lamp – Schneider Electric

    Schneider Electric
    Original price was: ₹305.00.Current price is: ₹198.25. Excl. GST
    Add to basket
    SKU: ZB2BW36C
    Placeholder
    -20%

    MS13MD09 | 7MDL, 1HP 3 PHASE DOL STARTER – Schneider Electric

    Schneider Electric
    Original price was: ₹5,530.00.Current price is: ₹4,424.00. Excl. GST
    Add to basket
    SKU: MS13MD09
    Placeholder
    -50%

    30002572 | EM1200 Energy meter Cl 0.5 RS485 LCD – Schneider Electric

    Schneider Electric
    Original price was: ₹6,271.00.Current price is: ₹3,135.50. Excl. GST
    Add to basket
    SKU: 30002572
