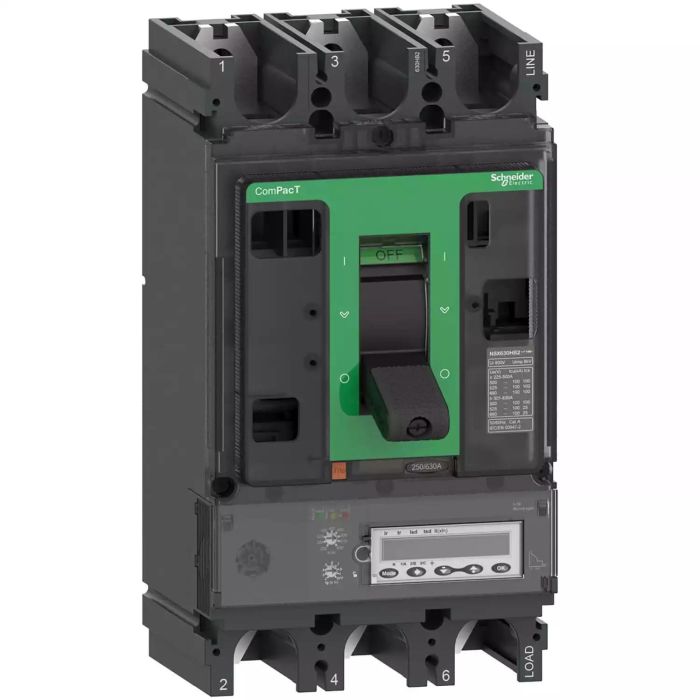

C63H36E630 | NSX630H 70kA AC 3P3D 630A 6.3E – Schneider Electric

Name: C63H36E630 | NSX630H 70kA AC 3P3D 630A 6.3E - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: C63H36E630
Price: 1586.40 EUR
Availability: BackOrder

SKU: C63H36E630

Original price was: €3,304.99.Current price is: €1,586.40. Excl. GST

Dispatch By : 3 Weeks

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric C63H36E630 is a mccb, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 630 A. Buy the C63H36E630 | NSX630H 70kA AC 3P3D 630A 6.3E online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Parameter	Value
Brand	Schneider Electric
Part Number / SKU	C63H36E630
Category	MCCB
Current Rating	630 A
Frame Size	630 A
Breaking Capacity	70 kA
Rated Operational Voltage (Ue)	415V AC (50/60 Hz)
Rated Insulation Voltage (Ui)	800 V
Rated Impulse Withstand (Uimp)	8 kV
Service Breaking Capacity (Ics)	100% of Icu
Mounting	Fixed, front connected
Rated Frequency	50/60 Hz
Standard	IEC 60947-2 / IS 13947-2
Certifications	BIS certified, CE marked, RoHS compliant

⚡ Key Features

630 A frame rating — handles the full rated current continuously; designed for feeder and sub-distribution protection where fault levels exceed MCB capability.
Performance level H — breaking capacity 70 kA (high breaking capacity, for MV/LV transformer secondaries and large industrial plants).
Thermal-magnetic trip unit — factory-calibrated overload and short-circuit protection; suitable for standard feeder circuits without electronic adjustment.
CompacT NSX form factor — 70mm wide per pole; designed for high-density LV switchboards with up to 3 units per standard 250mm busbar bay.
Rotary handle with padlocking points — LOTO compliant; handle locks in OFF position with up to 3 padlocks, preventing accidental energisation during maintenance.
Manufactured to IEC 60947-2 / IS 13947-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What load can the C63H36E630 protect at its rated 630 A?

A: The C63H36E630 is rated to carry and protect circuits up to 630 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 630 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

Q: What does the 70 kA breaking capacity on the C63H36E630 mean in practice?

A: Breaking capacity (70 kA) is the maximum prospective short-circuit current the C63H36E630 can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 70 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

Q: Can the C63H36E630 be motorised for remote switching and automation?

A: Yes. Schneider Electric MCCBs in this series support rotary handle adaptation and motorised operating mechanisms as accessories, enabling remote ON/OFF switching via PLC, SCADA, or BMS. Motorised MCCBs are used for automatic load management and remote trip in automated distribution systems.

Q: What trip unit type does the C63H36E630 use — thermal-magnetic or electronic?

A: Refer to the product label or datasheet for the exact trip unit specification. The trip unit determines adjustability and protection accuracy.

Q: Is the C63H36E630 suitable for use as a motor branch circuit protector (Type E coordination)?

A: MCCBs used for motor branch circuit protection must be coordinated with the downstream overload relay for Type 2 coordination (no damage to contactor or relay on short-circuit). Verify the Schneider Electric coordination table for the specific contactor-overload-MCCB combination to confirm Type 1 or Type 2 coordination is achieved.
