C63N31M500 | NSX630N 50kA AC 3P3D 500A 1.3M – Schneider Electric
Original price was: ₹91,900.00.₹44,112.00Current price is: ₹44,112.00. Excl. GST
Dispatch By : 2- 3 weeks
Dispatch By : 2- 3 weeks
Payment Methods:

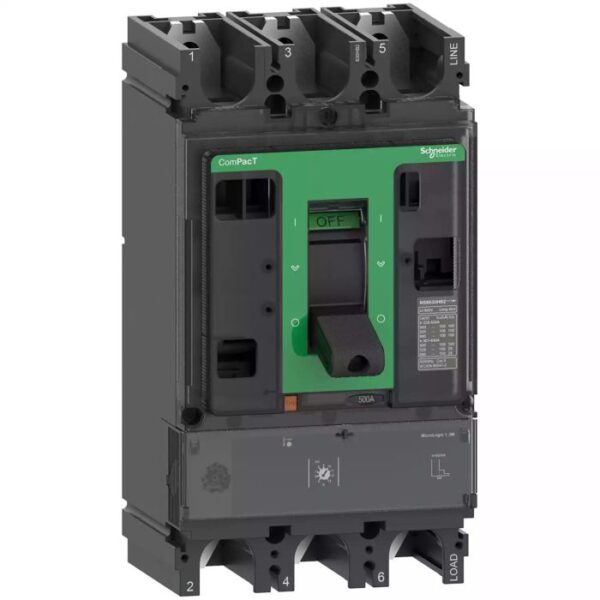

Schneider Electric NSX630N 50kA AC 3P3D 500A MCCB
Product Code: C63N31M500
Product Description
The Schneider Electric NSX630N Molded Case Circuit Breaker (MCCB) is a high-performance protection device designed for industrial and commercial electrical distribution systems. This 3-pole breaker offers reliable protection with a breaking capacity of 50kA at 415V AC.
Key Features
- Current Rating: 500A
- Number of Poles: 3P3D (3 Poles, 3 Protected Poles)
- Breaking Capacity: 50kA at 415V AC
- Trip Unit: Micrologic 1.3M (Fixed)
- Mounting: Fixed type
- Standards: IEC 60947-2, IS/IEC 60947-2
- Termination: Front or rear connection
- Operating Temperature: -25°C to +70°C
Applications
- Industrial power distribution
- Commercial buildings
- Data centers
- Infrastructure projects
- HVAC systems
Why Choose This Product?
The NSX630N from Schneider Electric offers superior protection with its Micrologic trip unit technology, ensuring precise overload and short-circuit protection. Its compact design saves panel space while maintaining high performance. Schneider Electric’s reputation for quality and reliability makes this MCCB an excellent choice for critical applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Range | EasyPact NSX |
| Rated Current (In) | 500A |
| Rated Voltage (Ue) | 690V AC |
| Rated Insulation Voltage (Ui) | 1000V AC |
| Breaking Capacity (Icu) at 415V | 50kA |
| Trip Unit Type | Micrologic 1.3M (Thermal Magnetic) |
| Mechanical Life | 20,000 operations |
| Electrical Life | 5,000 operations |
Package Includes
- 1 x Schneider Electric NSX630N MCCB
- Product documentation
Note: For optimal performance, we recommend professional installation by a qualified electrician.
