C63N32M500 NSX630N 50kA AC 3P3D 500A 2.3M Schneider Electric c63n32m500
Click to enlarge

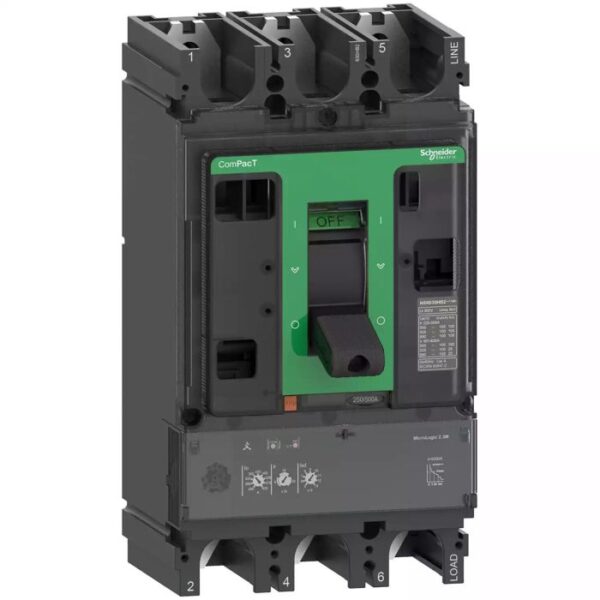

    C63N32M500 | NSX630N 50kA AC 3P3D 500A 2.3M – Schneider Electric

    SKU: C63N32M500

    Original price was: ₹144,820.00.Current price is: ₹69,513.60. Excl. GST

    Dispatch By : 3 Weeks

    Dispatch By : 3 Weeks

    15 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    -46%

    LV429454 | Wireless auxiliary contact NSX – Schneider Electric

    Schneider Electric
    Original price was: ₹6,670.00.Current price is: ₹3,601.80. Excl. GST
    Add to basket
    SKU: LV429454
    -46%

    LV432513 | TORQUE LIMITING SCREWS (SET OF 12) – Schneider Electric

    Schneider Electric
    Original price was: ₹5,770.00.Current price is: ₹3,115.80. Excl. GST
    Add to basket
    SKU: LV432513
    -46%

    LV432591 | 1 3P SHORT TERMINAL SHIELD. – Schneider Electric

    Schneider Electric
    Original price was: ₹1,170.00.Current price is: ₹631.80. Excl. GST
    Add to basket
    SKU: LV432591
    29450 standard auxiliary contact, circuit breaker status OF-SD-SDE-SDV, 1 single contact Schneider Electric 29450 main image
    -48%

    29450 | standard auxiliary contact, circuit breaker status OF-SD-SDE-SDV, 1 single contact – Schneider Electric

    Schneider Electric
    Original price was: ₹1,640.00.Current price is: ₹852.80. Excl. GST
    Add to basket
    SKU: 29450
    -46%

    LV432614T | INTERLOCKING 400-630 FOR TOGGLE – Schneider Electric

    Schneider Electric
    Original price was: ₹23,240.00.Current price is: ₹12,549.60. Excl. GST
    Add to basket
    SKU: LV432614T
    -46%

    LV432597T | ROTARY HANDLE DIR 400-630 BLK – Schneider Electric

    Schneider Electric
    Original price was: ₹3,620.00.Current price is: ₹1,954.80. Excl. GST
    Add to basket
    SKU: LV432597T
    LV429407 MN undervoltage release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50 60 Hz,
    -48%

    LV429407 | MN undervoltage release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50/60 Hz, 208 to 277 VAC 60 Hz – Schneider Electric

    Schneider Electric
    Original price was: ₹5,880.00.Current price is: ₹3,057.60. Excl. GST
    Add to basket
    SKU: LV429407
    Placeholder
    -46%

    LV432631 | FIXED LOCKING DEVICE FOR 3 PADLOCKS – Schneider Electric

    Original price was: ₹1,860.00.Current price is: ₹1,004.40. Excl. GST
    Add to basket
    SKU: LV432631
    -50%

    LV429408 | MN 380-415V50/60HZ 440-480V60HZ UVR – Schneider Electric

    Schneider Electric
    Original price was: ₹5,880.00.Current price is: ₹2,969.40. Excl. GST
    Add to basket
    SKU: LV429408
    LV429387 MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50 60 Hz, 20
    -48%

    LV429387 | MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50/60 Hz, 208 to 277 VAC 60 Hz – Schneider Electric

    Schneider Electric
    Original price was: ₹4,740.00.Current price is: ₹2,464.80. Excl. GST
    Add to basket
    SKU: LV429387
    -46%

    LV432593 | 1 3P LONG TERMINAL SHIELD – Schneider Electric

    Schneider Electric
    Original price was: ₹4,150.00.Current price is: ₹2,241.00. Excl. GST
    Add to basket
    SKU: LV432593
    LV429388 MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 380 to 415 VAC 50 60 Hz, 44
    -48%

    LV429388 | MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 380 to 415 VAC 50/60 Hz, 440 to 480 VAC 60 Hz – Schneider Electric

    Schneider Electric
    Original price was: ₹4,740.00.Current price is: ₹2,464.80. Excl. GST
    Add to basket
    SKU: LV429388
    -46%

    LV432621T | INTERLOCKING 400-630 FOR DIR ROT-HANDLE – Schneider Electric

    Schneider Electric
    Original price was: ₹23,240.00.Current price is: ₹12,549.60. Excl. GST
    Add to basket
    SKU: LV432621T
    LV432570 interphase barriers, Compact NSX 400 630, EasyPact CVS 400 630, set of 6 parts Schneider Electric odalv432570 1500x1
    -46%

    LV432570 | interphase barriers, Compact NSX 400/630, EasyPact CVS 400/630, set of 6 parts – Schneider Electric

    Schneider Electric
    Original price was: ₹1,550.00.Current price is: ₹837.00. Excl. GST
    Add to basket
    SKU: LV432570
    LV432538 COMPACT PLUG IN BASE KIT 3P Schneider Electric lv
    -46%

    LV432538 | COMPACT PLUG IN BASE KIT 3P – Schneider Electric

    Schneider Electric
    Original price was: ₹47,930.00.Current price is: ₹25,882.20. Excl. GST
    Add to basket
    SKU: LV432538
    LV432641 motor mechanism, MT 400-630, Compact NSX400 630, PowerPact Multistandard L, 220 to 240 VAC 50 60 Hz, 208 to 277 VAC
    -48%

    LV432641 | motor mechanism, MT 400-630, Compact NSX400/630, PowerPact Multistandard L, 220 to 240 VAC 50/60 Hz, 208 to 277 VAC 60 Hz – Schneider Electric

    Schneider Electric
    Original price was: ₹78,730.00.Current price is: ₹40,939.60. Excl. GST
    Add to basket
    SKU: LV432641
    -46%

    LV432598T | ROTARY HANDLE EXT 400-630 BLK – Schneider Electric

    Schneider Electric
    Original price was: ₹5,870.00.Current price is: ₹3,169.80. Excl. GST
    Add to basket
    SKU: LV432598T
    LV432464 Vigi 200-440V 3P for NSX400 630 Schneider Electric lv
    -45%

    LV432464 | Vigi 200-440V 3P for NSX400/630 – Schneider Electric

    Schneider Electric
    Original price was: ₹111,930.00.Current price is: ₹61,561.50. Excl. GST
    Add to basket
    SKU: LV432464

      The Schneider Electric C63N32M500 is a mccb from the ComPacT range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 500 A at 65 °C, 690 V AC 50/60 Hz, 3P. Buy the C63N32M500 | NSX630N 50kA AC 3P3D 500A 2.3M online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKUC63N32M500
      CategoryMCCB
      Main
      RangeComPacT
      Product nameComPacT NSX
      Device short nameNSX630N
      Product or component typeCircuit breaker
      Device applicationMotor protection
      Poles description3P
      Protected poles description3D
      [In] rated current500 A at 65 °C
      [Ue] rated operational voltage690 V AC 50/60 Hz
      Network typeAC
      Network frequency50/60 Hz
      Suitability for isolationYes conforming to EN/IEC 60947-2
      Utilisation categoryCategory A
      Breaking capacity85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
      50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
      42 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
      30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
      22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
      10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
      85 kA Icu at 240 V AC 50/60 Hz conforming to UL 60947-4-1
      50 kA Icu at 480 V AC 50/60 Hz conforming to UL 60947-4-1
      20 kA Icu at 600 V AC 50/60 Hz conforming to UL 60947-4-1
      Breaking capacity codeN 50 kA 415 V AC
      Trip unit nameMicroLogic 2.3 M
      Trip unit technologyElectronic
      Trip unit protection functionsLSoI
      Control typeToggle
      Circuit breaker mounting modeFixed
      Complementary
      [Ui] rated insulation voltage800 V AC 50/60 Hz
      [Uimp] rated impulse withstand voltage8 kV
      [Ics] rated service breaking capacity85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
      50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
      42 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
      30 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
      11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
      10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
      Mechanical durability15000 cycles
      Electrical durability8000 cycles at 440 V In/2
      4000 cycles at 440 V In
      6000 cycles at 690 V In/2
      2000 cycles at 690 V In
      Power dissipation per pole39.7 W
      Mounting supportBackplate
      Mounting positionHorizontal and vertical
      Flat on the back
      Upside connectionFront
      Downside connectionFront
      Connection pitch45 mm
      Protection typeL : for overload protection (long time)
      So : for short time short-circuit protection with fixed delay
      I : for instantaneous short-circuit protection
      Trip unit rating500 A at 65 °C
      Motor tripping class10
      20
      5
      Complementary motor protectionPhase unbalance
      Long-time pick-up adjustment type Ir (thermal protection)Adjustable 9 settings
      [Ir] long-time protection pick-up adjustment range250…500 A
      Long-time protection delay adjustment type trFixed
      [tr] long-time delay adjustment range120 s at 1.5 x Ir for trip class 5
      6.5 s at 6 x Ir for trip class 5
      5 s at 7.2 x Ir for trip class 5
      240 s at 1.5 x Ir for trip class 10
      13.5 s at 6 x Ir for trip class 10
      10 s at 7.2 x Ir for trip class 10
      480 s at 1.5 x Ir for trip class 20
      26 s at 6 x Ir for trip class 20
      20 s at 7.2 x Ir for trip class 20
      Thermal memory20 minutes before and after tripping
      Short-time protection pick-up adjustment type IsdAdjustable 9 settings
      [Isd] Short-time protection pick-up adjustment range5…13 x Ir
      Short-time protection delay adjustment type tsdFixed
      Instantaneous protection pick-up adjustment type IiFixed
      [Ii] instantaneous protection pick-up adjustment range6500 A
      Earth-leakage protectionWithout
      Zone selective interlocking ZSIWithout
      Number of slots6 slot(s)
      Local signallingFlashing LED (green) for ready to operate
      LED 95 % Ith (red) for temperature over set point
      Width (W)140 mm
      Height (H)255 mm
      Depth (D)110 mm
      Product weight6.2 kg
      Environment
      StandardsEN/IEC 60947-2
      Overvoltage categoryIII
      Electrical shock protection classClass II on front face
      Pollution degree3 conforming to IEC 60664-1
      IP degree of protectionIP40 conforming to IEC 60529
      IK degree of protectionIK07 conforming to IEC 62262
      Ambient air temperature for operation-25…70 °C
      Ambient air temperature for storage-50…85 °C
      Relative humidity0…95 %
      Operating altitude0…2000 m without derating
      2000 m…5000 m with derating
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height23.800 cm
      Package 1 Width16.500 cm
      Package 1 Length31.000 cm
      Package 1 Weight5.777 kg
      Unit Type of Package 2S04
      Number of Units in Package 22
      Package 2 Height30.000 cm
      Package 2 Width40.000 cm
      Package 2 Length60.000 cm
      Package 2 Weight12.204 kg
      Unit Type of Package 3P12
      Number of Units in Package 38
      Package 3 Height45.000 cm
      Package 3 Width80.000 cm
      Package 3 Length120.000 cm
      Package 3 Weight60.816 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • 630 A frame rating — handles the full rated current continuously; designed for feeder and sub-distribution protection where fault levels exceed MCB capability.
      • Performance level N — breaking capacity 50 kA (normal high breaking, for industrial main distribution boards).
      • Thermal-magnetic trip unit — factory-calibrated overload and short-circuit protection; suitable for standard feeder circuits without electronic adjustment.
      • CompacT NSX form factor — 70mm wide per pole; designed for high-density LV switchboards with up to 3 units per standard 250mm busbar bay.
      • Rotary handle with padlocking points — LOTO compliant; handle locks in OFF position with up to 3 padlocks, preventing accidental energisation during maintenance.
      • Manufactured to IEC 60947-2 / IS 13947-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      LV432614TLV432621TLV432631LV432593LV432591LV432570LV4324642945029452LV429387LV429388LV429407LV429408LV432597TLV432598TLV432641LV432538LV429454LV432513

      ❓ Frequently Asked Questions

      Q: What load can the C63N32M500 protect at its rated 630 A?

      A: The C63N32M500 is rated to carry and protect circuits up to 630 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 630 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

      Q: What does the 50 kA breaking capacity on the C63N32M500 mean in practice?

      A: Breaking capacity (50 kA) is the maximum prospective short-circuit current the C63N32M500 can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 50 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

      Q: Can the C63N32M500 be motorised for remote switching and automation?

      A: Yes. Schneider Electric MCCBs in this series support rotary handle adaptation and motorised operating mechanisms as accessories, enabling remote ON/OFF switching via PLC, SCADA, or BMS. Motorised MCCBs are used for automatic load management and remote trip in automated distribution systems.

      Q: What trip unit type does the C63N32M500 use — thermal-magnetic or electronic?

      A: Refer to the product label or datasheet for the exact trip unit specification. The trip unit determines adjustability and protection accuracy.

      Q: Is the C63N32M500 suitable for use as a motor branch circuit protector (Type E coordination)?

      A: MCCBs used for motor branch circuit protection must be coordinated with the downstream overload relay for Type 2 coordination (no damage to contactor or relay on short-circuit). Verify the Schneider Electric coordination table for the specific contactor-overload-MCCB combination to confirm Type 1 or Type 2 coordination is achieved.

      Customer Reviews

      Related Products

      Solar Controller for 415V Induction motor pumps,10HP,Without RMU L T CS91466PO1O newbradd 7

      Solar Controller for 415V Induction motor pumps,3HP,Without RMU | L&T – CS91463PO1O

      Lauritz Knudsen (L&T)
      Read more
      SKU: CS91463PO1O
      MU-G10HN, 10HP, 20-32A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application L T CS92

      MU-G7.5,7.5HP,13-22A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application | L&T – CS92103SODO

      Lauritz Knudsen (L&T)
      ₹12,550.00 Excl. GST
      Add to basket
      SKU: CS92103SODO
      XB5AR31N Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO Schneider Electric xb5
      -46%

      XB5AR31N | Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO – Schneider Electric

      Schneider Electric
      Original price was: ₹675.00.Current price is: ₹364.50. Excl. GST
      Add to basket
      SKU: XB5AR31N
      ZB2BW36C Ø 22 mm fixing hole push button head with blue lamp Schneider Electric zb2bw36c
      -35%

      ZB2BW36C | Ø 22 mm fixing hole – push button head with blue lamp – Schneider Electric

      Schneider Electric
      Original price was: ₹305.00.Current price is: ₹198.25. Excl. GST
      Add to basket
      SKU: ZB2BW36C
      Placeholder
      -20%

      MS13MD09 | 7MDL, 1HP 3 PHASE DOL STARTER – Schneider Electric

      Schneider Electric
      Original price was: ₹5,530.00.Current price is: ₹4,424.00. Excl. GST
      Add to basket
      SKU: MS13MD09
      Placeholder
      -50%

      30002572 | EM1200 Energy meter Cl 0.5 RS485 LCD – Schneider Electric

      Schneider Electric
      Original price was: ₹6,271.00.Current price is: ₹3,135.50. Excl. GST
      Add to basket
      SKU: 30002572
