C63V46E630 NSX630HB1 75kA AC 4P 630A 6.3E Schneider Electric c63v46e630
Click to enlarge

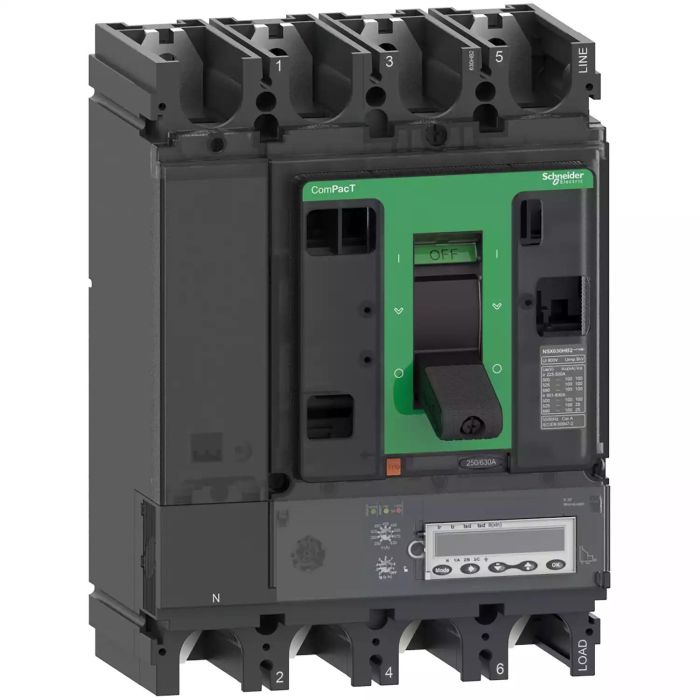

    C63V46E630 | NSX630HB1 75kA AC 4P 630A 6.3E – Schneider Electric

    SKU: C63V46E630

    Original price was: ₹705,250.00.Current price is: ₹319,125.63. Excl. GST

    Dispatch By : 8 Weeks

    Dispatch By : 8 Weeks

    18 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    -46%

    LV432614T | INTERLOCKING 400-630 FOR TOGGLE – Schneider Electric

    Schneider Electric
    Original price was: ₹23,240.00.Current price is: ₹12,549.60. Excl. GST
    Add to basket
    SKU: LV432614T
    LV429407 MN undervoltage release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50 60 Hz,
    -48%

    LV429407 | MN undervoltage release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50/60 Hz, 208 to 277 VAC 60 Hz – Schneider Electric

    Schneider Electric
    Original price was: ₹5,880.00.Current price is: ₹3,057.60. Excl. GST
    Add to basket
    SKU: LV429407
    LV432539 COMPACT PLUG IN BASE KIT 4P Schneider Electric lv
    -46%

    LV432539 | COMPACT PLUG IN BASE KIT 4P – Schneider Electric

    Schneider Electric
    Original price was: ₹59,740.00.Current price is: ₹32,259.60. Excl. GST
    Add to basket
    SKU: LV432539
    -50%

    LV429408 | MN 380-415V50/60HZ 440-480V60HZ UVR – Schneider Electric

    Schneider Electric
    Original price was: ₹5,880.00.Current price is: ₹2,969.40. Excl. GST
    Add to basket
    SKU: LV429408
    -46%

    LV429454 | Wireless auxiliary contact NSX – Schneider Electric

    Schneider Electric
    Original price was: ₹6,670.00.Current price is: ₹3,601.80. Excl. GST
    Add to basket
    SKU: LV429454
    LV429387 MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50 60 Hz, 20
    -48%

    LV429387 | MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50/60 Hz, 208 to 277 VAC 60 Hz – Schneider Electric

    Schneider Electric
    Original price was: ₹4,740.00.Current price is: ₹2,464.80. Excl. GST
    Add to basket
    SKU: LV429387
    29450 standard auxiliary contact, circuit breaker status OF-SD-SDE-SDV, 1 single contact Schneider Electric 29450 main image
    -48%

    29450 | standard auxiliary contact, circuit breaker status OF-SD-SDE-SDV, 1 single contact – Schneider Electric

    Schneider Electric
    Original price was: ₹1,640.00.Current price is: ₹852.80. Excl. GST
    Add to basket
    SKU: 29450
    LV429388 MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 380 to 415 VAC 50 60 Hz, 44
    -48%

    LV429388 | MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 380 to 415 VAC 50/60 Hz, 440 to 480 VAC 60 Hz – Schneider Electric

    Schneider Electric
    Original price was: ₹4,740.00.Current price is: ₹2,464.80. Excl. GST
    Add to basket
    SKU: LV429388
    Placeholder
    -46%

    LV432631 | FIXED LOCKING DEVICE FOR 3 PADLOCKS – Schneider Electric

    Original price was: ₹1,860.00.Current price is: ₹1,004.40. Excl. GST
    Add to basket
    SKU: LV432631
    -46%

    LV432513 | TORQUE LIMITING SCREWS (SET OF 12) – Schneider Electric

    Schneider Electric
    Original price was: ₹5,770.00.Current price is: ₹3,115.80. Excl. GST
    Add to basket
    SKU: LV432513
    LV432570 interphase barriers, Compact NSX 400 630, EasyPact CVS 400 630, set of 6 parts Schneider Electric odalv432570 1500x1
    -46%

    LV432570 | interphase barriers, Compact NSX 400/630, EasyPact CVS 400/630, set of 6 parts – Schneider Electric

    Schneider Electric
    Original price was: ₹1,550.00.Current price is: ₹837.00. Excl. GST
    Add to basket
    SKU: LV432570
    -45%

    LV432465 | Vigi 200-440V 4P for NSX400/630 – Schneider Electric

    Schneider Electric
    Original price was: ₹119,860.00.Current price is: ₹65,923.00. Excl. GST
    Add to basket
    SKU: LV432465
    -46%

    LV432594 | 1 4P LONG TERMINAL SHIELD – Schneider Electric

    Schneider Electric
    Original price was: ₹2,320.00.Current price is: ₹1,252.80. Excl. GST
    Add to basket
    SKU: LV432594
    -46%

    LV432621T | INTERLOCKING 400-630 FOR DIR ROT-HANDLE – Schneider Electric

    Schneider Electric
    Original price was: ₹23,240.00.Current price is: ₹12,549.60. Excl. GST
    Add to basket
    SKU: LV432621T
    -46%

    LV432592 | 1 4P SHORT TERMINAL SHIELD – Schneider Electric

    Schneider Electric
    Original price was: ₹1,480.00.Current price is: ₹799.20. Excl. GST
    Add to basket
    SKU: LV432592
    -46%

    LV432597T | ROTARY HANDLE DIR 400-630 BLK – Schneider Electric

    Schneider Electric
    Original price was: ₹3,620.00.Current price is: ₹1,954.80. Excl. GST
    Add to basket
    SKU: LV432597T
    LV432641 motor mechanism, MT 400-630, Compact NSX400 630, PowerPact Multistandard L, 220 to 240 VAC 50 60 Hz, 208 to 277 VAC
    -48%

    LV432641 | motor mechanism, MT 400-630, Compact NSX400/630, PowerPact Multistandard L, 220 to 240 VAC 50/60 Hz, 208 to 277 VAC 60 Hz – Schneider Electric

    Schneider Electric
    Original price was: ₹78,730.00.Current price is: ₹40,939.60. Excl. GST
    Add to basket
    SKU: LV432641
    -46%

    LV432598T | ROTARY HANDLE EXT 400-630 BLK – Schneider Electric

    Schneider Electric
    Original price was: ₹5,870.00.Current price is: ₹3,169.80. Excl. GST
    Add to basket
    SKU: LV432598T

      The Schneider Electric C63V46E630 is a mccb from the ComPacT range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 630 A at 40 °C, 690 V AC 50/60 Hz, 4P. Buy the C63V46E630 | NSX630HB1 75kA AC 4P 630A 6.3E online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKUC63V46E630
      CategoryMCCB
      Main
      RangeComPacT
      Product nameComPacT NSX
      Device short nameNSX630HB1
      Product or component typeCircuit breaker
      Device applicationDistribution
      Poles description4P
      Protected poles description4D
      3D + OSN
      3D + N/2
      3D
      Neutral positionLeft
      [In] rated current630 A at 40 °C
      [Ue] rated operational voltage690 V AC 50/60 Hz
      Network typeAC
      Network frequency50/60 Hz
      Suitability for isolationYes conforming to EN/IEC 60947-2
      Utilisation categoryCategory A
      Breaking capacity85 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
      80 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
      75 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
      Breaking capacity codeHB1 75 kA 690 V AC
      Trip unit nameMicroLogic 6.3 E
      Trip unit technologyElectronic
      Trip unit protection functionsLSIG
      Control typeToggle
      Circuit breaker mounting modeFixed
      Complementary
      [Ui] rated insulation voltage800 V AC 50/60 Hz
      [Uimp] rated impulse withstand voltage8 kV
      [Ics] rated service breaking capacity85 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
      80 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
      75 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
      Mechanical durability15000 cycles
      Electrical durability8000 cycles at 440 V In/2
      4000 cycles at 440 V In
      6000 cycles at 690 V In/2
      2000 cycles at 690 V In
      Power dissipation per pole39.7 W
      Mounting supportBackplate
      Mounting positionHorizontal and vertical
      Flat on the back
      Upside connectionFront
      Downside connectionFront
      Connection pitch45 mm
      Protection typeL : for overload protection (long time)
      S : for short time short-circuit protection
      I : for instantaneous short-circuit protection
      G : for ground fault protection
      Trip unit rating630 A at 40 °C
      Long-time pick-up adjustment type Ir (thermal protection)Adjustable 9 settings
      [Ir] long-time protection pick-up adjustment range250…630 A
      Long-time protection delay adjustment type trAdjustable
      [tr] long-time delay adjustment range15…400 s at 1.5 x Ir
      0.5…16 s at 6 x Ir
      0.35…11 s at 7.2 x Ir
      Neutral protection setting0.5 x Ir (3D + N/2)
      1 x Ir (4D)
      1.6 x Ir (3D + OSN)
      No protection (3D)
      Thermal memory20 minutes before and after tripping
      Short-time protection pick-up adjustment type IsdAdjustable
      [Isd] Short-time protection pick-up adjustment range1.5…10 x Ir
      Short-time protection delay adjustment type tsdAdjustable 5 settings
      [tsd] short-time delay adjustment range0…0.4 s I²t=off
      0.1…0.4 s I²t=on
      Instantaneous protection pick-up adjustment type IiAdjustable
      [Ii] instantaneous protection pick-up adjustment range1.5…11 x In
      Ground-fault protection pick-up adjustment type IgAdjustable 9 settings
      [Ig] ground-fault pick-up adjustment range0.4…1 x In for In = 40 A
      0.2…1 x In for In > 40 A
      Ig enable on/off
      Ground-fault protection time delay adjustment type tgAdjustable 5 settings
      [tg] Ground-fault time delay adjustment range0…0.4 s I²t=off
      0.1…0.4 s I²t=on
      Earth-leakage protectionWithout
      Zone selective interlocking ZSIWith
      Number of slots6 slot(s)
      Local signallingFlashing LED (green) for ready to operate
      LED 105 % Ir (red) for overload
      LED 90 % Ir (orange) for overload
      Display typeLCD display
      Type of measurementEnergy meter
      Communication of dataDemand current and power
      Instantaneous and demand values
      Power quality
      Energy metering
      Maintenance indicators
      Maximeters/minimeters
      Time-stamped histories and event tables
      Protection and alarm settings
      Width (W)185 mm
      Height (H)255 mm
      Depth (D)110 mm
      Product weight8.13 kg
      Environment
      StandardsEN/IEC 60947-2
      Overvoltage categoryIII
      Electrical shock protection classClass II on front face
      Pollution degree3 conforming to IEC 60664-1
      IP degree of protectionIP40 conforming to IEC 60529
      IK degree of protectionIK07 conforming to IEC 62262
      Ambient air temperature for operation-25…70 °C
      Ambient air temperature for storage-40…85 °C
      Relative humidity0…95 %
      Operating altitude0…2000 m without derating
      2000 m…5000 m with derating
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height15.2 cm
      Package 1 Width20.3 cm
      Package 1 Length29.2 cm
      Package 1 Weight7.651 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • 630 A frame rating — handles the full rated current continuously; designed for feeder and sub-distribution protection where fault levels exceed MCB capability.
      • 75 kA breaking capacity at 415V AC — safely clears bolted three-phase faults in high-power substations and MV/LV transformer secondaries.
      • Thermal-magnetic trip unit — factory-calibrated overload and short-circuit protection; suitable for standard feeder circuits without electronic adjustment.
      • 4 Poles — three-phase + switched neutral (TN-S system) for full four-pole isolation per IEC 60364.
      • CompacT NSX form factor — 70mm wide per pole; designed for high-density LV switchboards with up to 3 units per standard 250mm busbar bay.
      • Rotary handle with padlocking points — LOTO compliant; handle locks in OFF position with up to 3 padlocks, preventing accidental energisation during maintenance.
      • Manufactured to IEC 60947-2 / IS 13947-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      LV432614TLV432621TLV432631LV432594LV432592LV432570LV4324652945029452LV429387LV429388LV429407LV429408LV432597TLV432598TLV432641LV432539LV429454LV432513

      ❓ Frequently Asked Questions

      Q: What load can the C63V46E630 protect at its rated 630 A?

      A: The C63V46E630 is rated to carry and protect circuits up to 630 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 630 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

      Q: What does the 75 kA breaking capacity on the C63V46E630 mean in practice?

      A: Breaking capacity (75 kA) is the maximum prospective short-circuit current the C63V46E630 can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 75 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

      Q: Can the C63V46E630 be motorised for remote switching and automation?

      A: Yes. Schneider Electric MCCBs in this series support rotary handle adaptation and motorised operating mechanisms as accessories, enabling remote ON/OFF switching via PLC, SCADA, or BMS. Motorised MCCBs are used for automatic load management and remote trip in automated distribution systems.

      Q: What trip unit type does the C63V46E630 use — thermal-magnetic or electronic?

      A: Refer to the product label or datasheet for the exact trip unit specification. The trip unit determines adjustability and protection accuracy.

      Q: Is the C63V46E630 suitable for use as a motor branch circuit protector (Type E coordination)?

      A: MCCBs used for motor branch circuit protection must be coordinated with the downstream overload relay for Type 2 coordination (no damage to contactor or relay on short-circuit). Verify the Schneider Electric coordination table for the specific contactor-overload-MCCB combination to confirm Type 1 or Type 2 coordination is achieved.

      Customer Reviews

      Related Products

      Solar Controller for 415V Induction motor pumps,10HP,Without RMU L T CS91466PO1O newbradd 7

      Solar Controller for 415V Induction motor pumps,3HP,Without RMU | L&T – CS91463PO1O

      Lauritz Knudsen (L&T)
      Read more
      SKU: CS91463PO1O
      MU-G10HN, 10HP, 20-32A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application L T CS92

      MU-G7.5,7.5HP,13-22A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application | L&T – CS92103SODO

      Lauritz Knudsen (L&T)
      ₹12,550.00 Excl. GST
      Add to basket
      SKU: CS92103SODO
      XB5AR31N Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO Schneider Electric xb5
      -46%

      XB5AR31N | Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO – Schneider Electric

      Schneider Electric
      Original price was: ₹675.00.Current price is: ₹364.50. Excl. GST
      Add to basket
      SKU: XB5AR31N
      ZB2BW36C Ø 22 mm fixing hole push button head with blue lamp Schneider Electric zb2bw36c
      -35%

      ZB2BW36C | Ø 22 mm fixing hole – push button head with blue lamp – Schneider Electric

      Schneider Electric
      Original price was: ₹305.00.Current price is: ₹198.25. Excl. GST
      Add to basket
      SKU: ZB2BW36C
      Placeholder
      -20%

      MS13MD09 | 7MDL, 1HP 3 PHASE DOL STARTER – Schneider Electric

      Schneider Electric
      Original price was: ₹5,530.00.Current price is: ₹4,424.00. Excl. GST
      Add to basket
      SKU: MS13MD09
      Placeholder
      -50%

      30002572 | EM1200 Energy meter Cl 0.5 RS485 LCD – Schneider Electric

      Schneider Electric
      Original price was: ₹6,271.00.Current price is: ₹3,135.50. Excl. GST
      Add to basket
      SKU: 30002572
