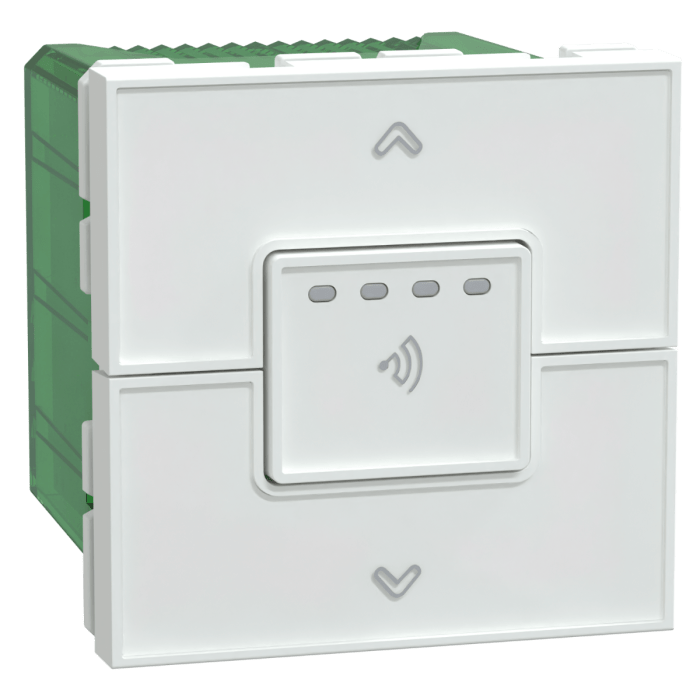

CD4SFR2M_WE | 4 Step Connected Fan Regulator,White – Schneider Electric
Original price was: ₹7,600.00.₹2,812.00Current price is: ₹2,812.00. Excl. GST
SKU:
CD4SFR2M_WE
-63%
CS16A1MSW_GY | 16A 1M Connected Switch,Grey – Schneider Electric
Original price was: ₹9,450.00.₹3,496.50Current price is: ₹3,496.50. Excl. GST
SKU:
CS16A1MSW_GY
-63%

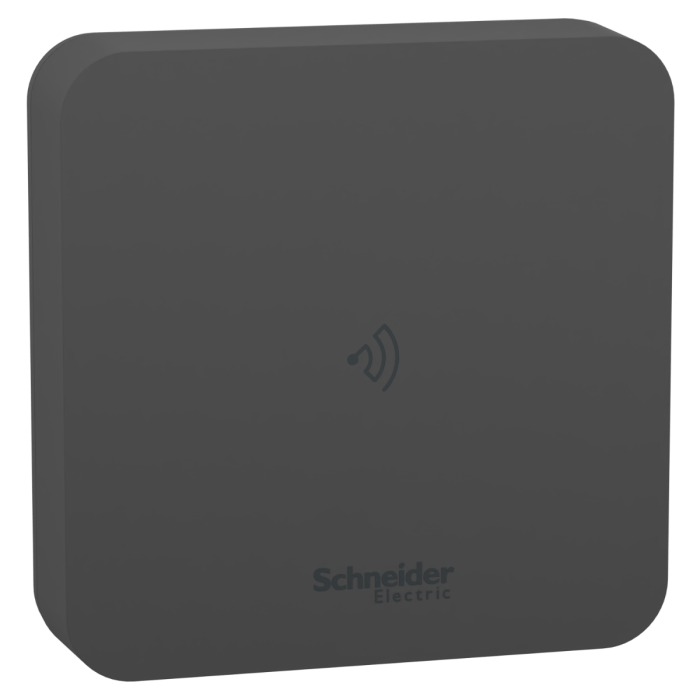

CCIRC1M | IR Controller – Schneider Electric
Original price was: ₹10,000.00.₹3,700.00Current price is: ₹3,700.00. Excl. GST
SKU:
CCIRC1M
-63%

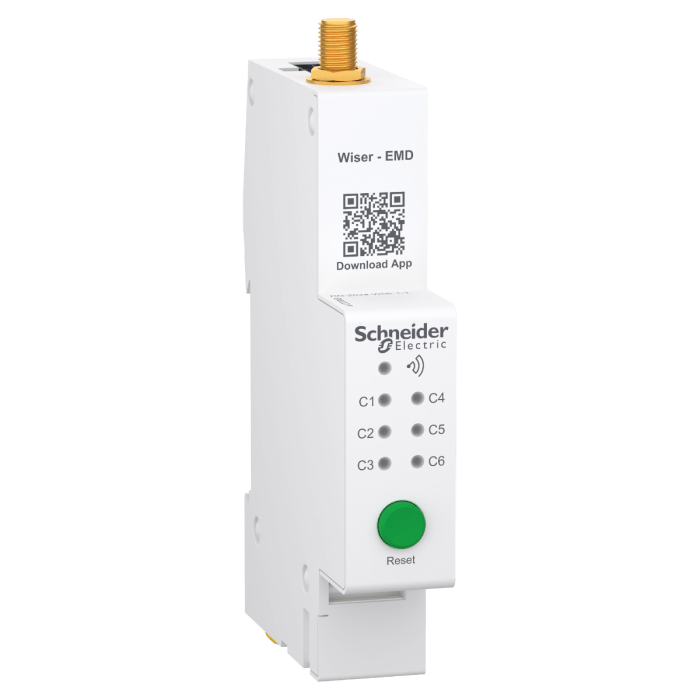

ENMOD1P | Energy Monitoring Device, Single Ph – Schneider Electric
Original price was: ₹34,200.00.₹12,654.00Current price is: ₹12,654.00. Excl. GST
SKU:
ENMOD1P
-63%

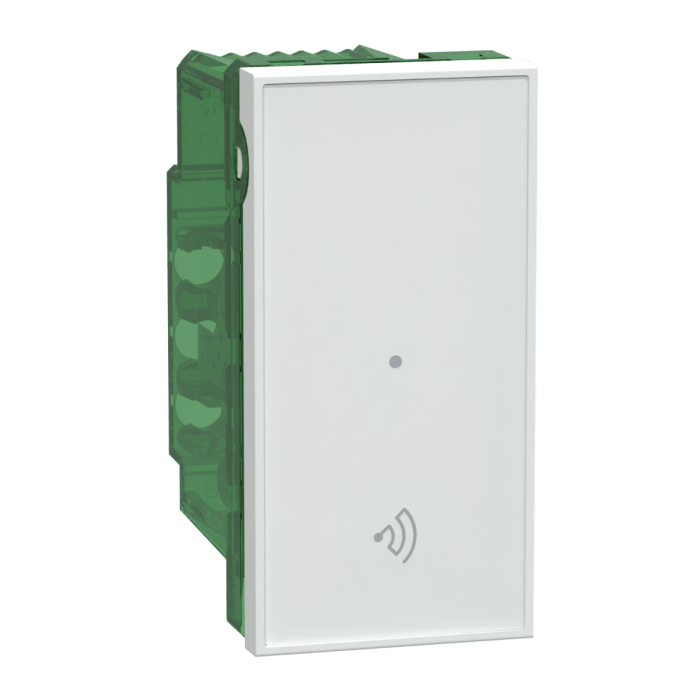

CS16A1MSW_WE | 16A 1M Connected Switch,White – Schneider Electric
Original price was: ₹7,200.00.₹2,664.00Current price is: ₹2,664.00. Excl. GST
SKU:
CS16A1MSW_WE

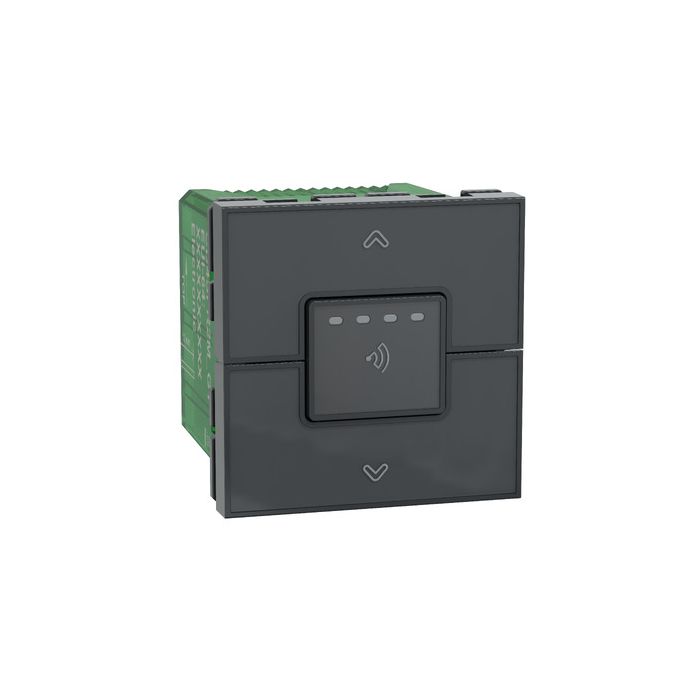

Looking for the CD4SFR2M_GY | 4 Step Connected Fan Regulator,Grey? This genuine Schneider Electric ceiling fan from the Wiser range is built for efficient lighting and comfort, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 230 V AC 50 Hz, IP20. Order part number CD4SFR2M_GY from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.
📋 Technical Specifications
| Product | |
| Brand | Schneider Electric |
| Part Number / SKU | CD4SFR2M_GY |
| Category | Ceiling Fan |
| Main | |
| Product brand | Schneider Electric |
| Range | Wiser |
| Product or component type | Connected fan regulator |
| Complementary | |
| Mobile App name | Wiser |
| Device application | Fan speed controller |
| Device presentation | Mechanism |
| Switch application | Fan |
| Load type | Fan: 80 W |
| Function available | Monitoring of currents |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| Colour tint | Grey |
| Surface finish | Glossy |
| Number of modules | 2 modules |
| Connections – terminals | Pre-wired cable, 0.5…1 mm² |
| Communication network type | Wi-Fi IEEE 802.11 |
| Number of outputs | 1 |
| Control type | Push-button |
| Provided equipment | User manual |
| Wiring configuration | 3-wire |
| Material | Polycarbonate |
| Device mounting | Flush |
| fixing mode | Snap-fitted |
| Type of installation | Indoor installation |
| Embedding depth | 50 mm |
| Depth | 42 mm |
| Width | 45 mm |
| Height | 45 mm |
| Standards | IEC 60669-2-1 |
| Transmission frequency | 2.4 GHz |
| Environment | |
| Ambient air temperature for operation | -5…45 °C |
| Ambient air temperature for storage | -5…45 °C |
| IP degree of protection | IP20 |
| IK degree of protection | IK04 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.3 cm |
| Package 1 Width | 5 cm |
| Package 1 Length | 7.3 cm |
| Package 1 Weight | 60 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 7.6 cm |
| Package 2 Width | 7.6 cm |
| Package 2 Length | 26 cm |
| Package 2 Weight | 325 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 4.54 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
⚡ Key Features
- Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
- BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
- Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
- GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
- Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
🔗 Compatible Products & Accessories
The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:
CCIRC1MB1GTEWYCS16A1MSW_WECS16A1MSW_GYCD4SFR2M_WECDWCRTC2M_WECR2CHRLYPGCDWRLY1CH16AENMOD3PENMOD1P
