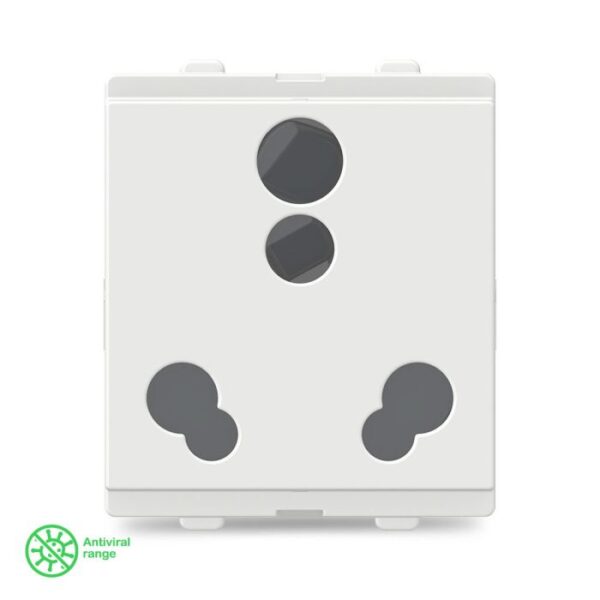

CPX616SK_WE | ClipsalX Antiviral-6A/16A 3P Socket with Shutter – Schneider Electric

Name: CPX616SK_WE | ClipsalX Antiviral-6A/16A 3P Socket with Shutter - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: CPX616SK_WE
Price: 7.19 EUR
Availability: OutOfStock

SKU: CPX616SK_WE

€7.19 Excl. GST

Out of stock

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the CPX616SK_WE | ClipsalX Antiviral-6A/16A 3P Socket with Shutter? This genuine Schneider Electric industrial plug & socket (iec 60309) from the Clipsal range is built for everyday wiring and control, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 250 V, 3 Poles, IP20. Order part number CPX616SK_WE from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	CPX616SK_WE
Category	Industrial Plug & Socket (IEC 60309)
Main
Range	Clipsal
Device application	Connection
Product or component type	Socket-outlet
Socket additional information	Shuttered
Outlet poles configuration	3P with shutters India 3P with shutters
Colour tint	White
Rated current	6/16 A
Colour tint	White
Complementary
Device presentation	Mechanism
Device mounting	Flush
Rated current	6/16 A at 250 V AC 50/60 Hz 16 A at 250 V AC 50…60 Hz
Number of modules	2
Material	PC (polycarbonate)
Connections – terminals	Shrouded terminals
Width	42 mm
Height	51 mm
Depth	30 mm
resistance to chemical agents	Not resistant to alcohols Not resistant to cleaning agent Not resistant to thinner
[Ue] rated operational voltage	250 V
Network type	AC
Network frequency	50/60 Hz
Material	PC: front cover PA (polyamide) 6: base cover
Environment
Ambient air temperature for operation	-5…35 °C
Ambient air temperature for storage	-5…35 °C
Relative humidity	0…95 %
Environmental characteristic	Flame retardant
Standards	IS 1293:2005
IP degree of protection	IP20
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.18 cm
Package 1 Width	5.08 cm
Package 1 Length	6.35 cm
Package 1 Weight	25 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	5.5 cm
Package 2 Width	10 cm
Package 2 Length	16 cm
Package 2 Weight	391 g
Unit Type of Package 3	CAR
Number of Units in Package 3	320
Package 3 Height	21 cm
Package 3 Width	33.5 cm
Package 3 Length	44 cm
Package 3 Weight	10.69 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: How do I identify the correct CPX616SK_WE socket to pair with this plug?

A: IEC 60309 plugs and sockets are colour-coded and keyed by voltage/frequency: Red body = 380–415V 3-phase 50Hz (India standard). The keyway angle on the plug must match the socket’s keyway — this is factory-set per voltage and prevents wrong-voltage mating. Always purchase matching plug and socket from the same Schneider Electric catalogue to ensure correct keying and IP rating.
