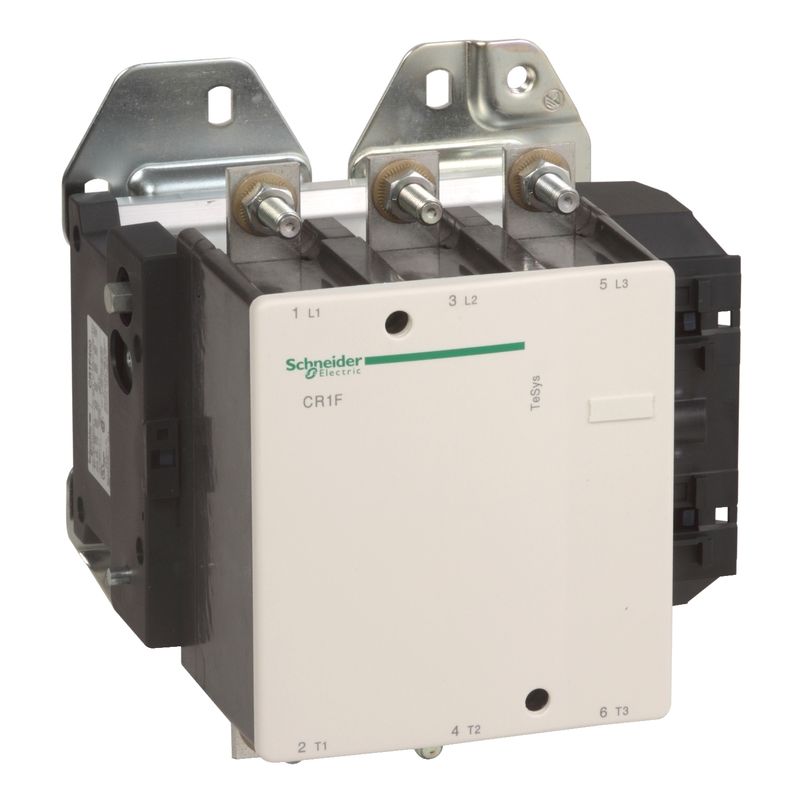

CR1F400F7 | LATCH CONTACTOR 400A AC3/500A AC1 110VAC – Schneider Electric

Name: CR1F400F7 - TeSys F magnetic latching contactor - 3P(3 NO) - 400 A - 110 V | Schneider Electric
Brand: Schneider Electric
SKU: CR1F400F7
Price: 414952.04 INR
Availability: BackOrder

SKU: CR1F400F7

Original price was: ₹982,135.00.Current price is: ₹414,952.04. Excl. GST

Dispatch By : 7 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	TeSys
Product name	TeSys F
Product or component type	Magnetic latching contactor
Device short name	CR1F
Device application	Control
Contactor application	Resistive load Motor control
Utilisation category	AC-1 AC-3 AC-4
Poles description	3P
power pole contact composition	3 NO
[Ue] rated operational voltage	1000 V AC 25…200 Hz
[Ie] rated operational current	400 A (at <40 °C) at <= 440 V AC AC-3 500 A (at <40 °C) at <= 440 V AC AC-1 370 A (at <40 °C) at <= 440 V AC AC-4
Motor power kW	200 kW at 400 V AC 50/60 Hz (AC-4)
Control circuit type	AC at 50…400 Hz DC standard
[Uc] control circuit voltage	110 V AC 50…400 Hz 110 V DC
Irms rated making capacity	4500 A
Rated breaking capacity	4000 A at 220…440 V 3500 A at 500 V 1200 A at 1000 V 3000 A at 660/690 V
[Icw] rated short-time withstand current	3600 A 40 °C – 1 s 3600 A 40 °C – 5 s 3600 A 40 °C – 10 s 2400 A 40 °C – 30 s 1700 A 40 °C – 1 min 1200 A 40 °C – 3 min 1000 A 40 °C – 10 min
Associated fuse rating	400 A aM at <= 440 V 500 A BS88 at <= 440 V 500 A gG at <= 440 V
Average impedance	0.28 mOhm – Ith 500 A 50 Hz
[Ui] rated insulation voltage	1000 V conforming to IEC 60158-1 1000 V conforming to IEC 60947-4 1000 V conforming to BS 775 1500 V conforming to VDE 0110 group C
Power dissipation per pole	45 W AC-3 70 W AC-1
Standards	EN/IEC 60947-1 EN/IEC 60947-4-1 JIS C8201-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
Product certifications	CB Scheme UL CSA EAC CE UKCA
Connections – terminals	Lugs-ring terminals 2 cable(s) 150 mm² Bars 2 cable(s) – busbar cross section: 30 x 5 mm Power circuit: bolted connection
Tightening torque	35 N.m
Operating time	40…75 ms latching 50…100 ms unlatching
Mechanical durability	1 Mcycles
Maximum operating rate	120 cyc/h 40 °C
Complementary
Control circuit voltage limits	Latching: 0.85…1.1 Uc Unlatching: 0.85…1.1 Uc
average consumption	1600 VA AC 50…400 Hz latching 16 VA AC 50…400 Hz unlatching 1600 VA DC latching 16 VA DC unlatching
Environment
Protective treatment	TC
Ambient air temperature for operation	-15…70 °C
Ambient air temperature for storage	-60…80 °C
Operating altitude	3000 m without derating
Height	206 mm
Width	213 mm
Depth	219 mm
Net weight	9.1 kg
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	25.0 cm
Package 1 Width	23.5 cm
Package 1 Length	30.0 cm
Package 1 Weight	9.28 kg
Contractual warranty
Warranty (in months)	18
