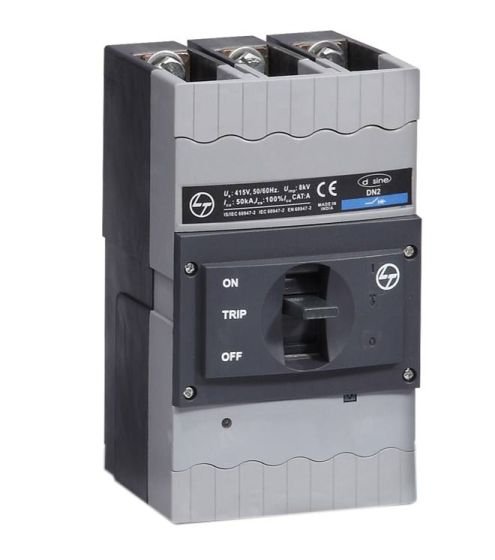

DN2S MCCB 125 3P 415V AC 70kA Thermal Magnetic 50/60 Hz | L&T – CM92002OOL1OG

Name: L&T DN2S MCCB 125A 3P 70kA Thermal Magnetic Circuit Breaker | CM92002OOL1OG
Brand: Lauritz Knudsen (L&T)
SKU: CM92002OOL1OG
Price: 24288.00 INR
Availability: InStock

SKU: CM92002OOL1OG

Original price was: ₹52,800.00.Current price is: ₹24,288.00. Excl. GST

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the CM92002OOL1OG CM92002OOL1OG mccb delivers dependable performance for reliable circuit protection and isolation. Key ratings include 415V AC, 3 Poles. myelectric.in stocks the DN2S MCCB 125 3P 415V AC 70kA Thermal Magnetic 50/60 Hz | L&T for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Parameter	Value
Brand	CM92002OOL1OG
Part Number / SKU	CM92002OOL1OG
Category	MCCB
Voltage Rating	415V AC
Poles	3 Poles
Breaking Capacity	70 kA
Frequency	60 Hz
Rated Operational Voltage (Ue)	415V AC (50/60 Hz)
Mounting	Fixed, front connected
Rated Frequency	50/60 Hz
Standard	IEC 60947-2 / IS 13947-2
Certifications	BIS certified where applicable

⚡ Key Features

70 kA breaking capacity at 415V AC — safely clears bolted three-phase faults in high-power substations and MV/LV transformer secondaries.
Thermal-magnetic trip unit — factory-calibrated overload and short-circuit protection; suitable for standard feeder circuits without electronic adjustment.
3 Poles — three-phase feeder protection; neutral not switched (TN-C / IT systems).
Manufactured to IEC 60947-2 / IS 13947-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified where applicable — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised CM92002OOL1OG product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What does the 70 kA breaking capacity on the CM92002OOL1OG mean in practice?

A: Breaking capacity (70 kA) is the maximum prospective short-circuit current the CM92002OOL1OG can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 70 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

Q: Can the CM92002OOL1OG be motorised for remote switching and automation?

A: Yes. CM92002OOL1OG MCCBs in this series support rotary handle adaptation and motorised operating mechanisms as accessories, enabling remote ON/OFF switching via PLC, SCADA, or BMS. Motorised MCCBs are used for automatic load management and remote trip in automated distribution systems.

Q: What trip unit type does the CM92002OOL1OG use — thermal-magnetic or electronic?

A: The CM92002OOL1OG uses a thermal-magnetic TMD trip unit — thermal bimetal for overload protection and electromagnetic mechanism for short-circuit. Compact, reliable, and maintenance-free for standard applications.

Q: Is the CM92002OOL1OG suitable for use as a motor branch circuit protector (Type E coordination)?

A: MCCBs used for motor branch circuit protection must be coordinated with the downstream overload relay for Type 2 coordination (no damage to contactor or relay on short-circuit). Verify the CM92002OOL1OG coordination table for the specific contactor-overload-MCCB combination to confirm Type 1 or Type 2 coordination is achieved.

Q: After a short-circuit trip on the CM92002OOL1OG, can it be reset and reused immediately?

A: After a short-circuit trip, do not immediately reset the CM92002OOL1OG. First, identify and clear the fault. Then inspect the device — if there is visible arc damage, melted insulation, or the handle does not reset smoothly, the device must be replaced. The 70 kA rated breaking capacity is not unlimited — it is the maximum fault current the device can interrupt safely for a defined number of operations (typically 1–3 at full Icu rating). After any significant fault, factor replacement into your maintenance budget.
