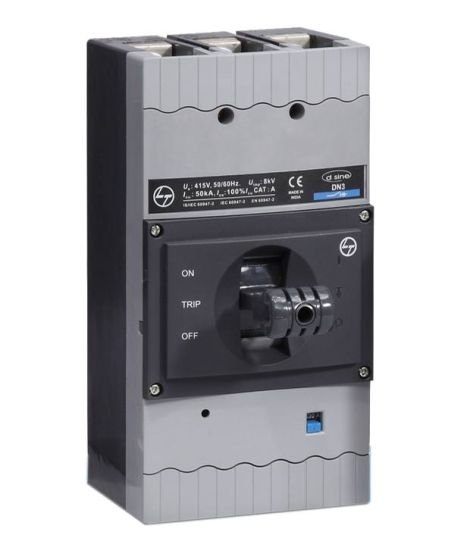

DN3-400S MCCB 400A 3P 415V AC 70kA Thermal Magnetic 50/60Hz | L&T (CM94001OOR1OG)

Key Features:

• Brand: Larsen & Toubro (L&T)
• Model: DN3-400S
• Type: Molded Case Circuit Breaker (MCCB)
• Rated Current: 400A
• Number of Poles: 3P (3-Pole)
• Rated Voltage: 415V AC
• Breaking Capacity: 70kA
• Tripping Mechanism: Thermal Magnetic
• Frequency: 50/60Hz
• Part Number: CM94001OOR1OG

Product Specifications:

• Mounting Type: Fixed
• Operating Temperature: -5°C to +55°C
• Standards: IEC 60947-2
• Termination: Screw Type
• Enclosure Protection: IP20

Applications:

• Industrial electrical distribution
• Commercial power control panels
• HVAC systems
• Motor protection circuits
• Main and sub-distribution boards

Why Choose This MCCB?

• High breaking capacity for enhanced safety
• Reliable thermal-magnetic tripping mechanism
• Robust construction for long service life
• Trusted L&T quality and performance
• Suitable for diverse electrical applications

Package Includes:

• 1 x L&T DN3-400S MCCB (400A, 3P)

Note: For optimal performance, ensure proper installation by a qualified electrician.
