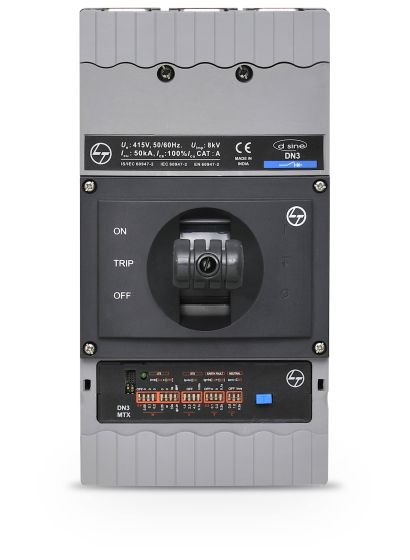

DN3-630D MCCB 630A 3P 415V AC 36kA MTX1.0 50/60Hz | L&T – CM93005OOOOX1
Key Features:
- Current Rating: 630A
- Number of Poles: 3P (Three Pole)
- Rated Voltage: 415V AC
- Breaking Capacity: 36kA
- Mounting Type: Fixed (MTX1.0)
- Frequency: 50/60Hz
- Brand: Larsen & Toubro (L&T)
- Model: DN3-630D
- Part Number: CM93005OOOOX1
Product Overview:
The L&T DN3-630D MCCB is a high-performance molded case circuit breaker designed for reliable protection against overloads and short circuits in electrical systems. With a 630A current rating and 36kA breaking capacity, it ensures robust safety for industrial and commercial applications.
Applications:
- Industrial power distribution
- Commercial electrical panels
- HVAC systems
- Motor protection circuits
- Main and sub-distribution boards
Technical Specifications:
| Parameter | Value |
|---|---|
| Type | MCCB (Molded Case Circuit Breaker) |
| Standard | IEC 60947-2 |
| Rated Insulation Voltage (Ui) | 800V |
| Rated Operational Voltage (Ue) | 415V AC |
| Mechanical Life | 10,000 operations |
| Termination | Screw type |
| Operating Temperature | -5°C to +55°C |
Why Choose This MCCB?
- High breaking capacity for enhanced safety
- Durable construction for long service life
- Precise tripping mechanism
- Compact design saves panel space
- Trusted L&T quality and reliability
Compliance & Certifications:
CE Certified | RoHS Compliant | Meets International Safety Standards
Package Includes:
- 1 x L&T DN3-630D MCCB
- Manufacturer datasheet
