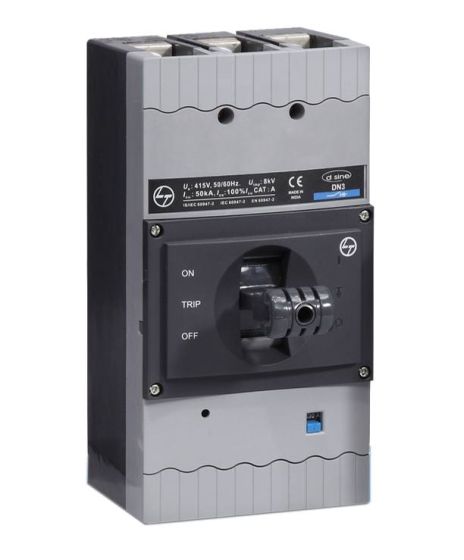

DN3-630N MCCB 500A 3P 415V AC 50kA Thermal Magnetic 50/60Hz | L&T (CM94004OOS1OG)
Key Features:
- Current Rating: 500A
- Number of Poles: 3P (Three Poles)
- Rated Voltage: 415V AC
- Breaking Capacity: 50kA
- Tripping Mechanism: Thermal Magnetic
- Frequency: 50/60Hz
- Brand: Larsen & Toubro (L&T)
- Model: DN3-630N
- Part Number: CM94004OOS1OG
Product Overview:
The L&T DN3-630N MCCB is a high-performance molded case circuit breaker designed for reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. With a 500A current rating and 50kA breaking capacity, it ensures robust protection for high-power circuits.
Applications:
- Industrial power distribution panels
- Commercial buildings
- HVAC systems
- Motor protection circuits
- Main feeder protection
Technical Specifications:
| Parameter | Specification |
|---|---|
| Type | MCCB (Molded Case Circuit Breaker) |
| Frame Size | 630A |
| Rated Current | 500A |
| Number of Poles | 3P |
| Rated Operational Voltage (Ue) | 415V AC |
| Rated Insulation Voltage (Ui) | 690V AC |
| Breaking Capacity (Icu) | 50kA |
| Tripping Type | Thermal Magnetic |
| Frequency | 50/60Hz |
| Standards | IEC 60947-2 |
| Termination | Screw Type |
| Mounting | Fixed Type |
Why Choose This MCCB?
- High breaking capacity for superior protection
- Thermal-magnetic tripping for reliable operation
- Durable construction for long service life
- Compact design saves panel space
- From L&T, India’s most trusted electrical brand
Package Includes:
- 1 x L&T DN3-630N MCCB 500A 3P
