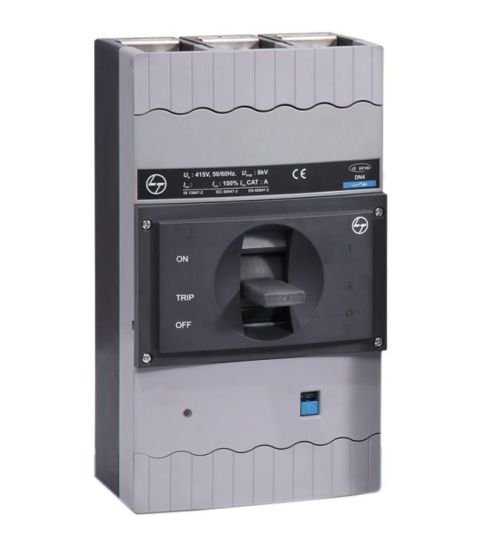

L&T DN4S MCCB 1000A 3P 415V AC 70kA MTX2.0 50/60Hz (CM96026OOOOAG)

Key Features:

• Current Rating: 1000A
• Number of Poles: 3P (Three Pole)
• Rated Voltage: 415V AC
• Breaking Capacity: 70kA
• Mounting Type: MTX2.0 (Fixed Type)
• Frequency: 50/60Hz
• Brand: Larsen & Toubro (L&T)
• Model: DN4S Series
• Part Number: CM96026OOOOAG

Product Specifications:

• Type: Molded Case Circuit Breaker (MCCB)
• Tripping Unit: Microprocessor-based (MTX2.0)
• Termination: Front or Rear Terminal Options
• Standards: IEC 60947-2, IS/IEC 60947-2
• Operating Temperature: -5°C to +55°C
• Protection Functions: Overload, Short Circuit, Ground Fault
• Communication: Optional Communication Module

Applications:

• Industrial Power Distribution
• Commercial Buildings
• HVAC Systems
• Data Centers
• Electrical Panels and Switchboards

Why Choose This MCCB?

• High breaking capacity for reliable protection
• Advanced microprocessor-based tripping unit
• Robust construction for long service life
• Easy installation and maintenance
• From trusted brand L&T

Additional Information:

This DN4S series MCCB from L&T is designed for superior circuit protection in demanding electrical environments. The MTX2.0 tripping unit provides precise protection with adjustable settings. Suitable for both new installations and replacements.
