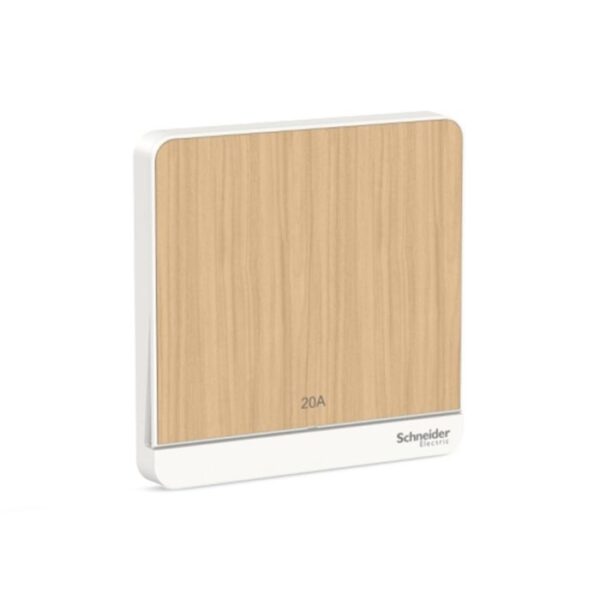

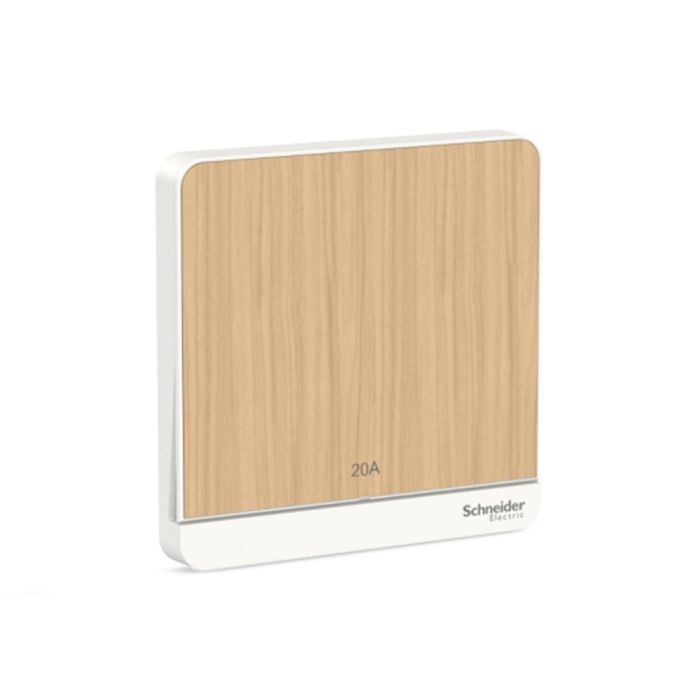

E8331D20N_LW_G8 | Avataron-20A 1G Double Pole Switch With Led, Lw – Schneider Electric

Name: E8331D20N_LW_G8 | Avataron-20A 1G Double Pole Switch With Led, Lw - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: E8331D20N_LW_G8
Price: 1724.47 INR
Availability: BackOrder

SKU: E8331D20N_LW_G8

Original price was: ₹2,827.00.Current price is: ₹1,724.47. Excl. GST

Dispatch By : 6 Weeks

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the E8331D20N_LW_G8 | Avataron-20A 1G Double Pole Switch With Led, Lw? This genuine Schneider Electric lighting fixture from the AvatarOn range is built for efficient lighting and comfort, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include IP20. Order part number E8331D20N_LW_G8 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	E8331D20N_LW_G8
Category	Lighting Fixture
Main
Range	AvatarOn
Product or component type	Switch
Device application	Control
load type	Fluorescent lamps Incandescent lamp Resistive Serial boost load (SBL) Small motor load
Colour tint	Light wood
Colour tint	Light wood
Complementary
Device presentation	Complete product
Rated current	20 A at 250 V AC 50/60 Hz
Switch function	2-pole 1-way
Number of gangs	1 gang
Number of rocker	1
Local signalling	On: LED indicator, LED (amber)
Device mounting	Flush
Connections – terminals	Brass terminal
Clamping connection capacity	3 x 2.5 mm² for stranded cable(s) 1 x 4 mm² for stranded cable(s) 1 x 6 mm² for stranded cable(s)
IP degree of protection	IP20
Width	86 mm
Height	86 mm
Depth	32 mm
Environment
Maximum ambient air temperature for operation	45 °C
Operating altitude	2000 m
Relative humidity	0…95 %
Standards	IEC 60669-1 SS 227-1 BS EN 60669-1 MS IEC 60669-1 IS 3854
Environmental characteristic	UV resistant
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.5 cm
Package 1 Width	8.5 cm
Package 1 Length	8.5 cm
Package 1 Weight	116 g
Unit Type of Package 2	CAR
Number of Units in Package 2	10
Package 2 Height	9.5 cm
Package 2 Width	19 cm
Package 2 Length	19.5 cm
Package 2 Weight	1.16 kg
Contractual warranty
Warranty (in months)	18
