E8331PRL1_WD_G8 | Avataron-10A 1G Momentary Switch, Wd – Schneider Electric

Name: E8331PRL1_WD_G8 | Avataron-10A 1G Momentary Switch, Wd - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: E8331PRL1_WD_G8
Price: 863.15 INR
Availability: BackOrder

SKU: E8331PRL1_WD_G8

Original price was: ₹1,415.00.Current price is: ₹863.15. Excl. GST

Dispatch By : 12 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

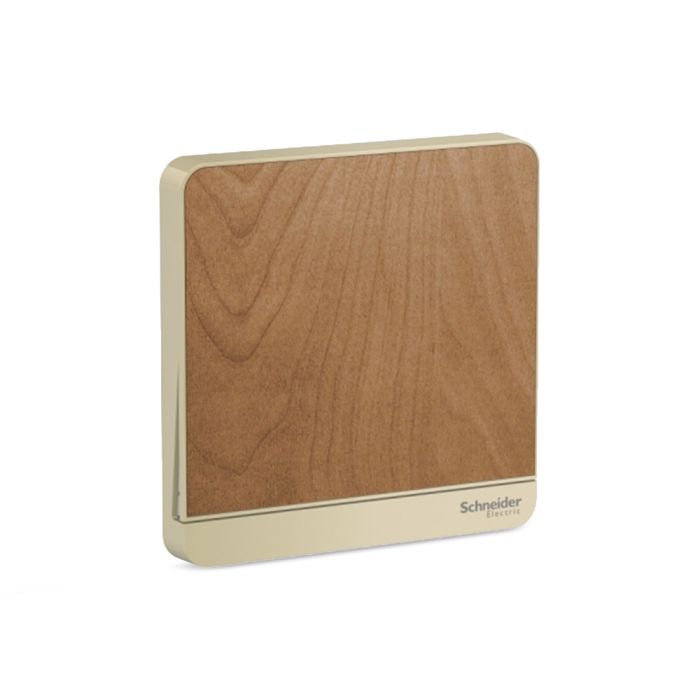

Looking for the E8331PRL1_WD_G8 | Avataron-10A 1G Momentary Switch, Wd? This genuine Schneider Electric switch from the AvatarOn range is built for everyday wiring and control, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include Resistive: 10 A, 250 V AC 50…60 Hz, IP20. Order part number E8331PRL1_WD_G8 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	E8331PRL1_WD_G8
Category	Switch
Main
Range	AvatarOn
Product or component type	Momentary switch
Device presentation	Complete product
Complementary
Device mounting	Flush
Number of gangs	1 gang
Number of rocker	1
Actuator	Rocker
fixing mode	Clip-in
Colour tint	Wood
Surface finish	Glossy
[Ie] rated operational current	Resistive: 10 A Inductive: 10 A
[Ue] rated operational voltage	250 V AC 50…60 Hz
Clamping connection capacity	1…4 mm² for rigid cable(s) 1…4 mm² for stranded cable(s) 1…4 mm² for flexible cable(s)
Wire stripping length	12 mm
Material	PC (polycarbonate): base PC (polycarbonate): base cover PC (polycarbonate): grid plate PC (polycarbonate): surround PC (polycarbonate): dolly Brass: terminal cover
Height	86 mm
Width	86 mm
Depth	34 mm
Embedding depth	25 mm
Product weight	0.077 kg
Environment
IP degree of protection	IP20
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.4 cm
Package 1 Width	8.6 cm
Package 1 Length	8.6 cm
Package 1 Weight	81 g
Unit Type of Package 2	CAR
Number of Units in Package 2	10
Package 2 Height	9.5 cm
Package 2 Width	19 cm
Package 2 Length	19.5 cm
Package 2 Weight	810 g
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
