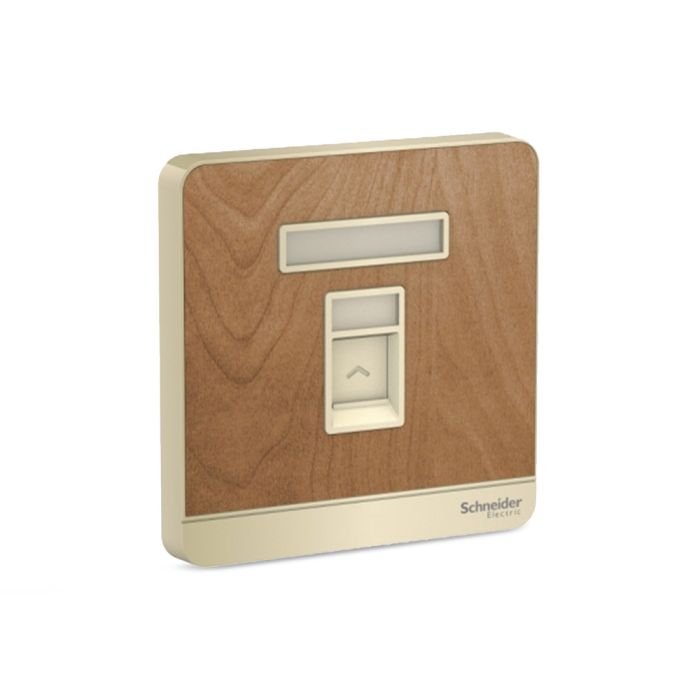

E8331RJS5_WD | Avataron-1G Rj45 Data Cat5E, Shuttered, Wd – Schneider Electric

Name: E8331RJS5_WD | Avataron-1G Rj45 Data Cat5E, Shuttered, Wd - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: E8331RJS5_WD
Price: 1803.77 INR
Availability: BackOrder

SKU: E8331RJS5_WD

Original price was: ₹2,957.00.Current price is: ₹1,803.77. Excl. GST

Dispatch By : 14 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the E8331RJS5_WD | Avataron-1G Rj45 Data Cat5E, Shuttered, Wd? This genuine Schneider Electric data / communication outlet is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include IP20. Order part number E8331RJS5_WD from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	E8331RJS5_WD
Category	Data / Communication Outlet
Main
Product or component type	Data socket
Device application	Communication
Socket additional information	Shuttered
Communication network category	Data: 5e
Number of gangs	1 gang
Colour tint	Wood
Main colour tint	Wood
Complementary
Device presentation	Complete product
Device mounting	Flush Surface
Data socket type	RJ45
Rated current	1.5 A
Material	Polycarbonate: plastic part
Contacts material	Housing: PC Contact: phosphor bronze with gold plating
Contact resistance	1 µOhm
insulation resistance	>= 200 MOhm
Minimum return loss	23 dB
Colour tint	Wood
IP degree of protection	IP20
Width	86 mm
Height	86 mm
Depth	31 mm
Environment
Dielectric strength	1000 V for 60 s at 60 Hz
AWG gauge	AWG 26…AWG 22 (4 twisted pair cables)
Environmental characteristic	No UV resistant
Maximum ambient air temperature for operation	35 °C
Relative humidity	0…95 %
Standards	ASTMD4566-98 TIA/EIA-568-B.2-1
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.1 cm
Package 1 Width	8.6 cm
Package 1 Length	8.6 cm
Package 1 Weight	59 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	9.5 cm
Package 2 Width	19 cm
Package 2 Length	19.5 cm
Package 2 Weight	642 g
Unit Type of Package 3	CAR
Number of Units in Package 3	60
Package 3 Height	21 cm
Package 3 Width	30 cm
Package 3 Length	39.5 cm
Package 3 Weight	4.352 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
