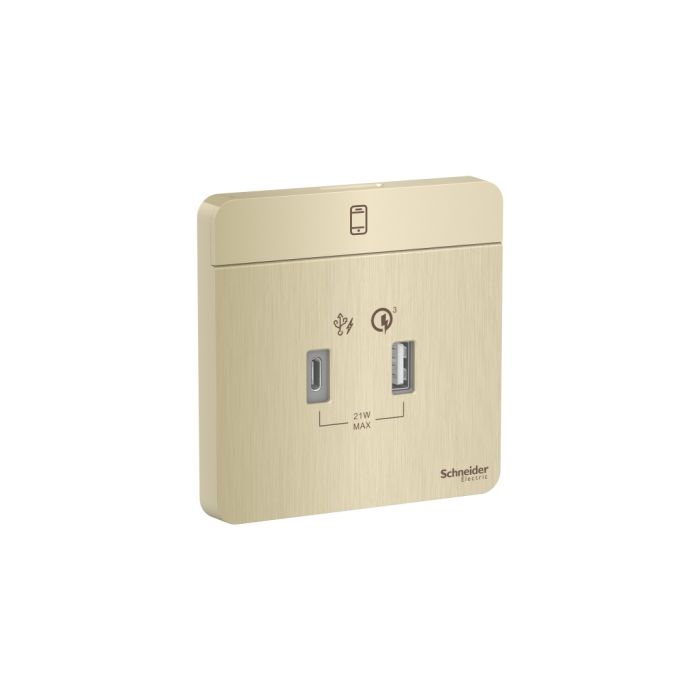

E8332ACQUSB_GH | 21W Type A+C, Pd+Qc3.0 Usb Charger, Gh – Schneider Electric

Name: E8332ACQUSB_GH | 21W Type A+C, Pd+Qc3.0 Usb Charger, Gh - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: E8332ACQUSB_GH
Price: 5369.22 INR
Availability: BackOrder

SKU: E8332ACQUSB_GH

Original price was: ₹8,802.00.Current price is: ₹5,369.22. Excl. GST

Dispatch By : 4 Weeks

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the Schneider Electric E8332ACQUSB_GH usb charger module delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include 100/240 V 50/60 Hz, IP20. myelectric.in stocks the E8332ACQUSB_GH | 21W Type A+C, Pd+Qc3.0 Usb Charger, Gh for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	E8332ACQUSB_GH
Category	USB Charger Module
Main
Product or component type	USB charger
Device application	Charger
Type of USB power supply	USB type A + C
Complementary
Device mounting	Flush
Device presentation	Complete product
Colour tint	Metal gold hairline
Integrated connection type	USB type A 5 V, maximum load current: 2.1 A USB type C 5 V, maximum load current: 2.1 A
Ambient air temperature for storage	-5…60 °C
Relative humidity	0…95 %
[Ue] rated operational voltage	100/240 V 50/60 Hz
Power consumption in W	21 W
maximum load current with 2 outputs used simultaneously	3 A
surface treatment	Untreated
Material	PC (polycarbonate)
Surface finish	Painted
Connections – terminals	Screw terminals
Clamping connection capacity	2.5 mm² for stranded cable(s) 2.5 mm² for solid cable(s) 1.5 mm² for stranded cable(s) 1.5 mm² for solid cable(s)
Wire stripping length	8 mm
Product compatibility	HTC XiaoMi Apple Samsung HW Major smart phone and tablet
Height	86 mm
Width	86 mm
Depth	40.1 mm
Embedding depth	30.4 mm
Product weight	0.1292 kg
Environment
Standards	MS IEC 60950-1 IEC 60950-1 IEC 62368-1 IEC 61558-2-16
Product certifications	IEC
Electrical insulation class	Class II
IP degree of protection	IP20
Environmental characteristic	Liquid soap Alcohol Petrol
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4 cm
Package 1 Width	8.7 cm
Package 1 Length	8.7 cm
Package 1 Weight	134 g
Unit Type of Package 2	CAR
Number of Units in Package 2	10
Package 2 Height	9.5 cm
Package 2 Width	19 cm
Package 2 Length	19.5 cm
Package 2 Weight	1.392 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
