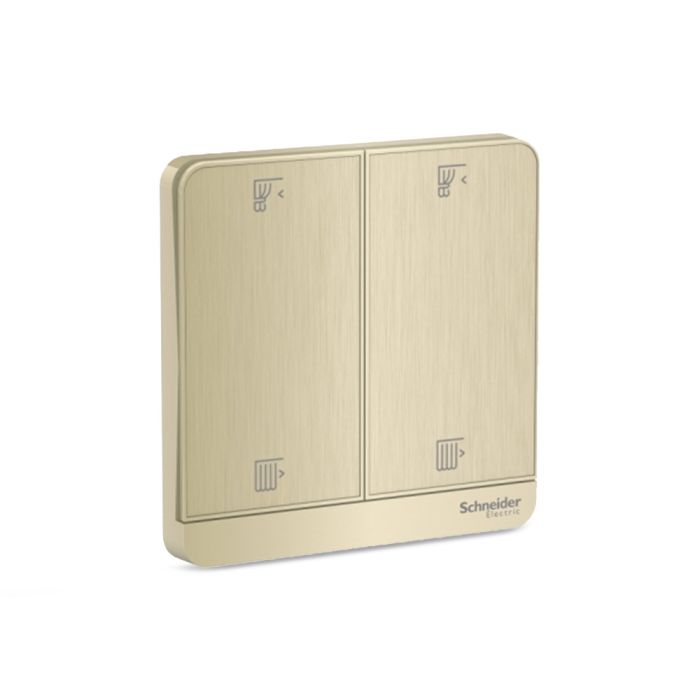

E8332C_GH_G8 | Avataron-2G Mechanical Curtain Switch, Gh – Schneider Electric

Name: E8332C_GH_G8 | Avataron-2G Mechanical Curtain Switch, Gh - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: E8332C_GH_G8
Price: 1335.29 INR
Availability: BackOrder

SKU: E8332C_GH_G8

Original price was: ₹2,189.00.Current price is: ₹1,335.29. Excl. GST

Dispatch By : 2 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the Schneider Electric E8332C_GH_G8 switch from the AvatarOn range delivers dependable performance for everyday wiring and control. Key ratings include IP20. myelectric.in stocks the E8332C_GH_G8 | Avataron-2G Mechanical Curtain Switch, Gh for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	E8332C_GH_G8
Category	Switch
Main
Range	AvatarOn
Product or component type	Switch
Number of gangs	2 gangs
Colour tint	Metal gold hairline
Complementary
Device presentation	Complete product
Device mounting	Surface Flush
Switch function	Curtain
Clamping connection capacity	2 x 2.5 mm² for solid cable(s) 2 x 2.5 mm² for stranded cable(s) 3 x 1.5 mm² for solid cable(s) 3 x 1.5 mm² for stranded cable(s)
Rated current	10 A at 250 V AC 50/60 Hz
Material	Polycarbonate: grid plate Polycarbonate: base Polycarbonate: dolly Polycarbonate: frame Polycarbonate + GF 20 %: actuator
load type	Inductive Resistive Incandescent lamp Fluorescent lamp
Connections – terminals	Brass terminal
Embedding depth	22.3 mm
Width	86 mm
Height	86 mm
Depth	32 mm
Environment
Maximum ambient air temperature for operation	35 °C
Relative humidity	0…95 %
Environmental characteristic	No UV resistant
Operating altitude	2000 m
Standards	GB 16915.1 IS 3854
IP degree of protection	IP20
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.4 cm
Package 1 Width	8.6 cm
Package 1 Length	8.6 cm
Package 1 Weight	70 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	9.5 cm
Package 2 Width	19 cm
Package 2 Length	19.5 cm
Package 2 Weight	700 g
Unit Type of Package 3	CAR
Number of Units in Package 3	60
Package 3 Height	9.5 cm
Package 3 Width	19 cm
Package 3 Length	19.5 cm
Package 3 Weight	4.2 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
